Forward AWS Logs via Lambda Shipper with Terraform

Overview

Our latest AWS integration provides the easiest way to connect with Coralogix. By using a predefined Lambda function, you can seamlessly send AWS logs and events to your Coralogix subscription for detailed analysis, monitoring, and troubleshooting.

This integration guide walks you through completing the predefined Lambda function template using Terraform. You’ll need to provide specific configuration parameters based on the service you want to connect. A reference list for these parameters is provided below.

Requirements

Name	Version
Terraform	>= 0.13.1
AWS	>= 2.23

Providers

Name	Version
AWS	>= 4.15.1
Random	>= 3.1.0

Modules

Name	Version
terraform-aws-modules/lambda/aws	>= 3.3.1

Universal configuration

You need to use an existing Coralogix Send-Your-Data API key to make the connection. Also, make sure your integration is region-specific. You should always deploy the AWS Lambda function in the same AWS region as your resource (e.g. the S3 bucket).

Using a single S3 bucket for multiple integrations

If you're deploying multiple integrations through the same S3 bucket, you'll need to specify parameters for each integration separately using integration_info.

Note

If you already have a Lambda function with an S3 trigger set up, this Terraform deployment will remove the trigger. This applies to the following integration types within the same S3 bucket: S3, CloudTrail, VpcFlow, S3Csv, and CloudFront. To prevent this issue, you can explore alternative deployment methods:

Deploy the integration using CF Quick Create or SAR, as explained in this document.
Migrate your existing integrations to Terraform and use the integration_info variable.

Name	Description	Type	Default	Required
coralogix_region	The Coralogix location region, available options: [`EU1`, `EU2`, `AP1`, `AP2`, `AP3`, `US1`, `US2`, `Custom`]	`string`	n/a	yes
custom_domain	If using a custom domain name for your private cluster, Coralogix will send telemetry from the specified address (e.g. custom.coralogix.com). There is no need to add `ingress.` to the domain.	`string`	n/a	no
integration_type	The AWS service to integrate with Coralogix. Possible values: S3, CloudTrail, VpcFlow, CloudWatch, S3Csv, SNS, SQS, Kinesis, CloudFront, MSK, Kafka, EcrScan.	`string`	`S3`	yes
api_key	The Coralogix Send Your Data - API key validates your authenticity. This value can be a direct Coralogix API key or an AWS secret manager ARN containing the API key.	`string`	n/a	yes
store_api_key_in_secrets_manager	Enable this to store your API key securely. Otherwise, it will remain exposed in plain text as an environment variable in the Lambda function console.	bool	true	no
application_name	The name of your application. For a dynamic value, use `$.my_log.field`. This option is not supported since version `1.1.0` for the source code	string	n\a	yes
subsystem_name	The name of your subsystem. For a dynamic value, use `$.my_log.field` for CloudWatch log group leave empty. This option is not supported since version `1.1.0` for the source code	string	n\a	yes

S3, CloudTrail, VpcFlow, S3Csv configuration

Name	Description	Type	Default	Required
s3_bucket_name	Comma separated list of the names for the S3 bucket to watch.	`string`	n/a	yes
s3_key_prefix	The S3 path prefix to watch.	`string`	n/a	no
s3_key_suffix	The S3 path suffix to watch.	`string`	n/a	no
s3_bucket_kms_arn	The AWS ARN of the KMS key used to encrypt/decrypt objects in the specified S3 bucket. If provided, the Lambda policy will include permissions to decrypt using this key.	`string`	n/a	no
csv_delimiter	A single character to be used as a delimiter when ingesting a CSV file with a header line. This value is applicable when the S3Csv integration type is selected, for example, “,” or ” “.	`string`	n/a	no
custom_csv_header	List seperated by cs delimiter of a new headers for your csv, the variable must be with the same delimiter as the cs_delimiter. For example, if the cs_delimiter is \";\", then the variable vakue should be name;country;age, resulting in the following new headers in Corlaogix: name, country, age	`string`	n/a	no
newline_pattern	A regular expression to detect a new log line for multiline logs, e.g., \n(?=\d{2}-\d{2}\s\d{2}:\d{2}:\d{2}.\d{3}).	`string`	n/a	no
integration_info	A map of integration information. Use this to deploy multiple integrations using the same s3 bucket. See the integration parameters.	`mapping`	n/a	no

Additional parameters for `integration_info`

Name	Description	Type	Default	Required
integration_type	The AWS service to integrate with Coralogix. Possible values: S3, CloudTrail, VpcFlow, S3Csv, CloudFront.	`string`	n/a	yes
api_key	The Coralogix Send Your Data - API key validates your authenticity. This value can be a direct Coralogix API key or an AWS secret mManager ARN containing the API key.	`string`	n/a	yes
store_api_key_in_secrets_manager	Enable this to store your API key securely. Otherwise, it will remain exposed in plain text as an environment variable in the Lambda function console.	bool	true	no
application_name	The name of your application. For dynamic values, refer to Metadata	string	n\a	yes
subsystem_name	The name of your subsystem. For dynamic values, refer to Metadata	string	n\a	yes
lambda_log_retention	The CloudWatch log retention period (in days) for logs generated by the Lambda function.	`number`	5	no
lambda_name	Name of the Lambda function that you want to create.	`string`	n/a	no
s3_key_prefix	The S3 path prefix to watch.	`string`	n/a	no
s3_key_suffix	The S3 path suffix to watch.	`string`	n/a`	no
newline_pattern	A regular expression to detect a new log line for multiline logs, e.g., \n(?=\d{2}-\d{2}\s\d{2}:\d{2}:\d{2}.\d{3}).	`string`	n/a	no

CloudWatch configuration

Name	Description	Type	Default	Required
log_groups	A comma-separated list of CloudWatch log group names to monitor. For example, (log-group1, log-group2, log-group3).	`list(string)`	n/a	yes
log_group_prefix	Instead of creating one permission for each log group in the destination lambda, the code will take the prefix that you set in this parameter and create 1 permission for all of the log groups that match the prefix. For example, if you define `/aws/log/logs`, then the lLambda will create only 1 permission for all of your log groups that start with `/aws/log/logs` instead of 1 permision for each of the log group. Use this parameter when you have more than 50 log groups. Pay attention that you will not see the log groups as a trigger in the Lambda if you use this parameter.	`list(string)`	n/a	no

Name	Description	Type	Default	Required
sns_topic_name	The SNS topic containing the SNS subscription. You need this only when using the SNS integration.	`string`	n/a	yes

SQS configuration

Name	Description	Type	Default	Required
sqs_topic_name	The name of the SQS queue to which you want to subscribe for retrieving messages.	`string`	n/a	yes

Kinesis configuration

Name	Description	Type	Default	Required
kinesis_stream_name	The name of the Kinesis stream to which you want to subscribe for retrieving messages.	`string`	n/a	yes

MSK configuration

Name	Description	Type	Default	Required
msk_cluster_arn	The ARN of the MSK cluster to subscribe to retrieving messages.	`string`	n/a	yes
msk_topic_name	List of The Kafka topic mames used to store records in your Kafka cluster [\"topic-name1\" ,\"topic-name2\"].	`list of strings`	n/a	yes

Kafka configuration

Name	Description	Type	Default	Required
kafka_brokers	Comma-delimited list of Kafka broker to connect to.	`string`	n/a	yes
kafka_topic	The Kafka topic to subscribe to.	`string`	n/a	yes
kafka_subnets_ids	List of Kafka subnets to use when connecting to Kafka.	`list`	n/a	yes
kafka_security_groups	List of Kafka security groups to use when connecting to Kafka.	`list`	n/a	yes

Generic configuration (optional)

Name	Description	Type	Default	Required
custom_metadata	Custom metadata to be added to the log message in the comma-separated format. Options are: `key1=value1,key2=value2`	`string`	n/a	no
add_metadata	Custom metadata to be added to the log message in the comma-separated format. The S3 options are: `bucket_name`,`key_name`. For CloudWatch `stream_name`	`string`	n/a	no
lambda_name	The name the Lambda function to create.	`string`	n/a	no
blocking_pattern	A regular expression to identify lines excluded from being sent to Coralogix. For example, use `MainActivity.java:\d{3}` to match log lines with MainActivity followed by exactly three digits.	`string`	n/a	no
sampling_rate	A message rate, such as 1 out of every N logs. For example, if your value is 10, a message will be sent for every 10th log.	`number`	`1`	no
notification_email	A failure notification to be sent to the email address.	`string`	n/a	no
custom_s3_bucket	The name of an existing S3 bucket in your region, in which the Lambda zip code will be uploaded to.	`string`	n/a	no
govcloud_deployment	Enable if you deploy the integration in govcloud	`bool`	false	no

Custom S3 bucket

Use the custom_s3_bucket variable only when deploying the integration in an AWS region where CX does not provide a public bucket (e.g., GovCloud). When using this variable, you must create an S3 bucket in the desired region for the integration. After that, pass the bucket name as custom_s3_bucket. The module will download the integration file to your local workspace, upload it to the custom_s3_bucket, and then remove the file from your local workspace once the process is complete.

When using this variable you will need to create an S3 bucket in the region where you want to run the integration. Then, pass this bucket name as custom_s3_bucket. The module will download the integration file to your local workspace, and then upload these files to the custom_s3_bucket. At the end, remove the file from your local workspace once the process is complete.

Lambda configuration (optional)

Name	Description	Type	Default	Required
memory_size	The memory size limit for the Lambda function in megabytes.	`number`	`1024`	no
timeout	The timeout limit for the Lambda function in seconds.	`number`	`300`	no
tags	The tag map to all resources.	`map(string)`	n/a	no
lambda_log_retention	The CloudWatch log retention period (in days) for logs generated by the Lambda function.	`number`	5	no
log_level	The log level for the Lambda function. Possible values: INFO, WARN, ERROR, DEBUG.	`string`	INFO	no
cpu_arch	Lambda function CPU architecture: arm64 or x86_64.	`string`	arm64	no
runtime	Lambda function runtime. For example, 'provided.al2023', 'provided.al2'.	`string`	provided.al2023	no
reserved_concurrent_executions	The number of concurrent executions reserved for the function. Leave empty to let Lambda use unreserved account concurrency.	`number`	n/a	no
execution_role_name	The ARN of a user defined role be used as the execution role for the Lambda function.	`string`	n/a	no
lambda_assume_role_arn	A role that the Lambda will assume. Leave empty to use the default permissions. Note that if this parameter is used, all S3 and ECR API calls from the Lambda will be made with the permissions of the assumed role.	`string`	n/a	no
source_code_version	The version of the source code that the Lambda will use. Must be in `x.x.x` format. The oldest supported version is `1.0.8`. For more information about each version changes, see Changelog. By default, the Lambda will use the latest version.	`string`	n/a	no

Metadata

The metadata features decribed below are only available in coralogix-aws-shipper v1.1.0 and later. The add_metadata parameter allows you to add metadata to the log message. The metadata is added to the log message as a JSON object. The metadata is specific to the integration type. For example, for S3, the metadata is s3.object.key and s3.bucket. For CloudWatch, the metadata is cw.log.group and cw.log.stream. See the table below for full metadata list.

Integration Type	Metadata Key	Description
S3	s3.bucket	The name of the S3 bucket
S3	s3.object.key	The key/path of the S3 object
CloudWatch	cw.log.group	The name of the CloudWatch log group
CloudWatch	cw.log.stream	The name of the CloudWatch log stream
Cloudwatch	cw.owner	The owner of the log group
Kafka	kafka.topic	The name of the Kafka topic
MSK	kafka.topic	The name of the Kafka topic
Kinesis	kinesis.event.id	The Kinesis event ID
Kinesis	kinesis.event.name	The Kinesis event name
kinesis	kinesis.event.source	The Kinesis event source
kinesis	kinesis.event.source_arn	The Kinesis event source ARN
Sqs	sqs.event.source	The SQS event source/queue
Sqs	sqs.event.id	The SQS event ID
Ecr	ecr.scan.id	The EXR scan ID
Ecr	ecr.scan.source	The ECR scan source

Note

The metadata is not added by default. You must specify the metadata keys in the add_metadata parameter. For example, to add the bucket name and key name to the log message, set the add_metadata parameter to s3.object.key,s3.bucket. Some metadata keys will overlap as some integrations share the same metadata. For example, both Kafka and MSK have the same metadata key kafka.topic or both Kinesis and Cloudwatch metadata will be added in cases where a Cloudwatch log stream is being ingested from a Kinesis stream.

Dynamic subsystem or application name

As of v1.1.0 for the source code, you can use dynamic values for the application and subsystem name parameters based on the internal metadata defined above. To do accomplish this, use the following syntax:

{{ metadata.key | r'regex' }}

For example, to use the bucket name as the subsystem name, set the subsystem_name parameter to:

{{ s3.bucket }}

If to use the log group name as the application name, set the application_name parameter to:

{{ cw.log.group }}

To use a part of the metadata value, use a regular expression to extract the desired part. For example, if we have an s3.object.key value of AWSLogs/112322232/ELB1/elb.log and we want to extract the last part of the key as the subsystem name, we would set the subsystem_name parameter to:

{{ s3.object.key | r'AWSLogs\\/.+\\/(.*)$' }}

This would result in a SubsystemName value of elb.log as this is the part of the regex captured by the group (.*).

Important

The regex must be a valid regex pattern.
The regex must define a capture group for part of the string you want to use as the value
The metadata key must exist in the list defined above and be a part of the integration type that is deployed.

Dynamic values are only supported for the application_name and subsystem_name parameters, the custom_metadata parameter is not supported.

To use a json key value as the application name, set the application_name parameter to:

{{ $.json_key_path }}

If you are sending this json log to the shipper:

"json_log" : {
  {
    "application_key": "application_value"
  }
}

Set the application_name parameter to:

{{ $.json_log.application_key }}

Then, the application name value will be application_value.

VPC configuration (optional)

Name	Description	Type	Default	Required
vpc_subnet_ids	The ID of the subnet where the integration will be deployed.	`list(string)`	n/a	no
security_group_ids	The ID of the security group where the integration will be deployed.	`list(string)`	n/a	no
security_create_endpoint	Set to `true` if you store your ApiKey in a secret (you can have only one of this endpoints per region)	`bool`	false	no

DLQ

A Dead Letter Queue (DLQ) is a queue where messages are sent if they cannot be processed by the Lambda function. This is useful for debugging and monitoring.

To enable the DLQ, provide the required parameters listed below.

Parameter	Description	Default Value	Required
enable_dlq	Enable the Dead Letter Queue for the Lambda function.	false	yes
dlq_s3_bucket	An S3 bucket used to store all failure events that have exhausted retries.		yes
dlq_retry_limit	The number of times a failed event to be retried before being saved in S3	3	yes
dlq_retry_delay	The delay in seconds between retries of failed events	900	yes

AWS PrivateLink

If you want to bypass using the public internet, you can use AWS PrivateLink to facilitate secure connections between your VPCs and AWS services. This option is available under VPC Configuration. For additional instructions on AWS PrivateLink, follow our dedicated tutorial.

Cloudwatch metrics streaming via PrivateLink (beta)

As of Lambda source code version v1.3.0 and Terraform module version v2.6.0, the Coralogix AWS Shipper supports streaming Cloudwatch metrics to Coralogix via Firehose over a PrivateLink.

This workflow is designed for scenarios where you need to stream metrics from a CloudWatch metrics stream to Coralogix via a PrivateLink endpoint.

Why to use this workflow

AWS Firehose does not support PrivateLink endpoints as a destination because Firehose cannot be connected to a VPC, which is required to reach a PrivateLink endpoint. To overcome this limitation, the Coralogix AWS Shipper acts as a transform function. It is attached to a Firehose instance that receives metrics from the CloudWatch metrics stream and forwards them to Coralogix over a PrivateLink.

When to use this workflow

This workflow is designed to bypass the limitations of using Firehose with the Coralogix PrivateLink endpoint. If PrivateLink is not required, we recommend using the default Firehose integration for CloudWatch Stream Metrics, available here.

How does it work?

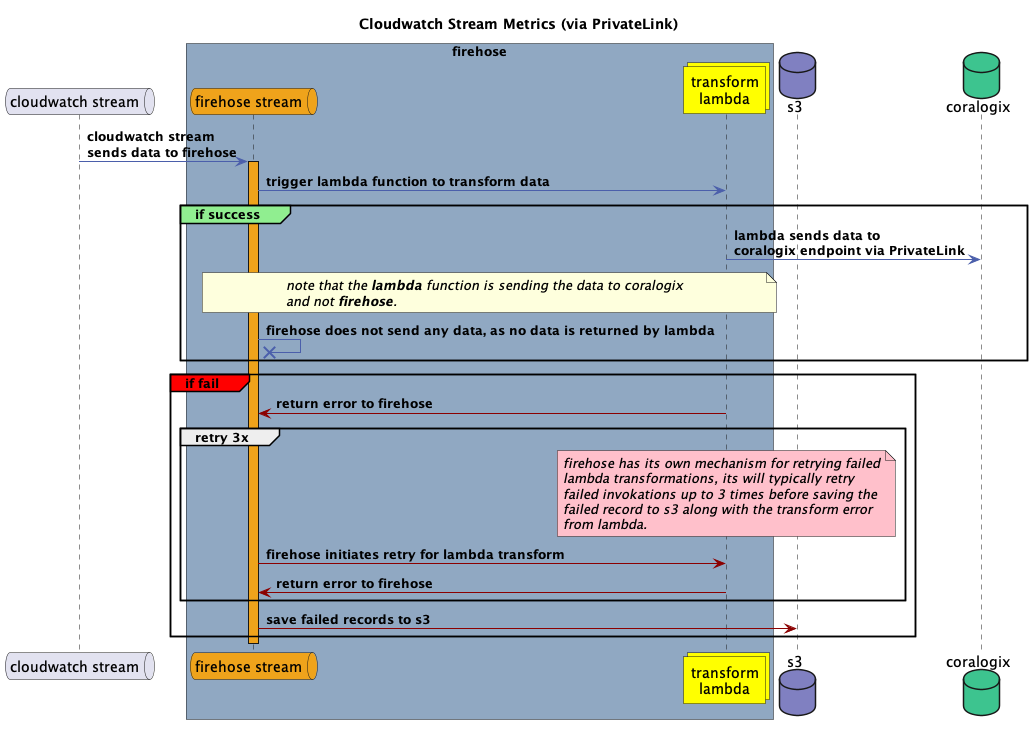

Cloudwatch stream via PrivateLink Workflow

To enable CloudWatch metrics streaming via Firehose (PrivateLink), you must provide the necessary parameters listed below.

Parameter	Description	Default Value	Required
telemetry_mode	Specify the telemetry collection modes, supported values (`metrics`, `logs`). Note that this value must be set to `metrics` for the Cloudwatch metric stream workflow	logs.
api_key	The Coralogix Send Your Data - API key validates your authenticity. This value can be a direct Coralogix API key or an AWS secret manager ARN containing the API key.	`string`	n/a
application_name	The name of the application for which the integration is configured. Metadata specifies dynamic value retrieval options.	string	n\a
subsystem_name	The name of your subsystem. For a dynamic value, refer to the Metadata section. For CloudWatch, leave this field empty to use the log group name.	string	n\a
coralogix_region	The Coralogix location region, possible options are [`EU1`, `EU2`, `AP1`, `AP2`, `AP3`, `US1`, `US2`, `Custom`]	`string`	n/a
s3_bucket_name	The S3 bucket to be used to store records that have failed processing.
subnet_ids	The ID of the subnet for the integration deployment.	`list(string)`	n/a
security_group_ids	The ID of the security group for the integration deployment.	`list(string)`	n/a
include_metric_stream_filter	List of inclusive metric filters. If you specify this parameter, the stream sends only the conditional metric names from the specified metric namespaces. Leave empty to send all metrics	`llist(object({namespace=string, metric_names=list(string)})`	n/a

The include_metric_stream_filter example:

module "coralogix_aws_shipper" "coralogix_firehose_metrics_private_link" {
  source = "coralogix/aws-shipper/coralogix"
  telemetry_mode = "metrics"
  api_key = <your private key>
  application_name = "application_name"
  subsystem_name = "subsystem_name"
  coralogix_region = <coralogix region>
  s3_bucket_name = <s3 bucket name>
  subnet_ids = <subnet ids>
  security_group_ids = <security group ids>

  include_metric_stream_filter = [
    {
      namespace    = "AWS/EC2"
      metric_names = ["CPUUtilization", "NetworkOut"]
    },
    {
      namespace    = "AWS/S3"
      metric_names = ["BucketSizeBytes"]
    },
  ]
}

Outputs

Name	Description
lambda_function_arn	The ARN of the Lambda function.
lambda_function_name	The name of the Lambda function.
lambda_role_arn	The ARN of the IAM role created for the Lambda function.
lambda_role_name	The name of the IAM role created for the Lambda function.
