Migrate From OpenSearch to Coralogix Custom Dashboards

Coralogix Custom Dashboards provides you with the ideal dashboard experience, allowing you to create unlimited, personalized custom dashboards using our five visualizations: Data Table, Line Chart, Gauge, Pie Chart and Bar Chart. Each visualization - supporting logs, metrics and spans - can be used to define and create a dashboard catered to your specific observability needs.

The following tutorial demonstrates how to migrate from OpenSearch to Coralogix Custom Dashboards. Using a series of examples, it illustrates which OpenSearch dashboard parameters correlate with those in Coralogix Custom Dashboards.

Data Tables

Migrate a data table from your OpenSearch dashboard to your Coralogix Custom dashboard.

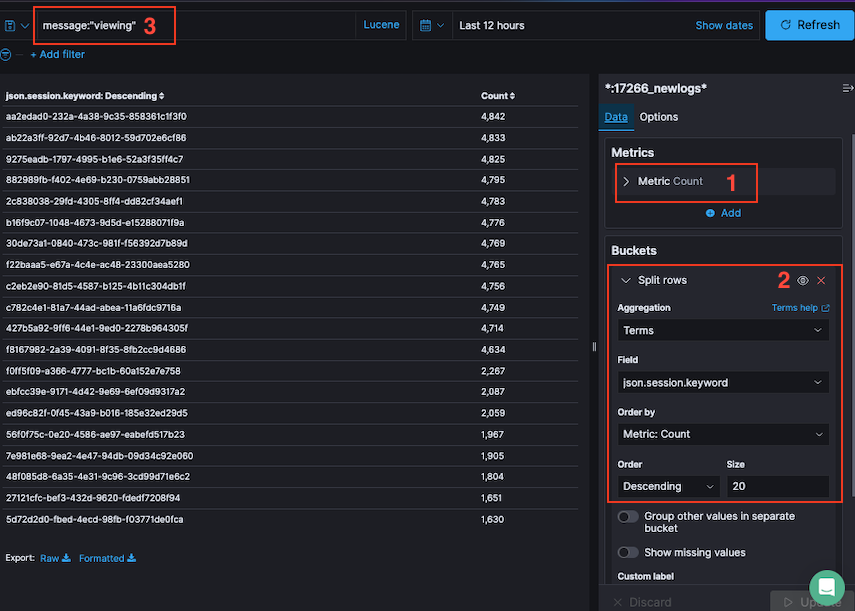

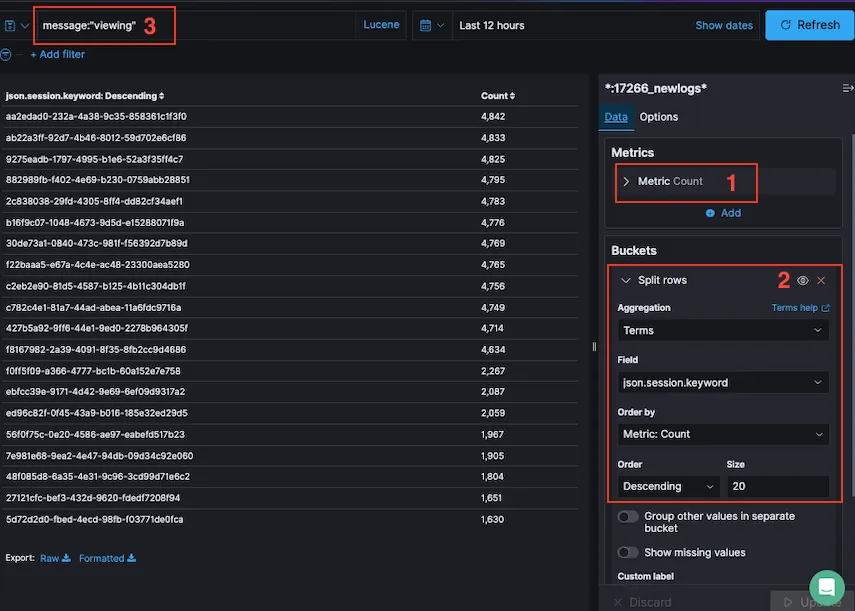

OpenSearch Dashboard

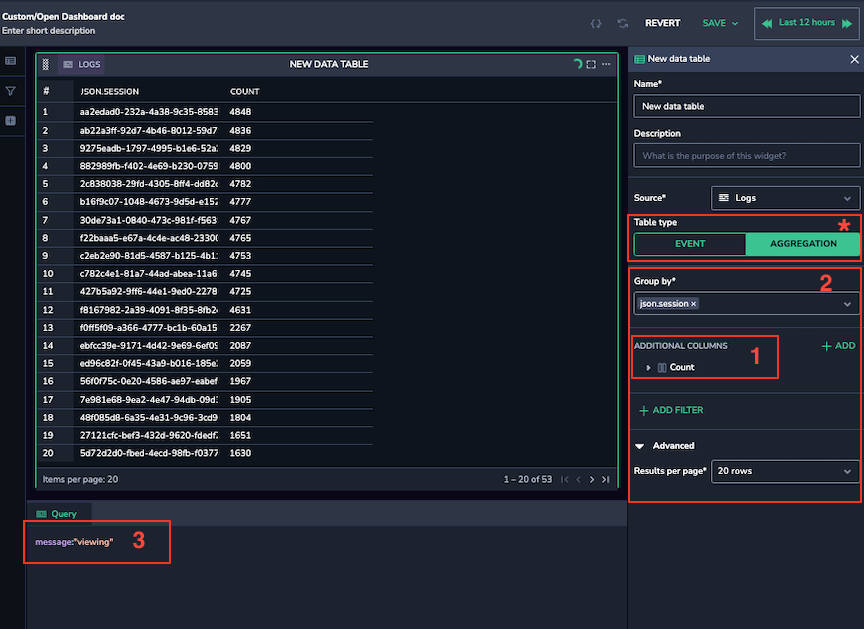

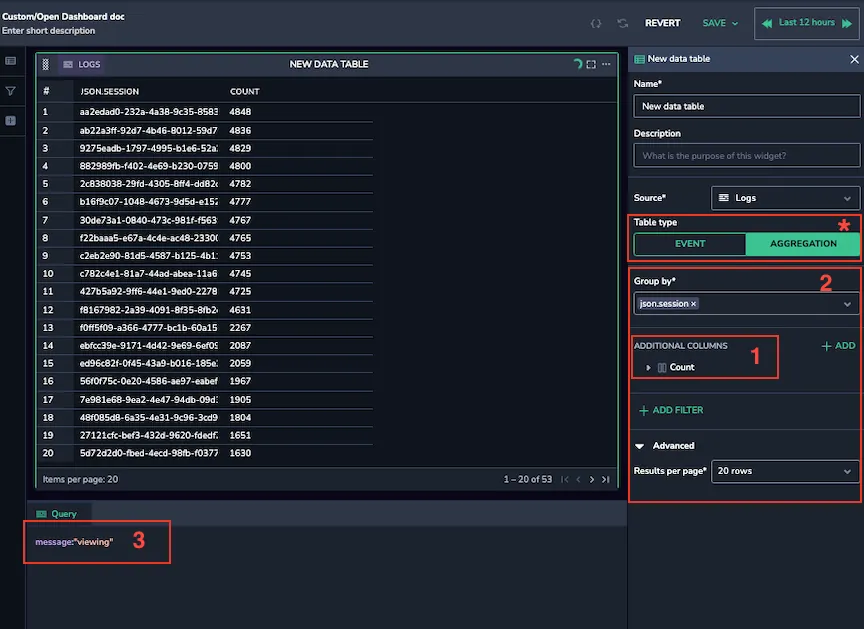

Custom Dashboards

Migrate Parameters

For each section (1, 2, 3, or *), migrate the parameters from your OpenSearch dashboard to your Coralogix Custom dashboard.

Section	OpenSearch Dashboard Parameter	Coralogix Custom Dashboard Parameter	Notes
1	Aggregation	Aggregation
2	Split rows	Group-by
3	Lucene query	Query bar
*	---	Data Table: Event or Aggregation	Data-table has two options:
- Event: log grid
- Aggregation: data table

For example, transfer the aggregation value in Section 1 of your OpenSearch Dashboard to the aggregation parameter value in Section 1 of your Coralogix Custom dashboard.

For additional information on data tables, see the full tutorial on Data Tables in Custom Dashboards.

Line Charts

Migrate a line chart from your OpenSearch dashboard to your Coralogix custom dashboard.

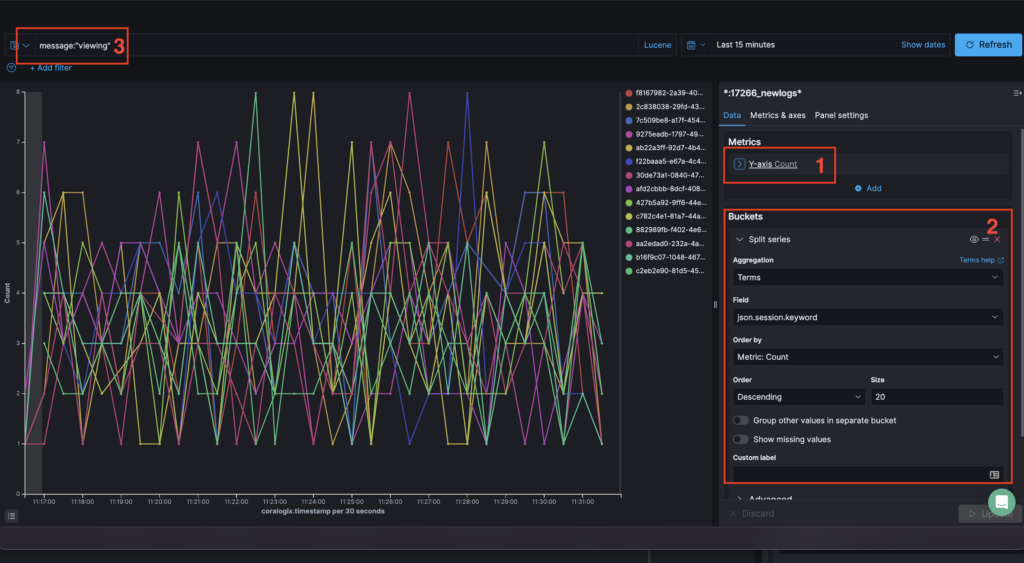

OpenSearch Dashboard

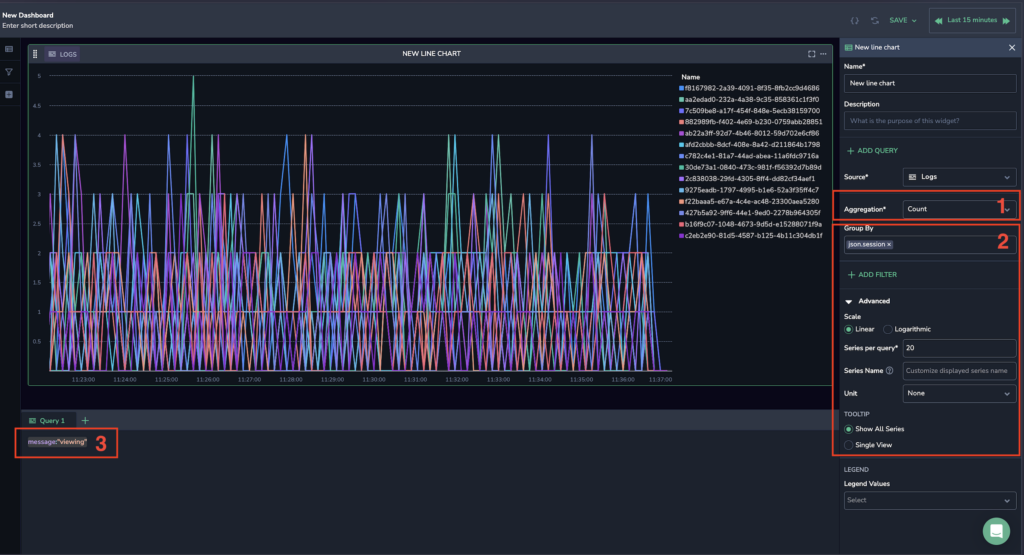

Custom Dashboards

Migrate Parameters

For each section (1, 2, or 3), migrate the parameters from your OpenSearch dashboard to your Coralogix Custom dashboard.

Section	OpenSearch Dashboard Parameter	Coralogix Custom Dashboard Parameter
1	Y-axis count	Aggregation
2	Split-series	Group by
2	Size	Series per query
3	Lucene query	Query bar

For example, transfer the Y-axis count values in Section 1 of your OpenSearch Dashboard to the aggregation parameter value in Section 1 of your Coralogix Custom dashboard.

For additional information on line charts, see the full tutorial on Line Charts in Custom Dashboards.

Pie Charts

Migrate a pie chart from your OpenSearch dashboard to your Coralogix Custom dashboard.

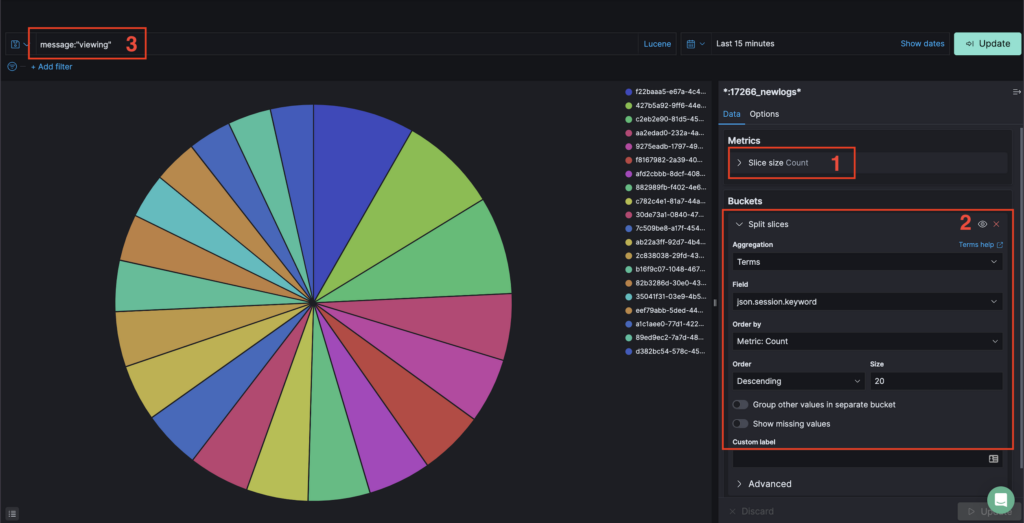

OpenSearch Dashboard

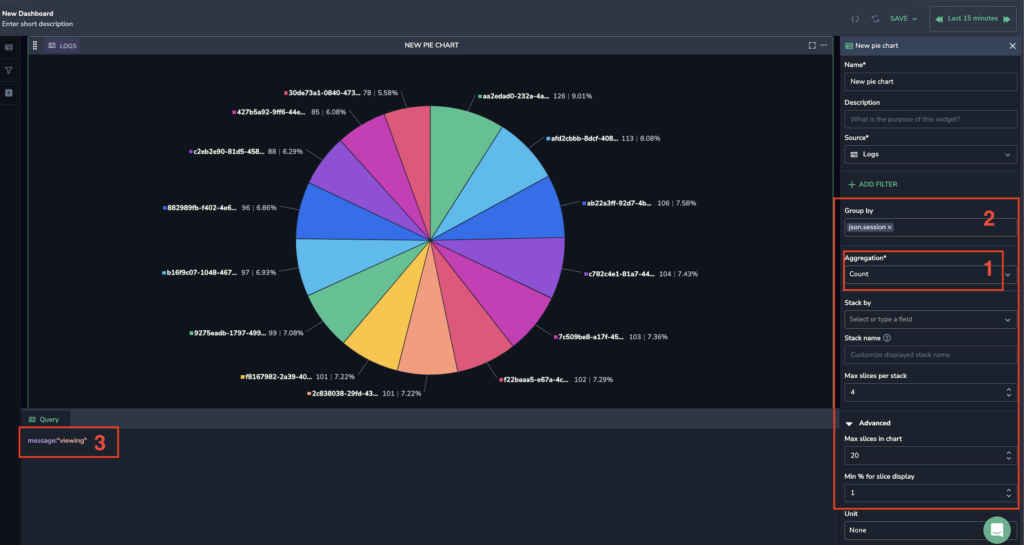

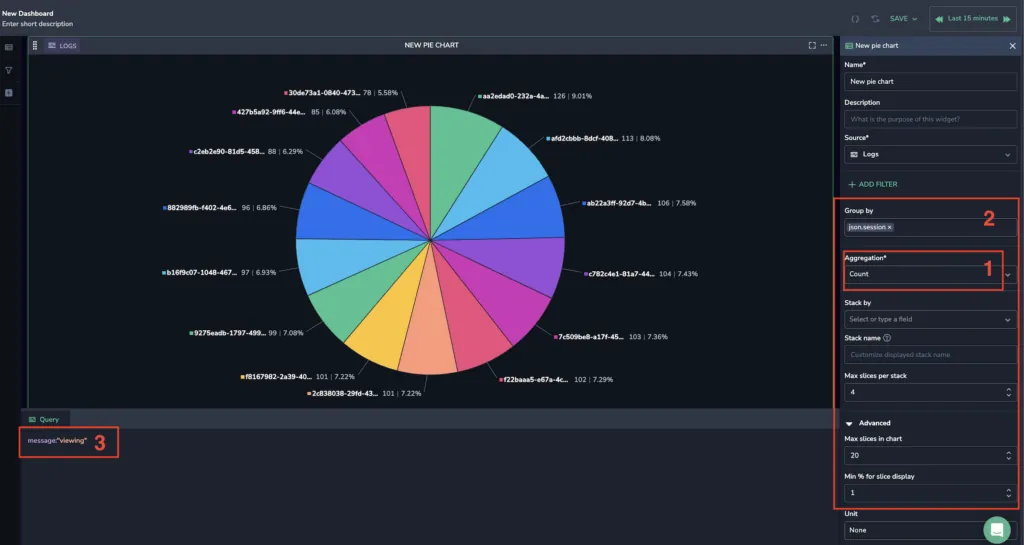

Custom Dashboards

Migrate Parameters

For each section (1, 2, or 3), migrate the parameters from your OpenSearch dashboard to your Coralogix Custom dashboard.

Section	OpenSearch Dashboard Parameter	Coralogix Custom Dashboard Parameter
1	Slice size	Aggregation
2	Split-series field	Group by
2	Split-series (second level)	Stack by
2	Size	Max slices in chart (under Advanced)
3	Lucene query	Query bar

For example, transfer the slice size value in Section 1 of your OpenSearch dashboard to the aggregation parameter value in Section 1 of your Coralogix Custom dashboard.

For additional information on pie charts, see the full tutorial on Pie Charts in Custom Dashboards.

Bar Charts

Migrate a bar chart from your OpenSearch Dashboard to your Coralogix Custom dashboard.

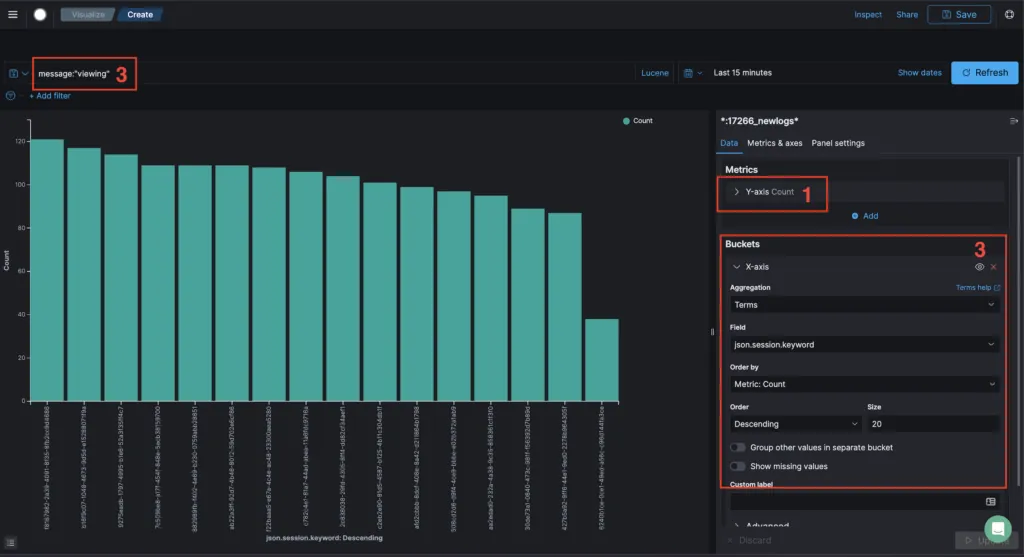

OpenSearch Dashboard

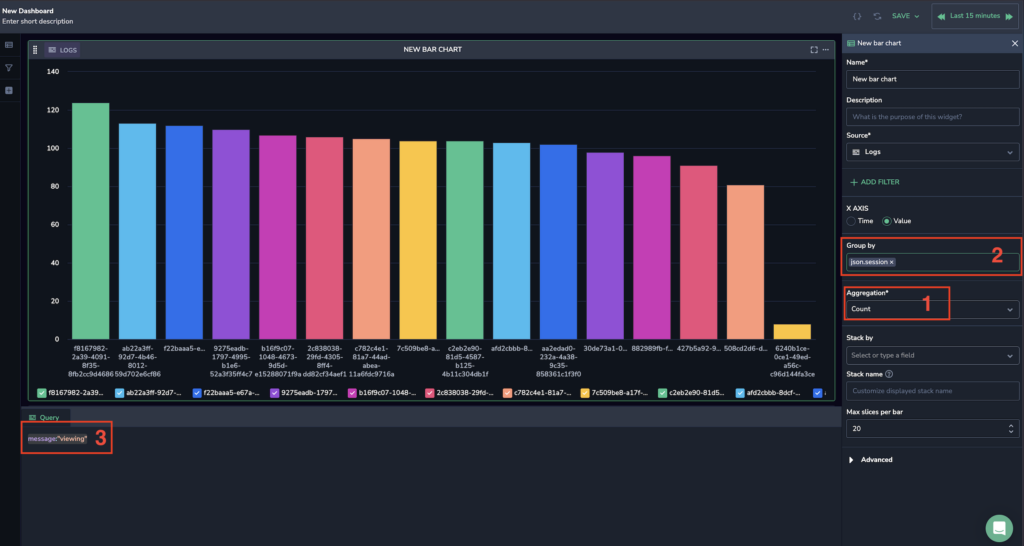

Custom Dashboards

Migrate Parameters

For each section (1, 2, or 3), migrate the parameters from your OpenSearch dashboard to your Coralogix Custom dashboard.

Section	OpenSearch Dashboard Parameter	Coralogix Custom Dashboard Parameter	Notes
1	Y-axis count	Aggregation
2	Split-series field	Group by	If you apply the X-axis in OpenSearch Dashboard with a date histogram, you should choose X-axis as Time in Custom Dashboards (above the Group by field).
2	Size	Max bars per chart (under Advanced)
2	Split-series (second level)	Stack by
3	Lucene query	Query bar

For example, transfer the Y-axis Count value in Section 1 of your OpenSearch dashboard to the aggregation parameter value in Section 1 of your Coralogix Custom dashboard.

For additional information on bar charts, see the full tutorial on Bar Charts in Custom Dashboards.

Gauges

Migrate a gauge from your OpenSearch dashboard to your Coralogix Custom dashboard.

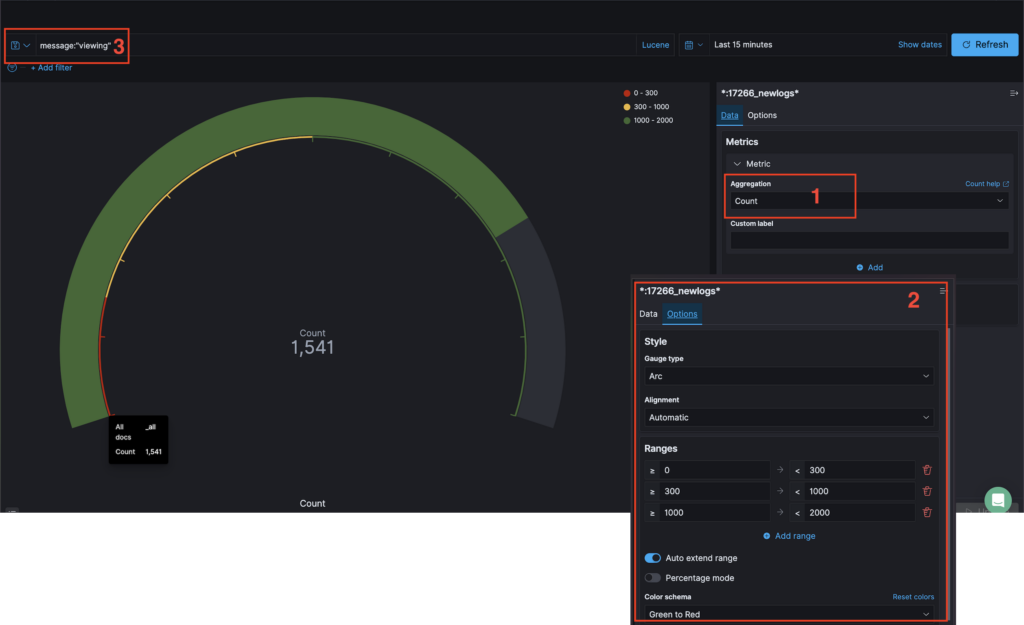

OpenDashboard

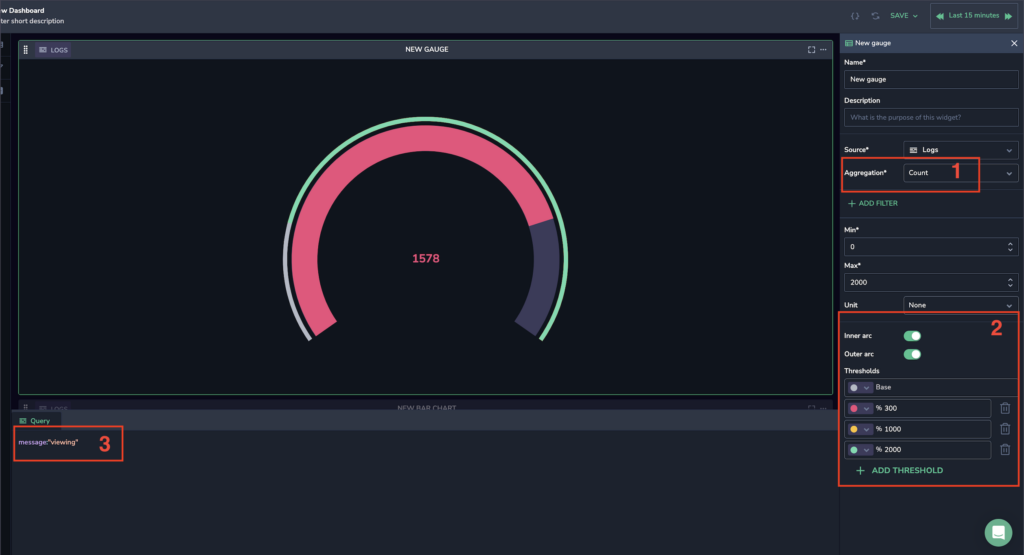

CustomDashboards

Migrate Parameters

For each section (1, 2, or 3), migrate the parameters from your OpenSearch dashboard to your Coralogix Custom dashboard.

Section	OpenSearch Dashboard Parameter	Coralogix Custom Dashboard Parameter
1	Aggregation	Aggregation
2	Gauge Ranges	Thresholds
2	Arc settings	Arc settings
3	Lucene query	Query bar

For example, transfer the aggregation value in Section 1 of your OpenSearch Dashboard to the aggregation parameter value in Section 1 of your Coralogix Custom dashboard.

For additional information on gauges, see the full tutorial on Gauges in Custom Dashboards.
