DataPrime Widget

Leverage the capabilities of DataPrime queries in Custom Dashboards using the DataPrime Widget.

Overview

Coralogix's innovative DataPrime language empowers you to query your data and transform it through various operations tailored to your specific needs, such as calculation, extraction, and aggregation.

In Custom Dashboards, the DataPrime Widget enables you to harness the capabilities of DataPrime queries. As your query evolves, this feature automatically generates optimal visualizations to display your data and suggests modifying your query for additional visualizations.

Create a DataPrime Widget

1

In a custom dashboard, drag and drop the DataPrime Widget from your left-hand sidebar to get started.

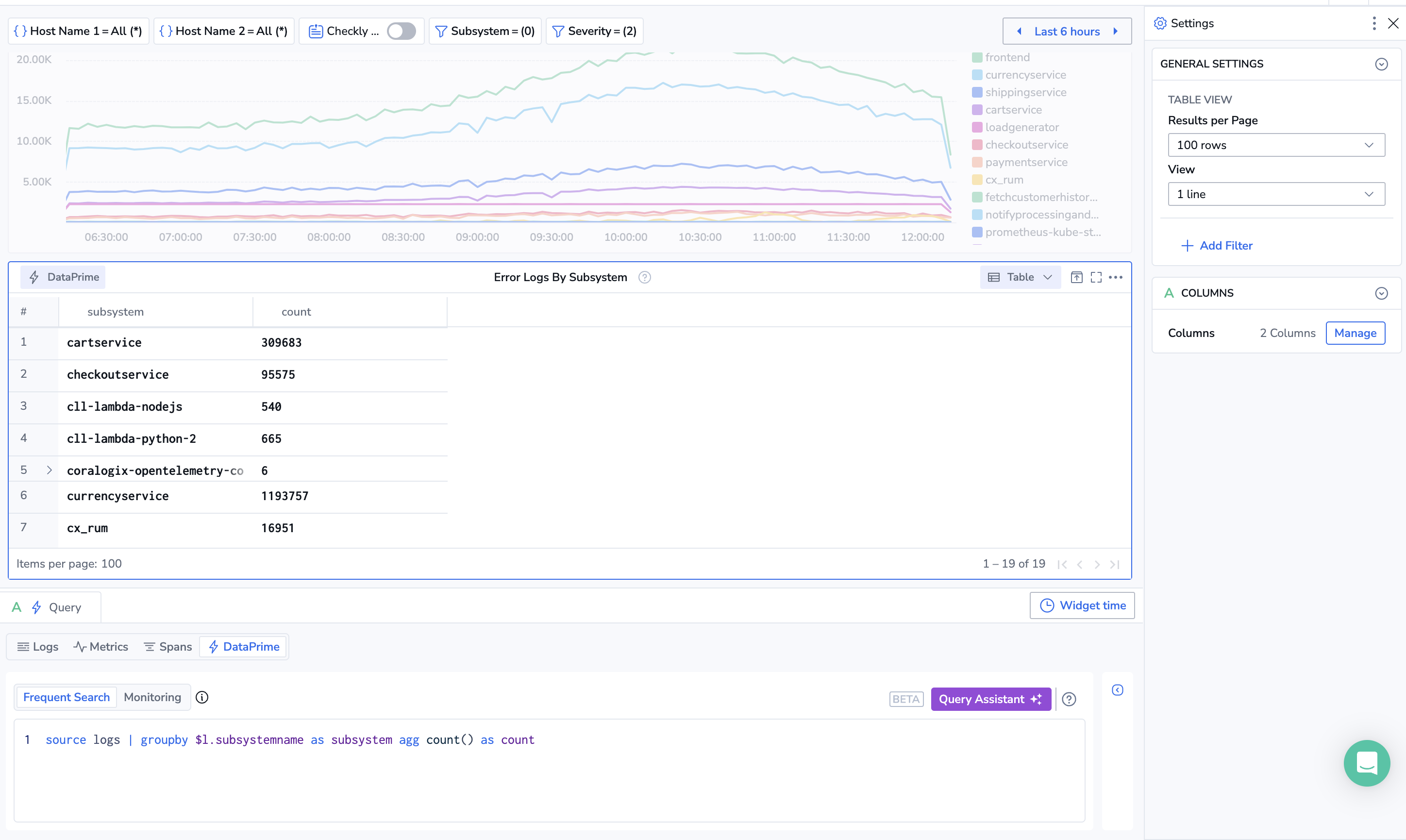

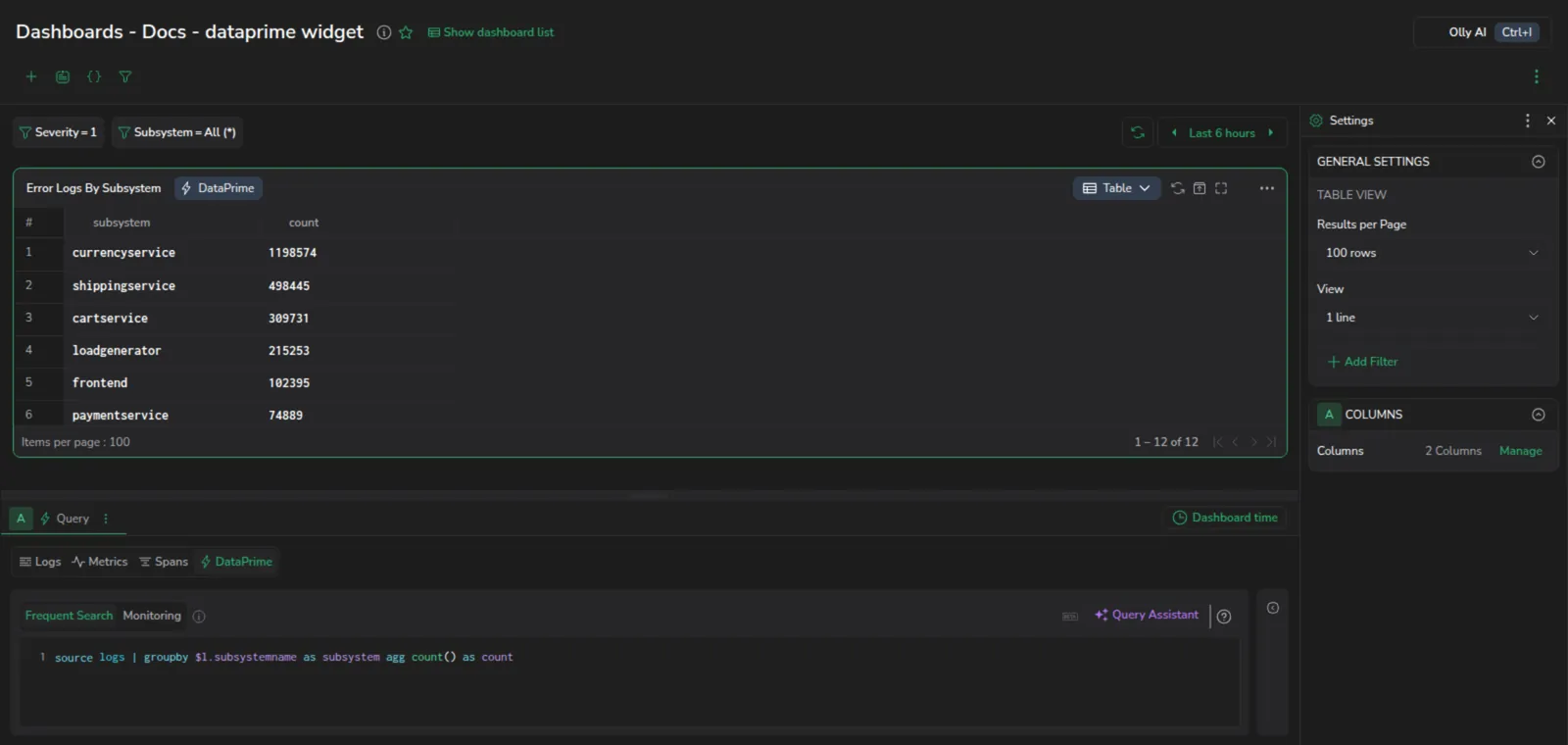

A data table will appear in the top panel of the widget, while the DataPrime query will appear in the bottom panel.

2

Construct your DataPrime query with the Query Builder. As your query evolves, select from a list of visualizations supporting your query results - horizontal or vertical bar chart, line chart, gauge, or pie chart - in the right-hand column. Hover over faded visualizations to receive suggestions on modifying your query, enabling you to achieve the desired visualization.

3

Configure the widget settings in the right-hand panel.

4

To save your dashboard with the new widget, click SAVE in the upper right-hand corner.

At any stage, view the raw data of the query by clicking RAW DATA on the toolbar of the query pane.
