AWS Resource Enrichment

Coralogix now offers AWS Resource Enrichment, allowing you to enrich your logs with tags from Amazon Web Services (AWS) EC2 instances. Use this feature to connect your business and operation metadata from AWS and gain greater insight into your data.

Overview

The feature enriches every log containing the following fields with metadata.

Sample Otel Log Before Enrichment

{
	resource:{
		attributes:{
			cloud.availability_zone:us-east-1b
			cloud.platform:aws_ec2
			cloud.provider:aws
			cloud.region:us-east-1
			ec2_instance_id:i-0c352ce4c433c58a5
			host.image.id:ami-051f7e7f6c2f40dc1
			host.name:ip-172-31-37-204.ec2.internal
			host.type:t2.micro
		}
	}
	scope:{
		attributes:{}
	}
	resourceSchemaUrl:<https://opentelemetry.io/schemas/1.6.1>
		logRecord:{
			attributes:{
				log.file.name:log2.log
				log.file.path:log2.log
			}
		body:{
			account_id:035955823196
			application_name:my application test
			ec2_instance_type:t2.micro
			ec2_region:us-east-1
			hosename:ip-172-31-37-204.ec2.internal
			image_id:ami-051f7e7f6c2f40dc1
			kubernetes:{
				container_name:service-0
				docker_id:12345186e060681175942786de75a102c679f13c3f0fb330231bdd94c5570e2
				labels:{
					app.kubernetes.io\\/managed-by:Helm
					statefulset.kubernetes.io\\/pod-name:service-0
				}
				namespace_name:default
				pod_id:123456-aefb-456e-b315-77b014de9d5b
				pod_name:service-0
				}
			log:[INFO] 2022-11-15T12:55:36,768 kafka.streams.processor.internals.StateDirectory service-0 stream-thread [categorization-0-CleanupThread] Deleting obsolete state directory 0_2 for task 0_2 as 32827574178ms has elapsed (cleanup delay is 600000ms).
			platform:aws_ec2
			stream:stdout
			time:2022-11-15T12:55:36.768697532Z
		}
	observedTimeUnixNano:1694069570457198600
	}
}

AWS Enrichment

Sample Otel Log After Enrichment

{
	resource:{
		attributes:{
			ec2_instance_id_aws:{ ##enrichment part
				companyId:32757
				resourceId:i-0c352ce4c433c58a5
				resourceType:aws:ec2:instance
				tags:{
					tag_a:a
					tag_b:b
					}
			}
			cloud.availability_zone:us-east-1b
			cloud.platform:aws_ec2
			cloud.provider:aws
			cloud.region:us-east-1
			ec2_instance_id:i-01s32s14p423a98a5
			host.image.id:ami-051f7e7f6c2f40dc1
			host.name:ip-172-62-93-414.ec2.internal
			host.type:t2.micro
		}
	}
	scope:{
		attributes:{}
	}
	resourceSchemaUrl:<https://opentelemetry.io/schemas/1.6.1>
		logRecord:{
			attributes:{
				log.file.name:log.log
				log.file.path:log.log
			}
		body:{
			kubernetes:{
				container_name:service-0
				docker_id:12345186e060681175942786de75a102c679f13c3f0fb330231bdd94c5570e2
				labels:{
					app.kubernetes.io\\/managed-by:Helm
					statefulset.kubernetes.io\\/pod-name:service-0
				}
				namespace_name:default
				pod_id:123456-aefb-456e-b315-77b014de9d5b
				pod_name:service-0
				}
			log:[INFO] 2022-11-15T12:55:36,768 kafka.streams.processor.internals.StateDirectory service-0 stream-thread [categorization-0-CleanupThread] Deleting obsolete state directory 0_2 for task 0_2 as 32827574178ms has elapsed (cleanup delay is 600000ms).
			platform:aws_ec2
			stream:stdout
			time:2022-11-15T12:55:36.768697532Z
		}
	observedTimeUnixNano:1694069570457198600
	}
}

Prerequisites

• Coralogix account set up in the domain corresponding to the region where your data is stored
• Coralogix Send-Your-Data API key

Setup

Installation & Configuration

We strongly recommend installing and configuring with OpenTelemetry. The default example below uses the configuration for OpenTelemetry.

STEP 1. Ensure your logs contain a key with EC2 instance ID value:

STEP 2. Add the resourcedetection and transform processors, enable the desired attributes, and add it to your config file. FluentD metadata labels and Fluent Bit metadata labels are configured differently.

You must enable host.id for the enrichment to work.

OpenTelemetry Example

processors:
  resourcedetection:
    detectors: [ec2]
    override: true
    ec2:
      resource_attributes:
        host.id:
          enabled: true
        host.name:
          enabled: true
        host.image.id:
          enabled: true
        host.type:
          enabled: true
        cloud.region:
          enabled: true
        cloud.account.id:
          enabled: true
        cloud.availability_zone:
          enabled: true
  transform:
    error_mode: ignore
    log_statements:
      - context: log
        statements:
          - set(resource.attributes["ec2_instance_id"],resource.attributes["host.id"])
          - delete_key(resource.attributes, "host.id")

Fluent Bit Example

STEP 1. Add the AWS filter with the desired additional labels.

[FILTER]
        Name aws
        Match *
        ec2_instance_type true
        account_id true
        hostname true

STEP 2. Specify the desired AWS metadata labels under the nested filter as part of the nest operation defining root fields.

[FILTER]
        Name        nest
        Match       kube.*
        Operation   nest
        Wildcard    kubernetes
        Wildcard    account_id
        Wildcard    hostname
        Wildcard    az
        Wildcard    ec2_instance_type
        Wildcard    ec2_instance_id
        Wildcard    log
        Wildcard    log_obj
        Wildcard    stream
        Wildcard    time
        Nest_under  json

AWS Lambda Deployment

STEP 1. Deploy the AWS lambda function running in your AWS account. The platform collects logs from a chosen EC2 instance in your AWS account and sends them to Coralogix, enriching them with tags associated with your instance.

STEP 2. Fill in the Application settings fields.

• Input the Coralogix domain within which your account has been created in CoralogixRegion.
• Input your Coralogix Send-Your-Data API key in ApiKey.
• Do not change the default settings for the FunctionMemorySize and FunctionTimeout.

STEP 3. Deploy your application to collect tags. It will collect tags every 10 minutes and send them to Coralogix.

AWS Enrichment

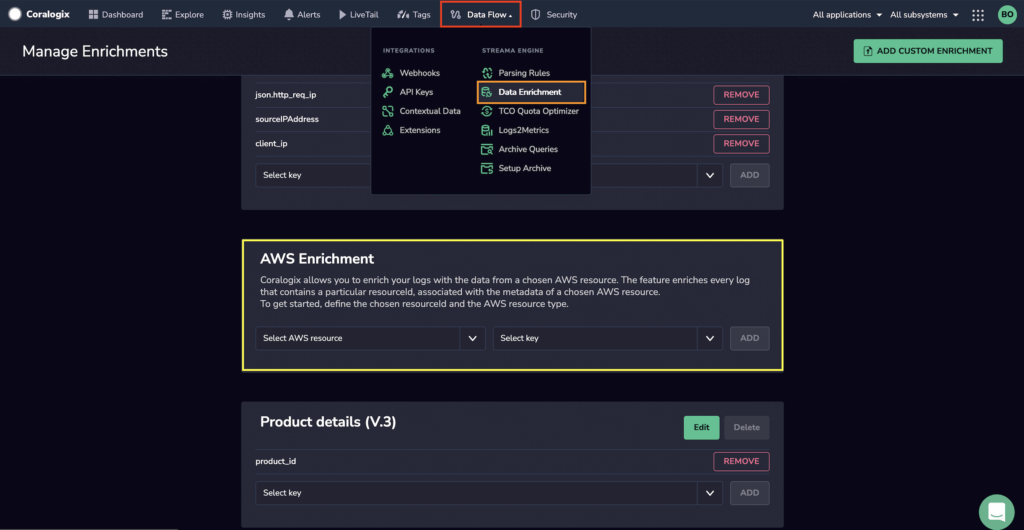

STEP 1. From your Coralogix toolbar, navigate to Data Flow > Data Enrichment. Scroll down the page to view the AWS Enrichment Option.

STEP 2. Select the chosen AWS resource type.

STEP 3. Select the key with your EC2 instance ID.

Note: If you have modified the default option, you may have a different key.

STEP 4. Add the enrichment.

STEP 5. Logs associated with the chosen AWS resource should now appear enriched with AWS tags in your dashboard. To view them, navigate to Explore > Logs or to LiveTail.

Limitations

AWS Resource Enrichment feature grants the following:

• Active resources (existing in the last 24h) / Coralogix team: 100,000
• 50 tags/resources (equal to AWS limits)
• Tag key length <= 127 (equal to AWS limits)
• Tag value length <= 255 (equal to AWS limits)
