Coralogix supports integration with Bitbucket webhooks, which can be used to inform Coralogix when a new build has been issued.

API endpoint

Choose the https://api./api/v1/external/bitbucket endpoint that corresponds to your Coralogix domain using the domain selector at the top of the page.

Configuration

1. Log into Bitbucket using your user credentials.

2. Click your desired Repository to select it.

3. Click "Repository settings" on the left.

4. Under General \ Repository details, click "Webhooks".

5. Click "Add webhook".

6. Add a Title (for example: "Coralogix builds").

7. In the URL box, enter the https://api./api/v1/external/bitbucket endpoint that corresponds to your Coralogix domain.

URL Parameters

• API endpoint

• To use this API you need to create a personal or team API key. It’s recommended to use permission presets, as they are automatically updated with all relevant permissions. Alternatively, you can manually add individual permissions.

  Preset	Action	Description
  CICDIntegration	VERSION-BENCHMARK-TAGS:READ VERSION-BENCHMARKS-REPORTS:READ VERSION-BENCHMARK-TAGS:UPDATE	View Version Benchmark Tags View Version Benchmark Reports Modify Version Benchmark Tags

• Application Name:

  • Enter your desired Application name. Please use a name corresponding to your logs "Application" name.

• Subsystem Name:

  • Enter your desired Subsystem name. Please use a name corresponding to your logs "Subsystem" name.

  • You can specify more than 1 Subsystem name, separated by a commas.

• Tag Name

URL Example

https://api.eu2.coralogix.com/api/v1/external/bitbucket/<cx_api_key>?application=bitbucket&subsystem=build-tag-test&name=bitbucket-tag-test

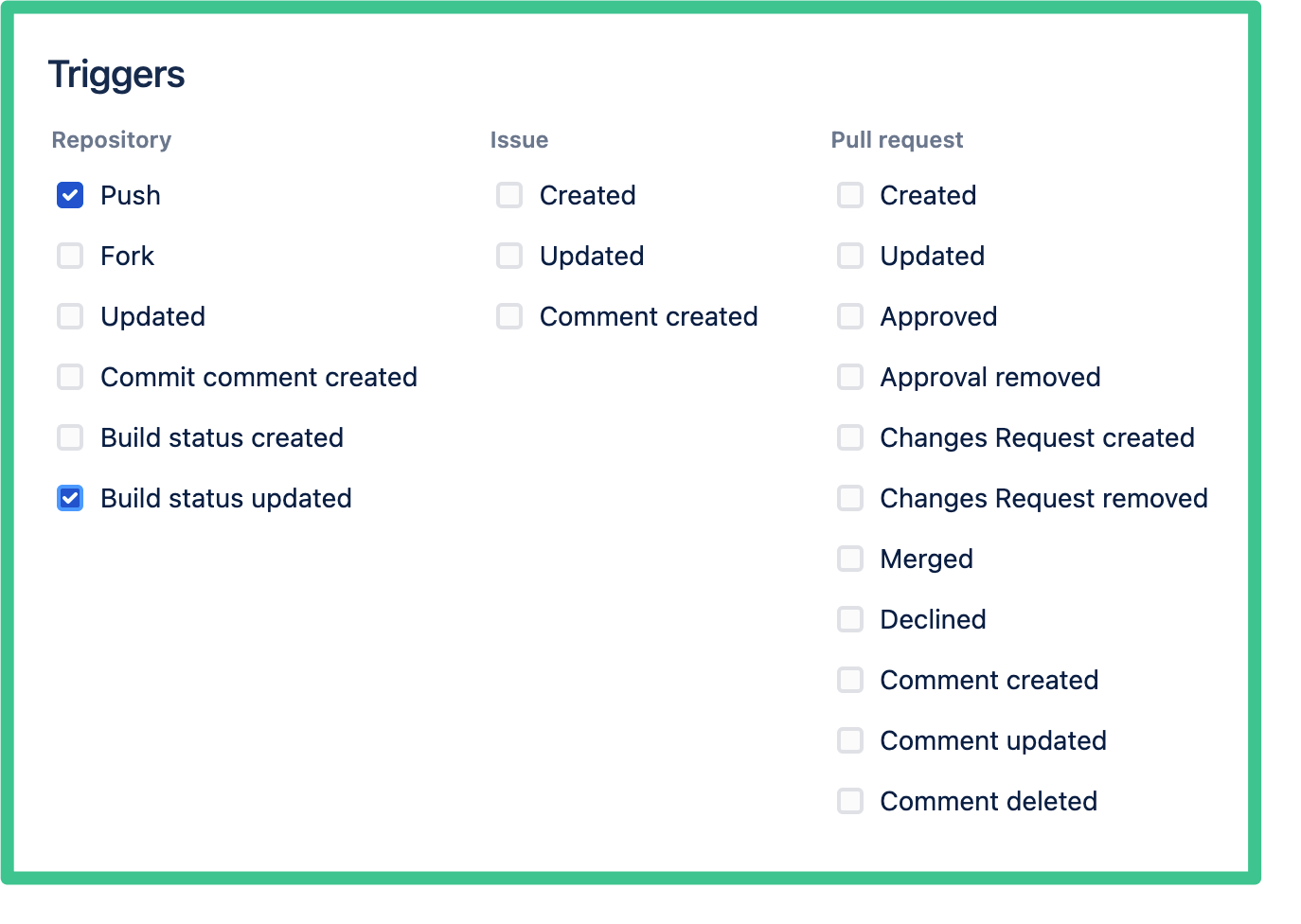

• Under "Triggers", please select Build status updated".

• On the right bottom, please click "Save".

Send deployment events

Send each deployment to the Coralogix ops events API as well, and it appears as an event marker on your APM charts, so you can line a latency or error-rate change up with the pipeline that caused it. This uses a Bitbucket Pipelines deployment step.

What you need

• A Send Your Data API key with the OpsEvents role preset. The ops events API rejects any other key type or preset, including the CICDIntegration key used for version tags, with 403 Forbidden.
• The ops events endpoint for your Coralogix domain. Use the domain selector at the top of this page to resolve it: https://api./v1/ops-events
• The service name and environment exactly as they appear in APM. They must equal the service.name and deployment.environment.name resource attributes your service reports. An event that matches no service is still stored, but appears only under All events.

Add the event to your deployment step

Store the API key as a secured repository variable named CX_OPS_EVENTS_API_KEY, then add an after-script to your deployment step. after-script runs whether the step succeeds or fails, and BITBUCKET_EXIT_CODE is 0 when the step succeeded. The step image must include curl.

pipelines:
  branches:
    main:
      - step:
          name: Deploy to production
          deployment: production
          script:
            - ./deploy.sh
          after-script:
            - SERVICE_NAME=<service_name>
            - if [ "$BITBUCKET_EXIT_CODE" = 0 ]; then STATUS=PIPELINE_RESULT_STATUS_SUCCESS; else STATUS=PIPELINE_RESULT_STATUS_FAILURE; fi
            - if [ -n "$BITBUCKET_TAG" ]; then REF_TYPE=VCS_REF_TYPE_TAG; else REF_TYPE=VCS_REF_TYPE_BRANCH; fi
            - |
              curl -sS --fail-with-body -X POST 'https://api.eu2.coralogix.com/v1/ops-events' \
                -H "Authorization: Bearer $CX_OPS_EVENTS_API_KEY" \
                -H 'Content-Type: application/json' \
                --data-binary @- <<EOF
              {
                "opsEvent": {
                  "timestamp": "$(date -u +%Y-%m-%dT%H:%M:%SZ)",
                  "description": "$SERVICE_NAME $BITBUCKET_COMMIT deployed to $BITBUCKET_DEPLOYMENT_ENVIRONMENT",
                  "attributes": {
                    "service": { "name": "$SERVICE_NAME" },
                    "environment": "$BITBUCKET_DEPLOYMENT_ENVIRONMENT"
                  },
                  "cdEvent": {
                    "system": "CD_SYSTEM_BITBUCKET",
                    "pipeline": {
                      "name": "$BITBUCKET_REPO_FULL_NAME",
                      "run": {
                        "id": "$BITBUCKET_BUILD_NUMBER",
                        "url": "https://bitbucket.org/$BITBUCKET_REPO_FULL_NAME/pipelines/results/$BITBUCKET_BUILD_NUMBER"
                      },
                      "result": { "status": "$STATUS" }
                    },
                    "vcs": {
                      "system": "VCS_SYSTEM_BITBUCKET",
                      "type": "$REF_TYPE",
                      "repository": { "name": "$BITBUCKET_REPO_FULL_NAME", "url": "$BITBUCKET_GIT_HTTP_ORIGIN" },
                      "ref": { "head": { "name": "${BITBUCKET_BRANCH:-$BITBUCKET_TAG}", "revision": "$BITBUCKET_COMMIT" } }
                    }
                  }
                }
              }
              EOF

Replace <service_name> with the service name from APM. The example takes the environment from the step's deployment keyword, so the Bitbucket deployment environment name must match the environment APM shows; otherwise replace $BITBUCKET_DEPLOYMENT_ENVIRONMENT with a literal value.

A successful request returns the server-generated event id. The marker then appears on the service's APM charts; see Event markers for how to show it and for the full field reference. The API rejects a timestamp more than 24 hours from the time the request is received, so send the event from the pipeline as it runs rather than backfilling.
