Spinnaker Version Tags

Open in ChatGPTOpen in Claude

Coralogix provides seamless integration with Spinnaker deployment pipelines so you can push tags to Coralogix automatically from your pipelines.

Prerequisites

• Have Spinnaker deployed, for more information on how to deploy: https://spinnaker.io/docs/setup/

• API Token - To use this API you need to create a personal or team API key. It’s recommended to use permission presets, as they are automatically updated with all relevant permissions. Alternatively, you can manually add individual permissions.

  Preset	Action	Description
  CICDIntegration	VERSION-BENCHMARK-TAGS:READ VERSION-BENCHMARKS-REPORTS:READ VERSION-BENCHMARK-TAGS:UPDATE	View Version Benchmark Tags View Version Benchmark Reports Modify Version Benchmark Tags

Configuration

To create a custom webhook stage, you'll need to add configuration for the stage in orca-local.yml.

Choose the https://api./api/v1/external/tags endpoint that corresponds to your Coralogix domain using the domain selector at the top of the page.

Here is the content of orca-local.yml:

webhook:
  preconfigured:
    - label: Coralogix Tag
      type: coralogixTag
      enabled: true
      description: Push tag to Coralogix
      parameters:
        - label: Coralogix API URL
          name: url
          type: string
          description: Coralogix API endpoint
          defaultValue: coralogix.com
        - label: Coralogix API Token
          name: token
          type: string
          description: Coralogix API Token
        - label: Tag
          name: tag
          type: string
          description: Tag Name
        - label: Application
          name: application
          type: string
          description: Application Name
        - label: Subsystem
          name: subsystem
          type: string
          description: Subsystem Name
      url: https://api.eu2.coralogix.com/api/v1/external/tags
      method: POST
      customHeaders:
      Authorization:
        - Bearer ${parameterValues['token']}
      Content-Type:
        - application/json
      payload: |-
        {
            "name": "${parameterValues['tag']}",
            "application": ["${parameterValues['application']}"],
            "subsystem": ["${parameterValues['subsystem']}"],
            "iconUrl": "https://raw.githubusercontent.com/coralogix/integrations-docs/master/integrations/spinnaker/images/spinnaker.png"
        }

After you create a custom configuration, redeploy your Spinnaker instance with Halyard:

hal deploy apply

Usage

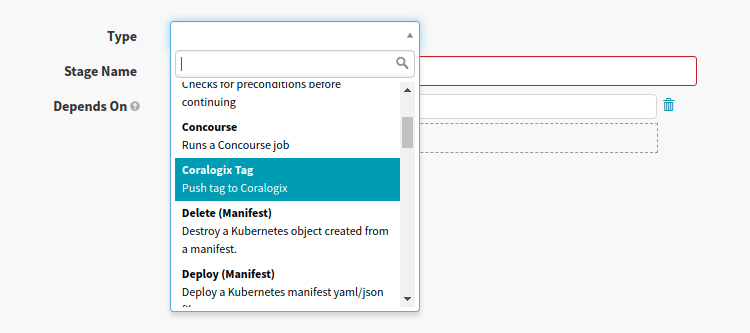

Add a new stage to push the tag to Coralogix:

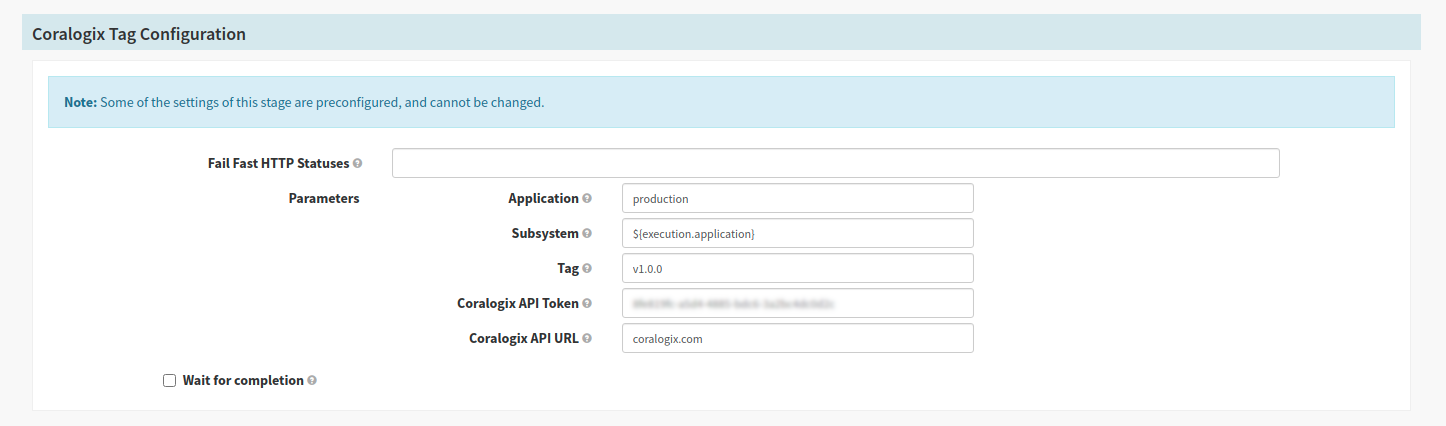

Configure stage to push tag to your account:

Note: You can use Spinnaker pipeline expressions to define parameters for the tag.

Send deployment events

Send each deployment to the Coralogix ops events API as well, and it appears as an event marker on your APM charts, so you can line a latency or error-rate change up with the pipeline execution that caused it.

What you need

• A Send Your Data API key with the OpsEvents role preset. The ops events API rejects any other key type or preset, including the CICDIntegration key used for version tags, with 403 Forbidden.
• The ops events endpoint for your Coralogix domain. Use the domain selector at the top of this page to resolve it: https://api./v1/ops-events
• The service name and environment exactly as they appear in APM. They must equal the service.name and deployment.environment.name resource attributes your service reports. An event that matches no service is still stored, but appears only under All events.

Add a preconfigured webhook stage

Add a second preconfigured webhook to orca-local.yml, next to the version tag webhook. Replace <cx_api_key> with the ops events API key; it stays in the Orca configuration, so pipelines never carry it.

webhook:
  preconfigured:
    - label: Coralogix Deployment Event
      type: coralogixOpsEvent
      enabled: true
      description: Send a deployment event to Coralogix
      parameters:
        - label: Service name
          name: service
          type: string
          description: Service name as it appears in Coralogix APM
        - label: Environment
          name: environment
          type: string
          description: Environment name as it appears in Coralogix APM
        - label: Spinnaker URL
          name: spinnakerUrl
          type: string
          description: Base URL of your Spinnaker UI, used to link back to the execution
      url: https://api.eu2.coralogix.com/v1/ops-events
      method: POST
      customHeaders:
        Authorization:
          - Bearer <cx_api_key>
        Content-Type:
          - application/json
      payload: |-
        {
          "opsEvent": {
            "timestamp": "${T(java.time.Instant).now().toString()}",
            "description": "${parameterValues['service']} deployed to ${parameterValues['environment']} by ${execution.name}",
            "attributes": {
              "service": { "name": "${parameterValues['service']}" },
              "environment": "${parameterValues['environment']}"
            },
            "cdEvent": {
              "system": "CD_SYSTEM_SPINNAKER",
              "pipeline": {
                "name": "${execution.name}",
                "run": {
                  "id": "${execution.id}",
                  "url": "${parameterValues['spinnakerUrl']}/#/applications/${execution.application}/executions/details/${execution.id}"
                },
                "result": { "status": "PIPELINE_RESULT_STATUS_SUCCESS" }
              }
            }
          }
        }

Redeploy Spinnaker with hal deploy apply, then add a Coralogix Deployment Event stage after your deploy stage and fill in the service name and environment from APM. The stage runs only when the stages before it succeed, so each event marks a completed deployment.

A successful request returns the server-generated event id. The marker then appears on the service's APM charts; see Event markers for how to show it and for the full field reference. The API rejects a timestamp more than 24 hours from the time the request is received, so send the event from the pipeline as it runs rather than backfilling.
