Blob Storage To OTel: Microsoft Azure Resource Manager (ARM)

Coralogix provides a seamless integration with Azure cloud, allowing you to send your logs from anywhere and parse them according to your needs.

The Azure Blob Storage To OTel integration allows parsing of Azure Blobs, triggered by an EventHub subscription, and sending the data to OTel endpoint. This function serves as a solution for the limitation of azureblobreceiver in OpenTelemetry Collector, as it can't process non-JSON logs (see this issue).

Notes:

This integration only supports whole log processing. It does not support tail functionality.
It does not monitor for changes to log files.

Prerequisites

Azure account with an active subscription
Storage account where logs are stored with event notifications configured with EventHub as a destination.
An OTel collector endpoint (available for the function app to reach).
[Optional] vNet network with a subnet for the function app if you are using a Premium App Service Plan.

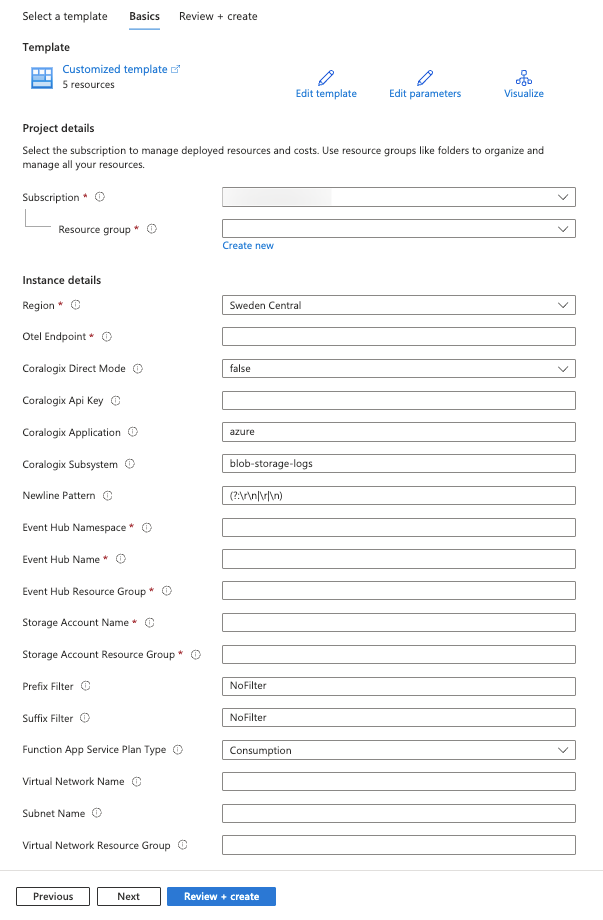

Azure Resource Manager Template Deployment

Sign into your Azure account and deploy the Blob Storage via Event Grid trigger integration by clicking here.

Fields

Required

Field	Description
OTel Endpoint	The OTLP endpoint URL (example: https://my-api-endpoint:443)
Event Hub Namespace	The name of the Event Hub namespace
Event Hub Name	The name of the Event Hub to be used as a trigger for the function app
Event Hub Resource Group	The resource group name of the Event Hub namespace
Storage Account Name	The name of the storage account containing the logs to be monitored
Storage Account Resource Group	The resource group name of the storage account containing the Blob container to be monitored

Optional

Field	Description
Coralogix Direct Mode	Whether to use Coralogix as an OTLP endpoint (default: false)
Coralogix API Key	Your Coralogix Send Your Data - API Key. Used in case of using Coralogix as an OTLP endpoint
Coralogix Application	The name of the Application in Coralogix
Coralogix Subsystem	The name of the Subsystem in Coralogix
Newline Pattern	The newline pattern expected within the blob storage documents
Prefix Filter	The prefix filter to apply to the blob container. Use 'NoFilter' to not filter by prefix. Wildcards are not allowed. Use the following format `/subfolder1/subfolder2/`
Suffix Filter	The suffix filter to apply to the blob container. Use 'NoFilter' to not filter by suffix. Wildcards are not allowed. Use the following format `.log`
Function App Service Plan Type	The type of the Function App Service Plan. Choose Premium if you need vNet Support
Virtual Network Name	The name of the Virtual Network to integrate with (leave empty if VNet integration is not needed)
Subnet Name	The name of the subnet to integrate with (leave empty if VNet integration is not needed)
Virtual Network Resource Group	The resource group name of the Virtual Network (leave empty if VNet integration is not needed)

vNet Integration Notes

The function app will be deployed to a Premium plan and will be integrated with the specified vNet.
The subnet must be delegated to Microsoft.Web/serverFarms. Here is an example of how to delegate a subnet:

az network vnet subnet update --name <subnet-name> --vnet-name <vnet-name> --resource-group <resource-group-name> --delegations Microsoft.Web/serverFarms

UI workflow:

Virtual Network > Subnets > [Your Subnet] > Subnet delegation > Microsoft.Web/serverFarms > Save

Additional Resources


Github	Blob Storage Documentation
Microsoft Azure Functions	Event Hub Queue Storage
