PagerDuty data ingestion
PagerDuty knows when an incident was triggered, acknowledged, and resolved. Sending those events to Coralogix puts the incident timeline next to the telemetry behind it, so you can see patterns across incidents rather than one page at a time.
The Contextual Data integration generates the webhook URL; a PagerDuty service extension posts to it.
Note
For two-way sync between Coralogix Cases and PagerDuty incidents, use the PagerDuty bi-directional integration instead.
What you need
- A PagerDuty account with access to the service you want to forward.
- A Coralogix API key. You can create one during setup.
- An application and subsystem name to file the events under.
Generate the URL in Coralogix
1.
Open the PagerDuty integration

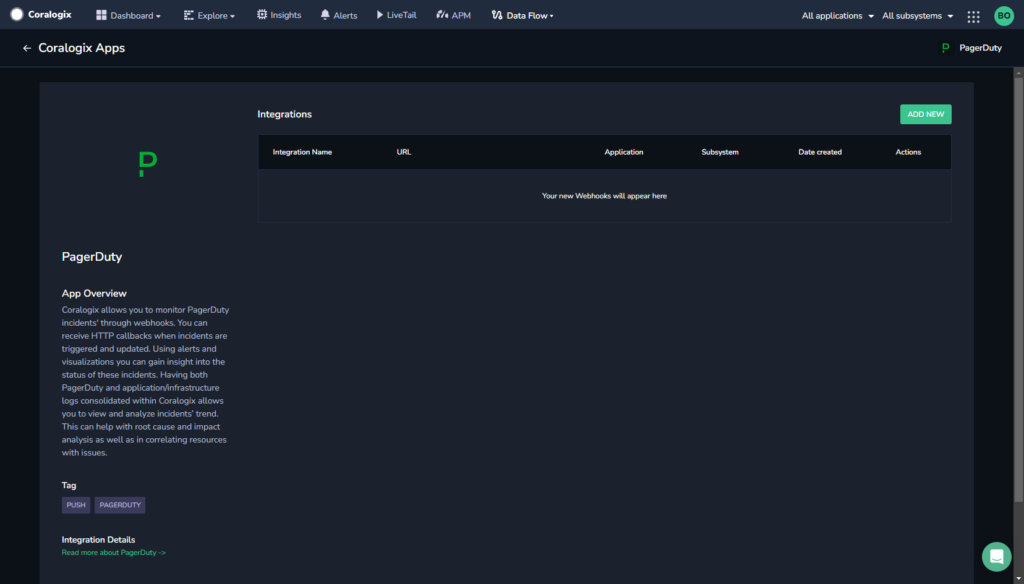

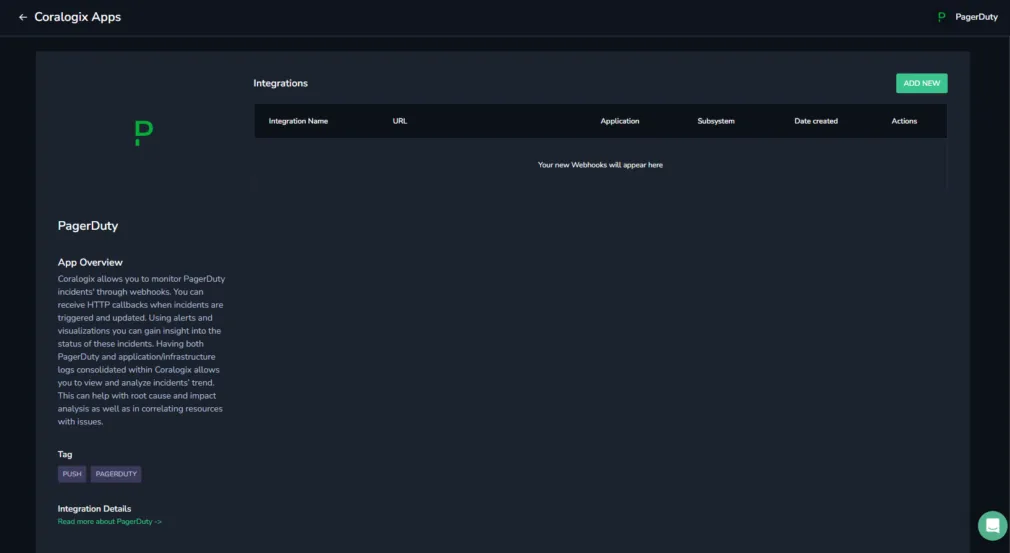

Select Data Flow, then Contextual Data, then PagerDuty, then Add, then Add new.
2.
Enter the integration details
Enter a Name. Supply Your API Key or select Create new key. Enter an App Name and Subsystem Name.
3.
Generate the URL
Select Generate URL and copy the result.

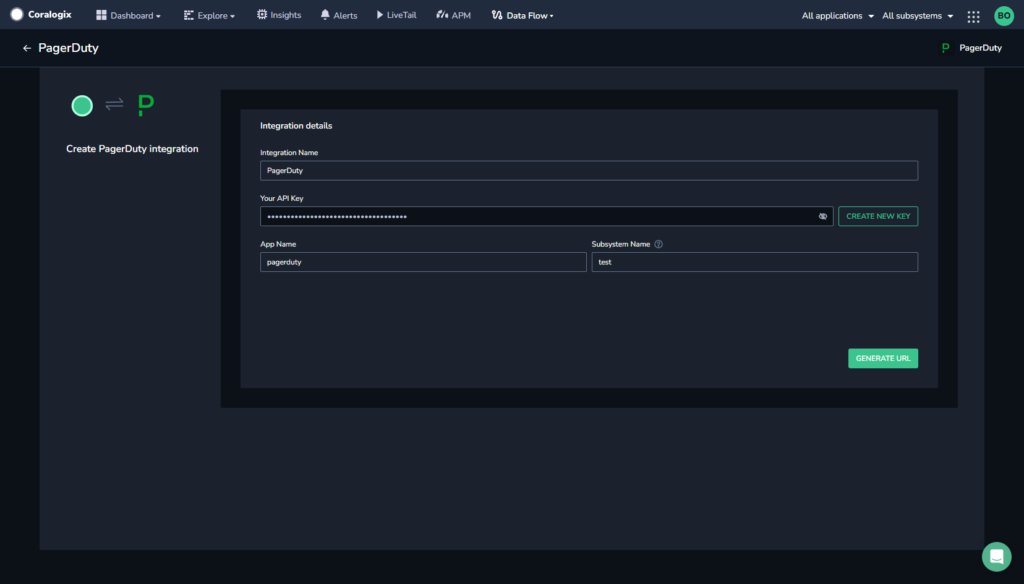

Shows the form that produces the webhook URL PagerDuty posts to.
Add the extension in PagerDuty
4.
Open the service's extensions

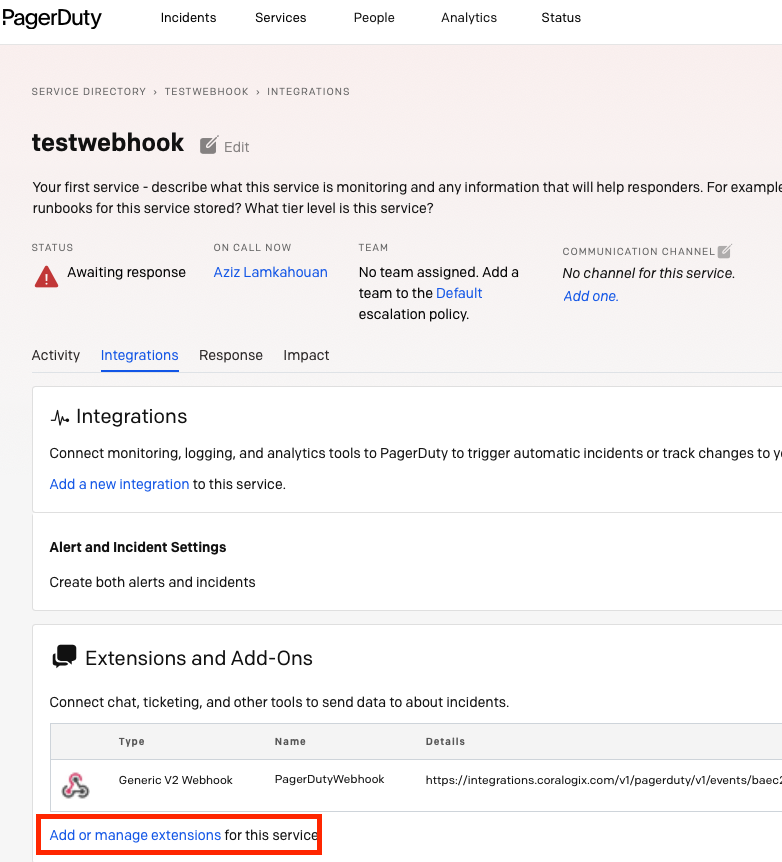

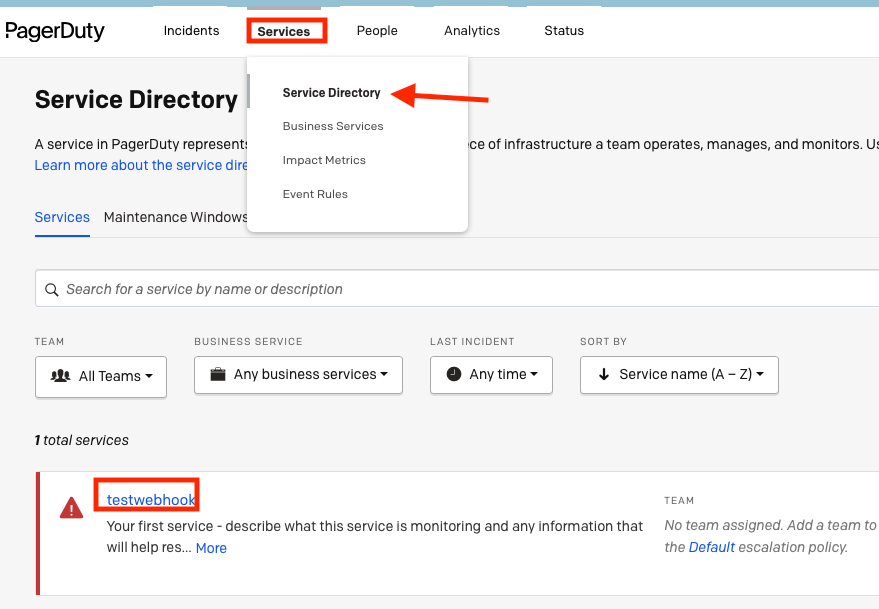

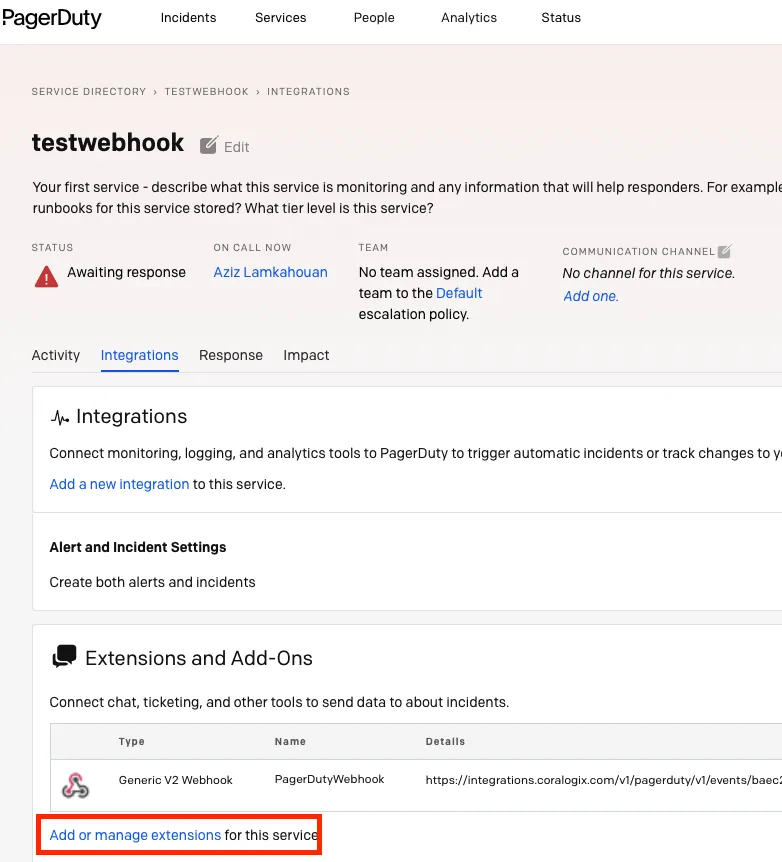

In PagerDuty, select Services, then Service directory, then the service you want to forward. Open its Integrations tab and select Add or manage extensions.
5.
Create the extension
Select New Extension, set Extension Type to Generic V2 Webhook, enter a Name, paste the generated URL into URL, then select Save.

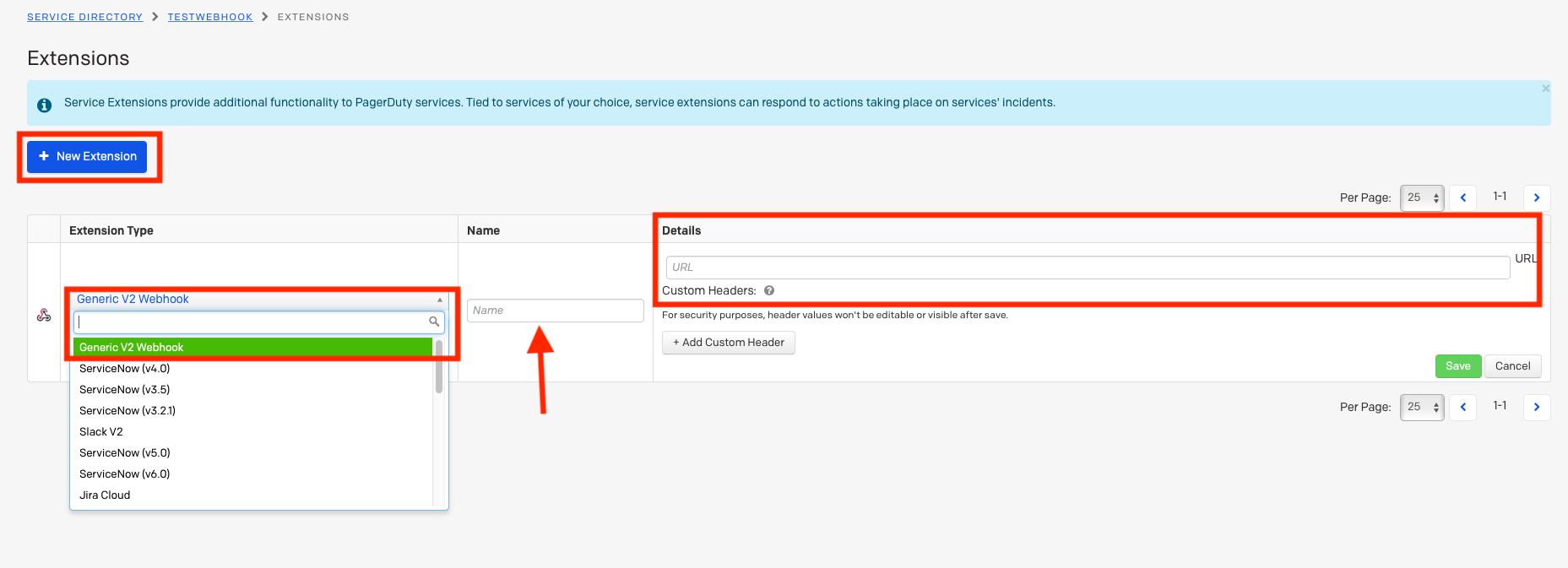

Shows the extension type that posts raw incident events to an arbitrary URL.
Example log
{
"source_system" : "pagerduty" ,
"pagerduty" : {
"event" : "incident.trigger" ,
"log_entries" : [
{
"id" : "R0EYM81WSBZ27ACLRWOMSVVO77" ,
"type" : "trigger_log_entry" ,
"summary" : "Triggered through the website" ,
"self" : "https://api.pagerduty.com/log_entries/R0EYM81WSBZ27ACLRWOMSVVO77" ,
"html_url" : "https://coralogixtest.pagerduty.com/incidents/PRUIXXX/log_entries/R0EYM81WSBZ27ACLRWOMSVVO77" ,
"created_at" : "2021-02-22T08:44:45Z" ,
"agent" : {
"id" : "P0G8XXX" ,
"type" : "user_reference" ,
"summary" : "John Doe" ,
"self" : "https://api.pagerduty.com/users/P0G8XXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/users/P0G8XXX"
},
"channel" : {
"type" : "web_trigger" ,
"summary" : "Outage" ,
"subject" : "Outage" ,
"details" : "Hey there, this is serious outage!" ,
"details_omitted" : false ,
"body_omitted" : false
},
"service" : {
"id" : "PTIHXXX" ,
"type" : "service_reference" ,
"summary" : "web-server" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/service-directory/PTIHXXX"
},
"incident" : {
"id" : "PRUIXXX" ,
"type" : "incident_reference" ,
"summary" : "[#7] Outage" ,
"self" : "https://api.pagerduty.com/incidents/PRUIXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/incidents/PRUIXXX"
},
"teams" : [],
"contexts" : [],
"event_details" : {
"description" : "Outage"
}
}
],
"webhook" : {
"endpoint_url" : "https://integrations.dev-shared.coralogix.net/v1/pagerduty/v1/events/98663b44-74e5-11eb-a35c-0a1196871111?appName=pagerfero&subSystem=stagging-incidents" ,
"name" : "Cora" ,
"description" : null ,
"webhook_object" : {
"id" : "PTIHXXX" ,
"type" : "service_reference" ,
"summary" : "web-server" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/service-directory/PTIHXXX"
},
"config" : {
"referer" : "https://coralogixtest.pagerduty.com/services/PTIHXXX/integrations?service_profile=1"
},
"outbound_integration" : {
"id" : "PJFWXXX" ,
"type" : "outbound_integration_reference" ,
"summary" : "Generic V2 Webhook" ,
"self" : "https://api.pagerduty.com/outbound_integrations/PJFWXXX" ,
"html_url" : null
},
"accounts_addon" : null ,
"id" : "PZNHXXX" ,
"type" : "webhook" ,
"summary" : "Cora" ,
"self" : "https://api.pagerduty.com/webhooks/PZNHXXX" ,
"html_url" : null
},
"incident" : {
"incident_number" : 7 ,
"title" : "Outage" ,
"description" : "Outage" ,
"created_at" : "2021-02-22T08:44:45Z" ,
"status" : "triggered" ,
"incident_key" : "a466d2a1d4a74932a3b980cb599e47ec" ,
"service" : {
"id" : "PTIHXXX" ,
"name" : "web-server" ,
"description" : "Your first service - describe what this service is monitoring and any information that will help responders.
For example: What is the SLA of this service? Where are the runbooks for this service stored? What tier level is this service?" ,
"created_at" : "2021-02-09T16:00:23Z" ,
"updated_at" : "2021-02-09T16:00:23Z" ,
"status" : "critical" ,
"teams" : [],
"alert_creation" : "create_alerts_and_incidents" ,
"addons" : [],
"scheduled_actions" : [],
"support_hours" : null ,
"last_incident_timestamp" : "2021-02-22T08:44:45Z" ,
"escalation_policy" : {
"id" : "PLGAXXX" ,
"type" : "escalation_policy_reference" ,
"summary" : "Default" ,
"self" : "https://api.pagerduty.com/escalation_policies/PLGAXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/escalation_policies/PLGAXXX"
},
"incident_urgency_rule" : {
"type" : "constant" ,
"urgency" : "high"
},
"acknowledgement_timeout" : null ,
"auto_resolve_timeout" : null ,
"alert_grouping" : null ,
"alert_grouping_timeout" : null ,
"alert_grouping_parameters" : {
"type" : null ,
"config" : null
},
"integrations" : [
{
"id" : "PXKGXXX" ,
"type" : "app_event_transform_inbound_integration_reference" ,
"summary" : "Coralogix" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX/integrations/PXKGXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/services/PTIHXXX/integrations/PXKGXXX"
}
],
"metadata" : {},
"response_play" : null ,
"type" : "service" ,
"summary" : "web-server" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/service-directory/PTIHXXX"
},
"assignments" : [
{
"at" : "2021-02-22T08:44:45Z" ,
"assignee" : {
"id" : "P0G8XXX" ,
"type" : "user_reference" ,
"summary" : "John Doe" ,
"self" : "https://api.pagerduty.com/users/P0G8XXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/users/P0G8XXX"
}
}
],
"assigned_via" : "escalation_policy" ,
"last_status_change_at" : "2021-02-22T08:44:45Z" ,
"first_trigger_log_entry" : {
"id" : "R0EYM81WSBZ27ACLRWOMSVV111" ,
"type" : "trigger_log_entry_reference" ,
"summary" : "Triggered through the website" ,
"self" : "https://api.pagerduty.com/log_entries/R0EYM81WSBZ27ACLRWOMSVV111" ,
"html_url" : "https://coralogixtest.pagerduty.com/incidents/PRUIXXX/log_entries/R0EYM81WSBZ27ACLRWOMSVV111"
},
"alert_counts" : {
"all" : 0 ,
"triggered" : 0 ,
"resolved" : 0
},
"is_mergeable" : true ,
"escalation_policy" : {
"id" : "PLGAXXX" ,
"type" : "escalation_policy_reference" ,
"summary" : "Default" ,
"self" : "https://api.pagerduty.com/escalation_policies/PLGAXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/escalation_policies/PLGAXXX"
},
"teams" : [],
"impacted_services" : [
{
"id" : "PTIHXXX" ,
"type" : "service_reference" ,
"summary" : "web-server" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/service-directory/PTIHXXX"
}
],
"pending_actions" : [],
"acknowledgements" : [],
"basic_alert_grouping" : null ,
"alert_grouping" : null ,
"last_status_change_by" : {
"id" : "PTIHUXXX" ,
"type" : "service_reference" ,
"summary" : "web-server" ,
"self" : "https://api.pagerduty.com/services/PTIHXXX" ,
"html_url" : "https://coralogixtest.pagerduty.com/service-directory/PTIHXXX"
},
"metadata" : {},
"external_references" : [],
"incidents_responders" : [],
"responder_requests" : [],
"subscriber_requests" : [],
"urgency" : "high" ,
"id" : "PRUI111" ,
"type" : "incident" ,
"summary" : "[#7] Outage" ,
"self" : "https://api.pagerduty.com/incidents/PRUI111" ,
"html_url" : "https://coralogixtest.pagerduty.com/incidents/PRUI111" ,
"alerts" : []
},
"id" : "36f99188-74ea-11eb-87ca-0242c0a81111" ,
"created_on" : "2021-02-22T08:44:45Z" ,
"account_features" : {
"response_automation" : true
},
"account_id" : "PWLHXXX"
}
}
