Heroku Telemetry Drains

This guide provides step-by-step instructions for setting up Heroku Telemetry Drains to collect logs, metrics, and traces from your Heroku Private Space applications into Coralogix.

Prerequisites

Application deployed on Heroku Private Space (Fir Generation)
Heroku CLI installed and authenticated
Coralogix Send-Your-Data API key

Setup Guide

Throughout this guide, you’ll see environment variables used in CLI examples. You can export these in your shell for convenience:

export HEROKU_APP_NAME="your-app-name"
export CORALOGIX_ENDPOINT="https://<your-coralogix-endpoint>"
export CORALOGIX_API_KEY="xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

When setting the CORALOGIX_ENDPOINT, refer to Coralogix endpoints for the OpenTelemetry ingress endpoint. See the Coralogix domain guide for instructions on identifying your account’s domain.

1. Verify Your App is Running in Private Space

Before continuing, ensure your app is running in a Private Space using the cnb stack. Telemetry drains in Heroku are only supported for apps in Private Spaces using Fir generation stack.

heroku apps:info $HEROKU_APP_NAME

Expected Example Output:

=== salty-badlands-66134

Auto Cert Mgmt: false
Dynos:          web: 1
Git URL:        https://git.heroku.com/salty-badlands-66134.git
Owner:          team@herokumanager.com
Region:         frankfurt
Repo Size:      11 MB
Space:          telemetry-cx
Stack:          cnb
Web URL:        https://salty-badlands-66134-44dbb100043e.hydrangea-frankfurt.herokuapp.com/

2. Add Telemetry Drain to Coralogix

Now, add the application telemetry drain to send logs, metrics, and traces to Coralogix.

heroku telemetry:add $CORALOGIX_ENDPOINT --app $HEROKU_APP_NAME --headers '{"Authorization":"Bearer $CORALOGIX_API_KEY", "CX-Application-Name": "heroku-telemetry-cx", "CX-Subsystem-Name":"heroku-telemetry-cx"}'

Expected Output:

successfully added drain https://ingress.coralogix.com:443

Coralogix Options:
- You may customize CX-Application-Name and CX-Subsystem-Name to suit your application.

Heroku Options:
- Signal filtering: Specify which signals to send, e.g., --signals logs,traces (defaults to all).
- Transport protocol: Use --transport grpc to switch from the default HTTP.
- Space-level drains: Add a drain at the Private Space level using --space your_space.

For all configuration options, refer to the Heroku Telemetry Drains documentation.

3. Verify Telemetry Drain Configuration

Confirm the telemetry drain was added successfully:

heroku telemetry --app $HEROKU_APP_NAME

Expected Example Output:

=== salty-badlands-66134 Telemetry Drains

 Id                                   Signals                         Endpoint
 ──────────────────────────────────── ─────────────────────────────── ─────────────────────────────────
 bf9479d2-767a-4f84-8e7f-24d20e2c2802 [ 'traces', 'metrics', 'logs' ] https://ingress.coralogix.com:443

4. Get Detailed Telemetry Drain Information

To retrieve detailed info about a specific telemetry drain (replace the ID with your actual drain ID):

heroku telemetry:info bf9479d2-767a-4f84-8e7f-24d20e2c2802

Expected Output:

=== bf9479d2-767a-4f84-8e7f-24d20e2c2802

App:       salty-badlands-66134
Signals:   traces, metrics, logs
Endpoint:  https://ingress.coralogix.com:443
Transport: HTTP
Headers:   {"Authorization":"Bearer cxtp_abc1234567891098762521712","CX-Application-Name":"heroku-telemetry-cx","CX-Subsystem-Name":"heroku-telemetry-cx"}

5. Verify Data in Coralogix Dashboard

After the telemetry drain is configured and active, you should begin seeing data in your Coralogix dashboard. Navigate to your Coralogix console view to confirm that the integration is working.

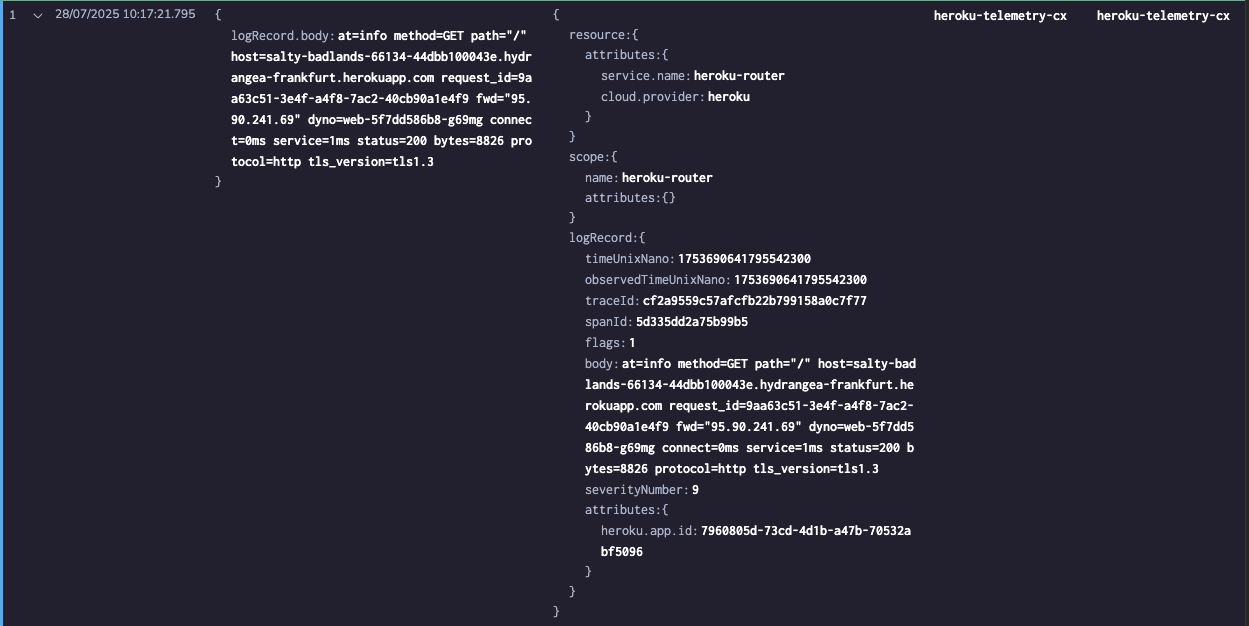

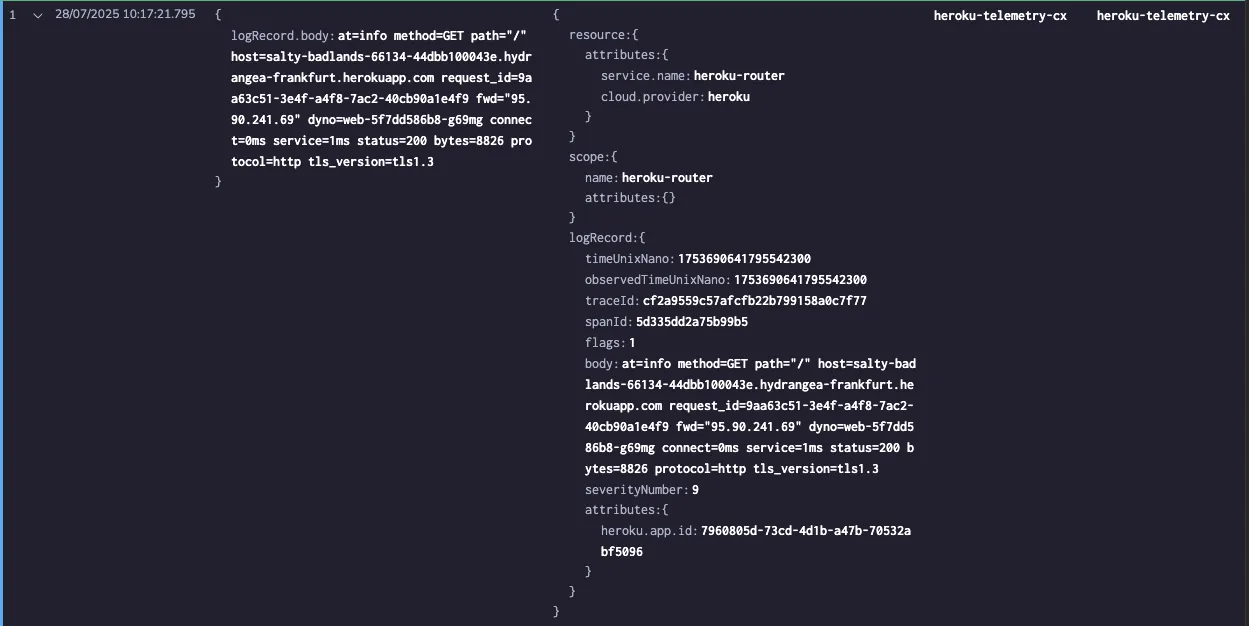

Logs

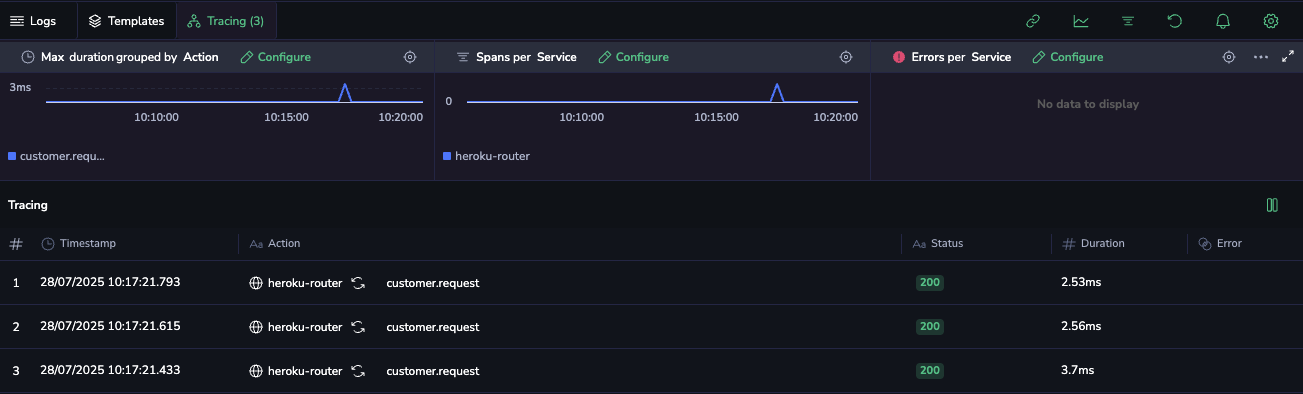

Search and analyze Heroku logs. Traces

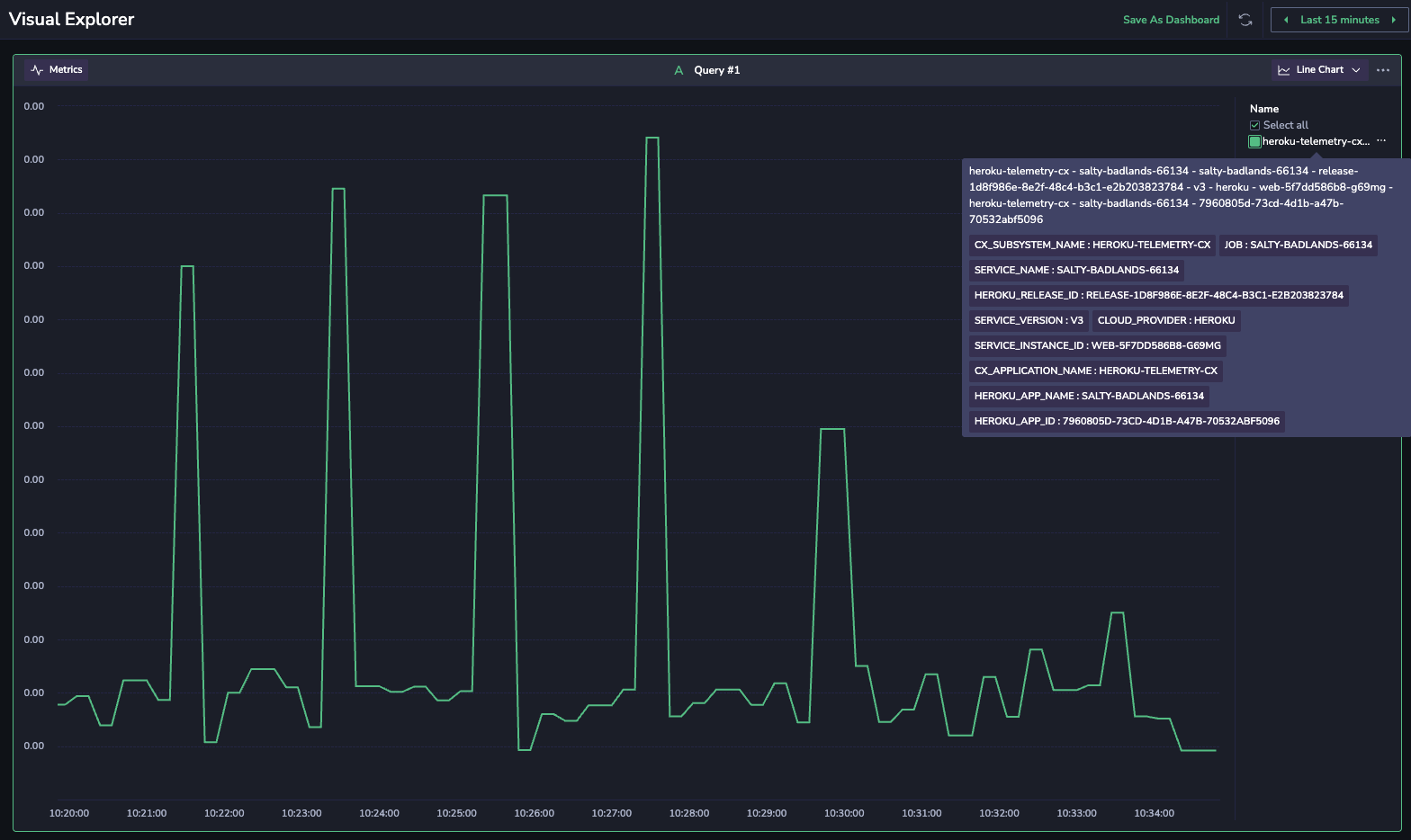

Visualize distributed traces. Metrics

Monitor app performance metrics.
