Microsoft Defender

Microsoft Defender → Coralogix Via Azure Event Hubs

At a glance (architecture)

• Microsoft Defender (Defender for Cloud and/or Defender XDR / Endpoint)
• ➜ Azure Event Hubs (central streaming bus)
• ➜ Azure Function (Event Hub trigger) using Coralogix template
• ➜ Coralogix (logs/alerts analytics)

Prerequisites

• Azure subscription with permission to:
  • Create & configure Event Hubs namespace/event hub
  • Configure Defender export (Defender for Cloud and/or Defender XDR)
  • Deploy Azure Functions from template

Step 1 — Create Event Hubs namespace & event hub

1. In Azure Portal → Event Hubs → + Create namespace.
   • Pricing tier: Standard (recommended)
   • Throughput units: start with 1 (scale later)
   • Networking: public or private as per policy
2. Inside the namespace → + Event Hub
   • Name: defender-stream
   • Partitions: 2–4 (scale with volume)
   • Message retention: 1–7 days (align to recovery needs)
3. Create a Shared access policy with Listen rights (for the Function) and copy the connection string.

Step 2 — Export from Defender for Cloud → Event Hubs

Use Continuous export to stream alerts and recommendations.

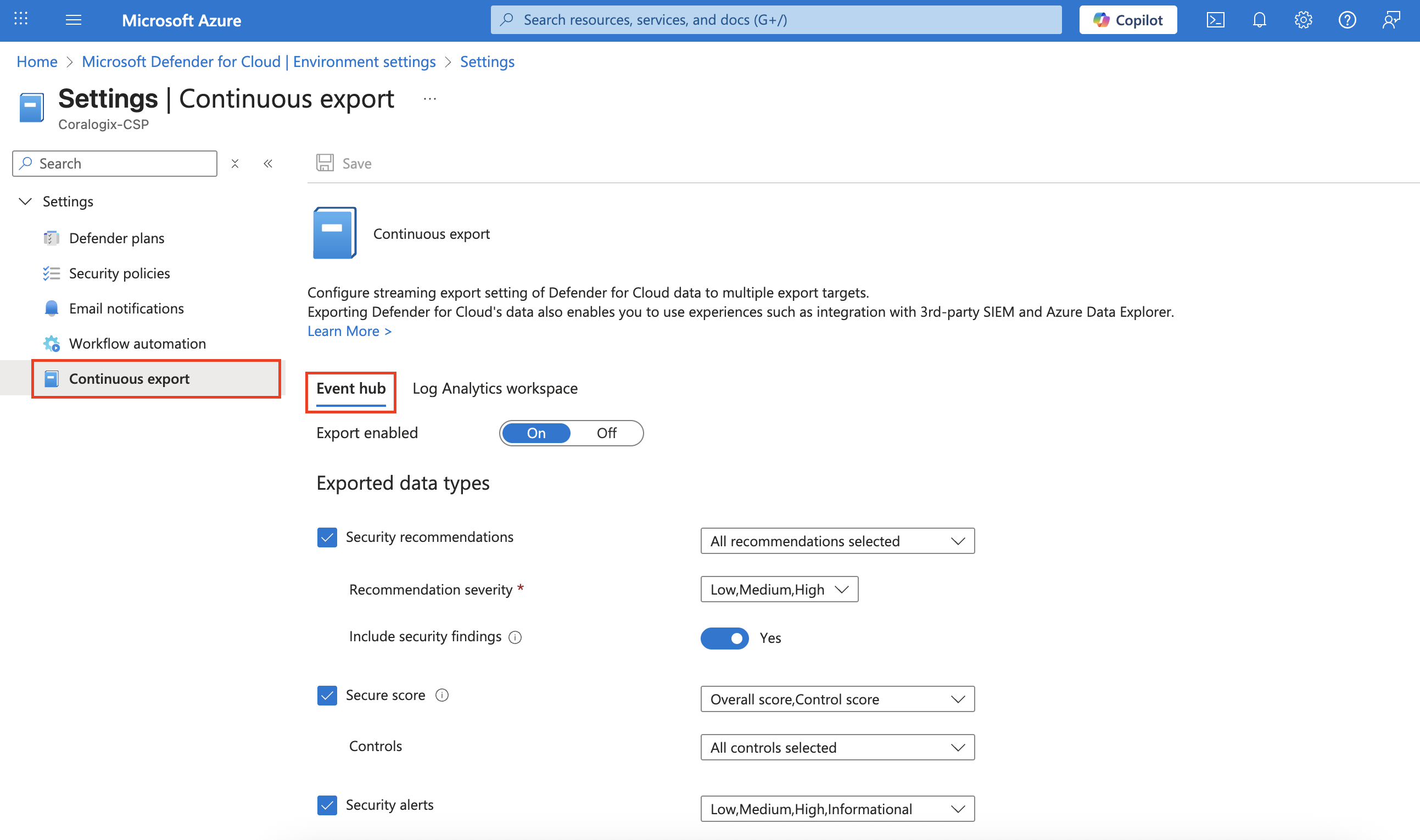

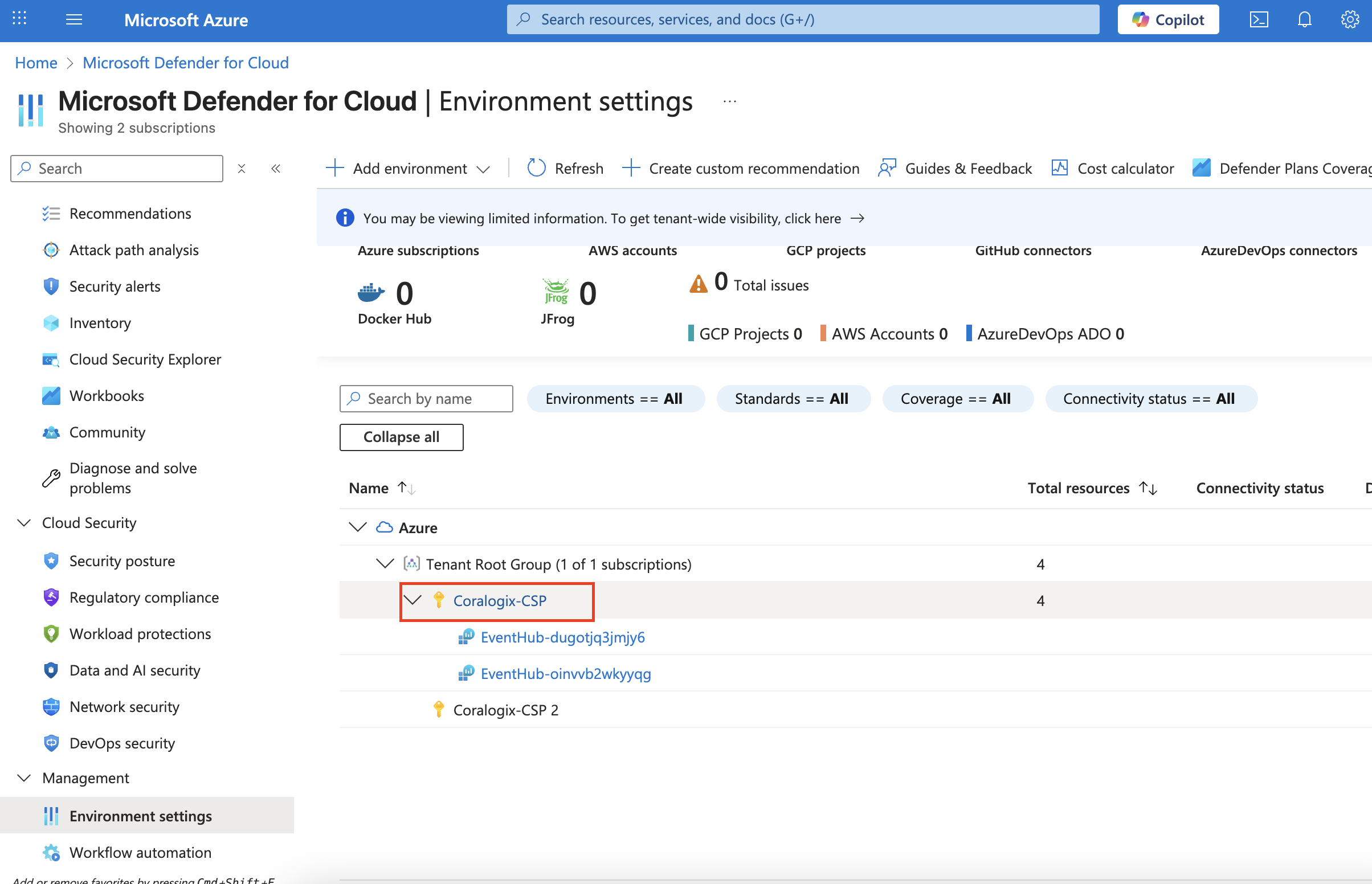

1. Azure Portal → Defender for Cloud → Environment settings → choose subscription.

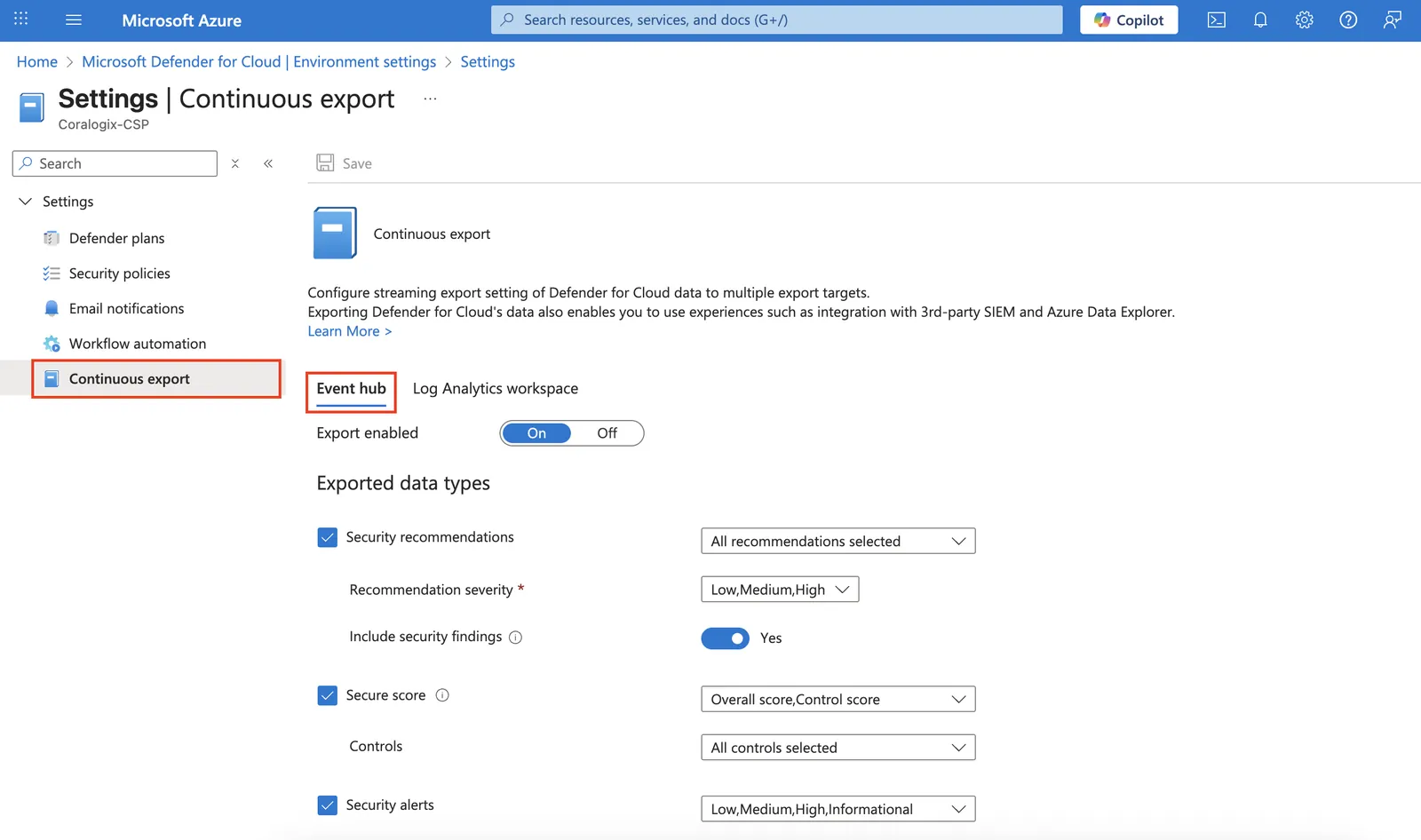

Continuous export → + Add export

1. Export target: Azure Event Hubs
2. Data types: select Security alerts and/or Security recommendations (add resource state changes if needed)
3. Event Hub: choose your namespace and the defender-stream hub
4. Save.

Resulting payloads: JSON per alert/recommendation with keys such as alertId, severity, resourceId, description, compromisedEntity, tactics, firstSeen, lastSeen.

Step 3 — Deploy the Coralogix Azure Function (Event Hub → Coralogix)

We’ll use Coralogix’s ARM template to create a Function App that triggers on your Event Hub and forwards events to Coralogix.

1. Open the Coralogix Azure Functions deployment link (ARM template).

Learn more about Coralogix ARM in our documentation.

1. Fill parameters:
   • EventHub connection string (with Endpoint=...;EntityPath=defender-stream or supply hub name separately if template asks)
   • Consumer group: $Default or a dedicated coralogix-cg
   • CORALOGIX_PRIVATE_KEY: from Coralogix UI → Data Ingestion
   • CORALOGIX_REGION: e.g., EU1, AP1, US1 (exact value per account)
   • APPLICATION_NAME: e.g., microsoft-defender
   • SUBSYSTEM: e.g., alerts or xdr-events
   • (optional) COMPANY_ID if required by your region
2. Plan: Consumption or Premium (P1 for high throughput). Enable Always On if using Premium.
3. Networking: if Event Hub is private, integrate the Function with the VNet and grant access.
4. Deploy. Confirm the Function is bound to the Event Hub trigger.

Step 4 — Validate ingestion in Coralogix

• In Coralogix → Logs → filter by application:microsoft-defender.
• You should see JSON logs arriving within a minute of new alerts/events.
• Example search (Lucene):
  • severity:High AND (tactics:CredentialAccess OR tactics:DefenseEvasion)
