Rsyslog
Seamlessly send Coralogix your logs with Rsyslog using TCP (recommended), UDP, or manual installation.
Parameters
Private Key: Your Send-Your-Data API key is a unique ID that represents your company.
Company ID: A unique number that represents your company. Access your Company ID from the settings tab in your Coralogix dashboard.
Application Name & SubSystem Name: The name of your main application and subsystem(s). These are required in order to organize and query your data.
Coralogix Syslog Endpoint: Select one of the following TLS / TCP Syslog endpoints on the basis of your Coralogix domain.
TCP (Recommended)
STEP 1. Open /etc/rsyslog.d/
and create a file named coralogix.rsyslog.conf
.
STEP 2. Paste the lines below in this file.
Input your application and subsystem name, private key, and company i.d.
Input your endpoint. The example below adopts an endpoint for the domain
coralogix.com
.
$template CoralogixSyslogFormat,"{\"fields\": {\"private_key\":\"put-your-private-key\",\"company_id\":\"company-id\",\"app_name\":\"name-for-application\",\"subsystem_name\":\"%programname%\"},\"message\": {\"message\":\"%msg:::json%\",\"program_name\":\"%programname%\",\"pri_text\":\"%pri-text%\",\"hostname\":\"%HOSTNAME%\"}}"
STEP 3. Restart rsyslog. Ensure that port 6514 is open in your firewall to allow the connection.
Notes:
In the Coralogix rsyslog integration configuration, "hostname":"%HOSTNAME%" does not correspond to a "hostname" field that will appear in the syslog messages sent to Coralogix. This is the name of the server sending the messages.

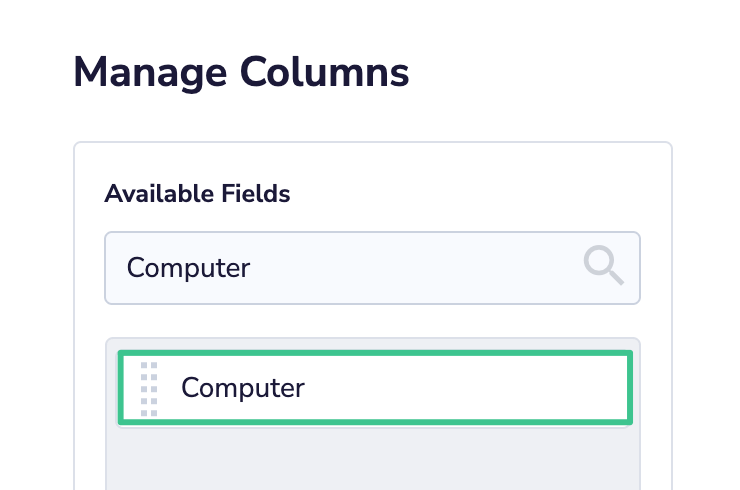

To see the "hostname" in your Explore screen, select the
computer
field as a column.- Click COLUMNS on the top right-hand sidebar of the UI. Drag the
computer
field to the list of fields "in use" on the right. Click APPLY.
- Click COLUMNS on the top right-hand sidebar of the UI. Drag the
UDP Installation
Determine Your Syslog Type
Coralogix only supports rsyslog, not syslog-ng.
STEP 1. Open your terminal window and type:
STEP 2. If you see rsyslog.d, you are using rsyslog. If you see syslog-ng, you are using syslog-ng, which has been deprecated.
If you do not see any of these options, install rsyslog. Most Linux distributions already have this syslog package included, so you should refer to the documentation of your Linux distribution for installation guidelines.
Rsyslog Configuration
STEP 1. Open your terminal window and open the file rsyslog.conf with your editor of choice.
STEP 2. Locate a line containing the parameter $RepeatedMsgReduction. If it is configured to ‘on’ then turn it off. If the line is commented, uncomment it. If you can’t find this parameter, add it. After the modification, it should look like this:
STEP 3. Download the coralogix rsyslog configuration file rsyslog.conf (right-click link & save as) and save it in /etc/rsyslog.d/ folder.
https://coralogix-public.s3-eu-west-1.amazonaws.com/integrations/rsyslog/coralogix.rsyslog.conf
Template Configuration
Navigate to the template section and update the CoralogixSyslogFormat parameter with your specific values. Change only the following parameters: [YOUR COMPANY ID], [YOUR COMPANY KEY], [YOUR APPLICATION NAME], [YOUR APPLICATION SUBSYSTEM NAME].
#!bash
#*****************************************************************#
# TEMPLATE SECTION #
#*****************************************************************#
$template CoralogixSyslogFormat,"{"<wbr>fields": {"private_key":"YOUR COMPANY KEY","company_id":"YOUR COMPANY ID","app_name":"YOUR APPLICATION NAME","subsystem_name":"<wbr>YOUR APPLICATION SUBSYSTEM NAME"},"message": {&nbsp; &nbsp; &nbsp; &nbsp; "message":"%msg:::json%","<wbr>program_name":"%programname%<wbr>","pri_text":"%pri-text%"<wbr>,"hostname":"%HOSTNAME%",<wbr>"tag":"%syslogtag%"}}n"
Notes:
- If you have several applications or subsystem components writing to the same syslog, create this template for each and give each a unique name. For instance, if you have an application with the name myapp with 2 subsystems - mydal and myclient - running on the same host, the template configuration should look like this:
#!bash
$template CoralogixSyslogForma1,"{"<wbr>fields": {"private_key":"530e925d-<wbr>be9e-****-****-75884f54efbe",<wbr>"company_id":"****","app_<wbr>name":"prod","subsystem_<wbr>name":"nginx"},"message": {&nbsp; &nbsp; &nbsp; &nbsp; "message":"%msg:::json%","<wbr>program_name":"%programname%<wbr>","pri_text":"%pri-text%"<wbr>,"hostname":"%HOSTNAME%",<wbr>"tag":"%syslogtag%"}}n"
Filter Configuration
STEP 1. Navigate to the filter section of the file.
#*****************************************************************#
# FILTER SECTION #
#*****************************************************************#
#Filter messages and send only the relevant one
#For more information and other filter options please refer to:
#http://www.rsyslog.com/doc/v8-stable/configuration/filters.html
#This will filter messages and send only the one with program name equal to: myApp
#:programname, isequal, "myapp"
#This will filter messages and send only the one with facility equal to: user
#:syslogfacility-text, isequal, "user"
STEP 2. If you do not want to send the entirety of your syslog data, configure syslog to send logs only from your application, rather than entire messages coming from your Linux OS. Using rsyslog filters, forward only those messages that successfully pass your filter.
For example, to filter only application with the name myapp:
To filter only applications writing to facility user:
You can also filter by other parameters and you can use regular expressions as well. Find out more here.
Destination Configuration
STEP 1. Navigate to destination section.
#!bash
#*****************************************************************#
# DESTINATION SECTION #
#*****************************************************************#
#Send with UDP
*.* @<cx_syslog_endpoint>;CoralogixSyslogFormat
STEP 2. Configure rsyslog to send logs via UDP protocol using port 5140.
STEP 3. [Optional] Redirect your syslog messages to your local file to see the exact data that is being sent to Coralogix. This step allows you to:
debug
check how logs are written locally
filter your syslog data based on your application name, but are unsure of the exact name of the process
Uncomment this line:
Example
Here is an example for the log output of an application myapp sending log: Hello World!:
#!bash
my-user@test-machine:~$ tail -f /var/log/messages
Nov 10 21:10:06 127.0.0.1/127.0.0.1 crx=1 crxversion=1 crxtype=syslog crxcompid=1
crxpkey=11111111-1111-1111-1111-1111111111 crxapp=myapp crxsubsys=mydal crxhostname=hostname1
crxtag='' <CRX.TIME_STAMP=1478812206820706> <CRX.PRI=daemon.err> <CRX.CATEGORY_REWRITE=''>
<CRX.SEVERITY_REWRITE=''> <CRX.MSG_REWRITE=''> <CRX.PROGRAM_NAME=my-app1> <CRX.MSG=Hello World!>
crxapp=myapp: name of the application
<CRX.PROGRAM_NAME=my-app1>: process/program name that sent the log line to syslog
If you defined several templates for each program/process name, then instead of using one generic redirect rule
use a conditional redirect, such as:
#!bash
if $programname == 'mydal' then @@<cx_syslog_endpoint>;CoralogixSyslogFormat1
if $programname == 'myclient' then @@<cx_syslog_endpoint>;CoralogixSyslogFormat2
Note:
- By default, syslog listens for messages on a LOCAL Unix domain socket. In you are sending messages to your local syslog using UDP, you are required to enable this option by following these instructions.
STEP 4. Save the file and restart rsyslog. The command to restart rsyslog daemon can vary from one Linux distribution to another, but in most cases it will be:
Test Your Configuration
STEP 1. To send a test message, use the Linux logger command:
This should send a message "Hello World!" with severity information. If you enabled the option to redirect your syslog messages to a local file, you should see this message with the command:
If you don’t see the message, check your configuration.
STEP 2. Navigate to the ‘Log Query’ menu in your Coralogix Explore UI. Press the Go button to search for logs from the last 15 minutes. If you see your logs, you are now connected to Coralogix. If not, book an implementation session.
Docker Syslog Configuration
This section describes how to work with Docker syslog driver and redirect your messages to Coralogix server.
Docker provides several log drivers that can redirect console output logs to a log server. View a complete list of log drivers here.
STEP 1. Ensure that the host running your Docker container has a syslog daemon up and running:
STEP 2. Configure your syslog to forward messages to Coralogix server. Refer to the configuration steps shared earlier in this document.
STEP 3. Run your docker with the –log-driver
option, for instance:
If you are using docker-compose V2, you can alternatively use:
my-container1:
image: ubuntu
entrypoint: /bin/sh -c "while true; do echo hello world; sleep 1; done"
logging:
driver: "syslog"
Your logs should now appear in Coralogix dashboard.
Support
Need help?
Our world-class customer success team is available 24/7 to walk you through your setup and answer any questions that may come up.
Feel free to reach out to us via our in-app chat or by sending us an email at [email protected].
