This Coralogix Jenkins plugin adds support for sending console logs & stats and pushes tags to Coralogix.
NOTE: The Coralogix plugin will work on Jenkins version 2.277.2 and above, if your Jenkins isn’t in the mentioned versions, you may try our Curl commands located further in the doc.
hpi
file from GitHub releaseshpi
file in the directory $JENKINS_HOME/plugins
This document includes cluster dependent URL’s. Each URL has a variable part (in Italic). Please match this part with a row entry within the following table. Copy the table row entry located under the column that matches the top level domain of your Coralogix account (.com, .in etc.). Choose the correct region from the drop box.
Region | EU (.com) | IN(.in) | US(.us) |
Cluster URL | coralogix.com | coralogix.in | app.coralogix.us |
Go to Manage Jenkins
, open Configure system
, find Coralogix
section and configure your account private key for sending system/audit/security logs and metrics (take note that Send system log wont chcek since it’s not currently supported):
You can configure as many keys as you want.
If your Coralogix account top level domain is different than ‘.com’ overwrite the Coralogix API endpoint
value by going to the Advanced...
section and inserting,
https://api.Cluster URL
Before usage you need to create Jenkins credentials with Coralogix private key for your team,
go to Manage Jenkins > Manage Credentials and click on Jenkins under Stores scoped to Jenkins.
You will be welcomed by this table:
Next, create a new credentail of kind: Coralogix API key, this keys’ value is taken from: Data flow > API keys copy the “Alerts, Rules and Tags API Key” (the first on the list) and insert it into the field.
This will allow us to use the “push tags” function, since it will allow creation of a tag each time there is a build in the pipe.
To push Tags you need to go under your config and click add build step.
Select Push Tags to Coralogix and select the Tags key from your credentials.
This plugin supports sending build logs and tags pushing both for Freestyle project and Pipelines.
Send your build logs to Coralogix.
Freestyle project
Just check the Send build logs to Coralogix, select Private Key, and provide Application name:
This is the Groovy implementation:
pipeline { agent any stages { stage('Test') { steps { echo "Hello world!" } } } post { always { coralogixSend privateKeyCredentialId: 'coralogix-production', application: 'MyApp', subsystem: "${env.JOB_NAME}", splitLogs: true } } }
It’s possible to use Curl command to create a log, choose the correct endpoint and run the command below.
NOTE: “text”, “severity” are optional fields.
Cluster | Endpoint |
EU | https://api.coralogix.com/logs/rest/singles |
US | https://api.coralogix.us/logs/rest/singles |
IN | https://api.app.coralogix.in/logs/rest/singles |
curl --location --request POST '<endpoint>' \ --header 'private_key: <privatekey>' \ --header 'Content-Type: application/json' \ --data-raw '{"applicationName": "prd", "subsystemName": "app", "text": "hello world", "severity": "3"}'
Send your pipeline metrics to Coralogix.
This is the Groovy
implementation:
pipeline { agent any stages { stage('Test') { steps { echo "Hello world!" } } } post { always { coralogixMetricsSend privateKeyCredentialId: 'coralogix-production', application: 'MyApp', subsystem: "${env.JOB_NAME}", splitStages: false } } }
Push version tag to Coralogix.
Freestyle project

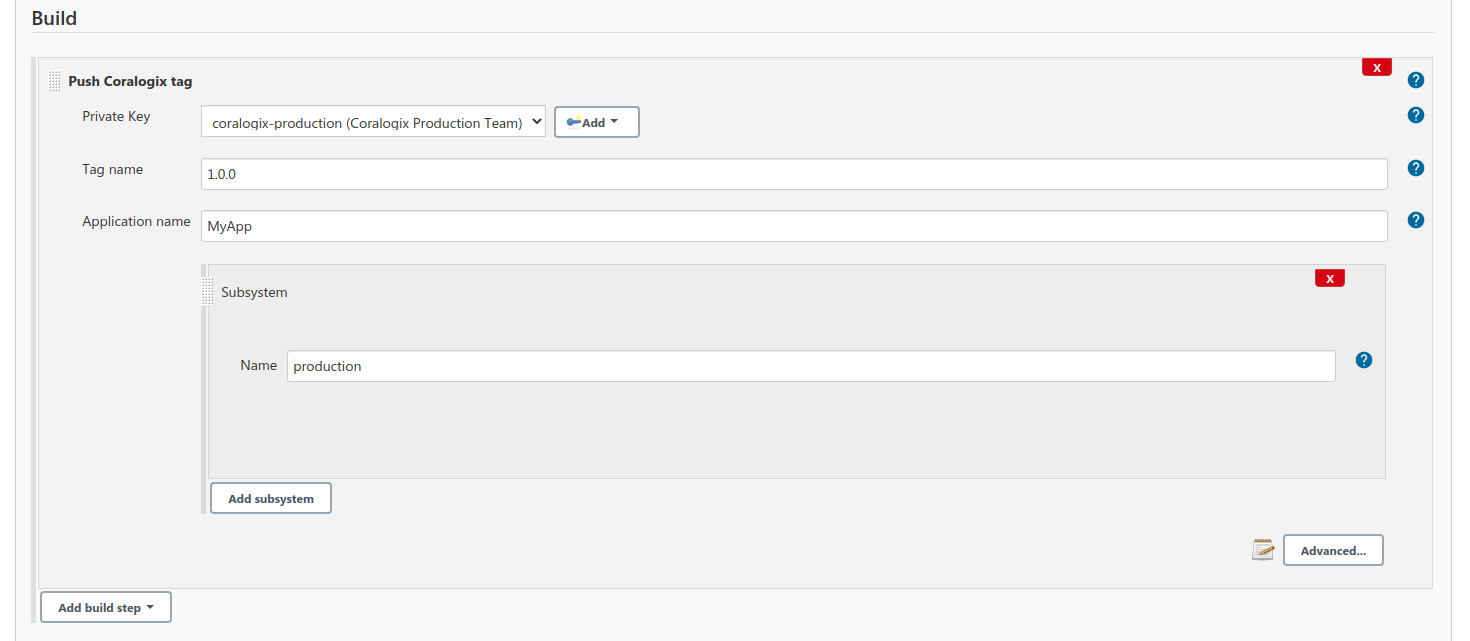

Add build step Push Coralogix tag and configure:
This is the Groovy
representation of Push Coralogix tag
build step:
pipeline { agent any stages { stage('Test') { steps { echo "Hello world!" } } } post { success { coralogixTag apiKeyCredentialId: 'coralogix-production-api', tag: '1.0.0', applications: [ [name: 'MyApp'] ], subsystems: [ [name: 'staging'], [name: 'production'] ], icon: 'https://raw.githubusercontent.com/coralogix/jenkins-coralogix-plugin/master/docs/images/logo.svg' } } }
It’s possible to use Curl command to create a tag, choose the right Endpoint, add the “APIkey” and run the command below.
NOTE: “timestamp” and “iconUrl” are optional fields.
Cluster | Endpoint |
.com | https://webapi.coralogix.com/api/v1/external/tags/ |
.us | https://webapi.coralogix.us/api/v1/external/tags/ |
.in | https://webapi.app.coralogix.in/api/v1/external/tags/ |
curl --location --request POST '<yourCoralogixEndpoint>' \ --header 'Authorization: Bearer <APIKey>' \ --header 'Content-Type: application/json' \ --data-raw '{ "name": "test tag", "timestamp": <currentTimeinMilliseconds> "application": ["prd", "dev"], "subsystem": ["app", "mobile"], "iconUrl": "<iconUrl>" }'
The Coralogix Plugin is licensed under the Apache 2.0 License.
