Kibana View Kibana View

Last Updated: Mar. 30, 2022

Coralogix provides you the ability to easily switch views and view your data either on Coralogix’s cutting-edge dashboard or in the good old Kibana. Use Coralogix to view our machine learning insights and for your troubleshooting while performing your day-to-day data slicing with Kibana 7.x.

In addition to providing out-of-the-box dashboards in Kibana, we’ve added hosted visualizations for metrics in Grafana and for tracing in Jaeger.

To view your data in Kibana, simply click the Kibana icon on the right side of the top menu.

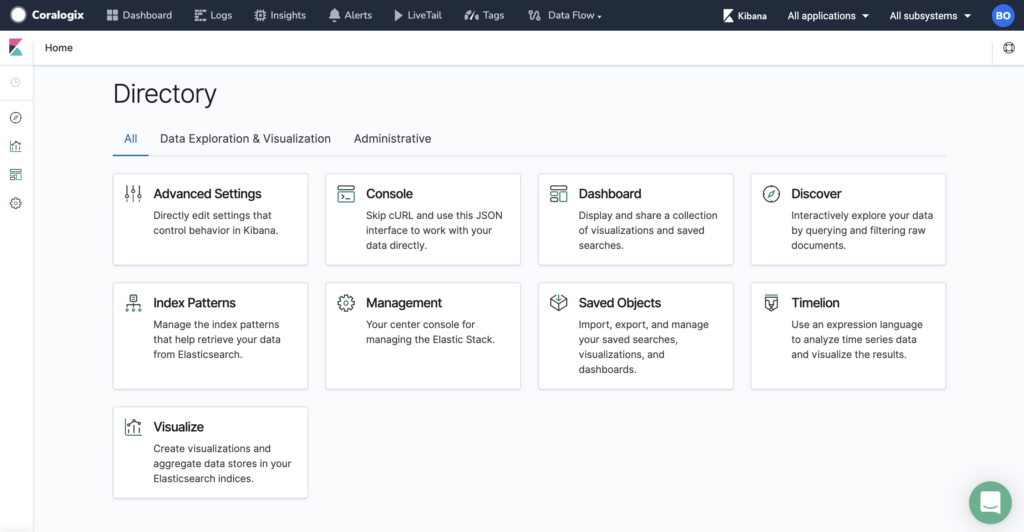

You will see the Kibana main screen, switch back to Coralogix at any time using the navigation menu:

On the left side, you can see shortcuts to:

  • Recently viewed – useful when you want to go back to the recent search/visualization/dashboard
  • Discover – search/review logs in Kibana
  • Visualize – open or create new visualization
  • Dashboard – open or create new dashboard
  • Management – review/refresh index patterns, manage saved objects, Kibana settings

Discover

Discover enables you to quickly search and filter your data, and get information about the structure of the fields.

Discover enables you to quickly search and filter your data, and get information about the structure of the fields
  • In the top left of the screen, there is a menu:
    • New – create new search
    • Save – save the current search for later use
    • Open – open earlier saved query
    • Share – Share a link to your search
  • Below the menu there is a search bar – use the Lucene query language to easily copy queries from/to Kibana to/from Coralogix if needed.
  • Next to the search bar, there is a time filter. Use it if you need to specify a timeframe.

Below the search bar there is a “+Add filter” button. Use it for easier filtering. Details about the feature: https://www.elastic.co/guide/en/kibana/6.8/field-filter.html

Discover

For example, coralogix.metadata.applicationName and log fields were added as display filters.

To add a new display filter click on the Add button next to the field which is on the left at Available fields column.

To remove a display filter click on the Remove button next to the field which is on the left of in the Selected fields.

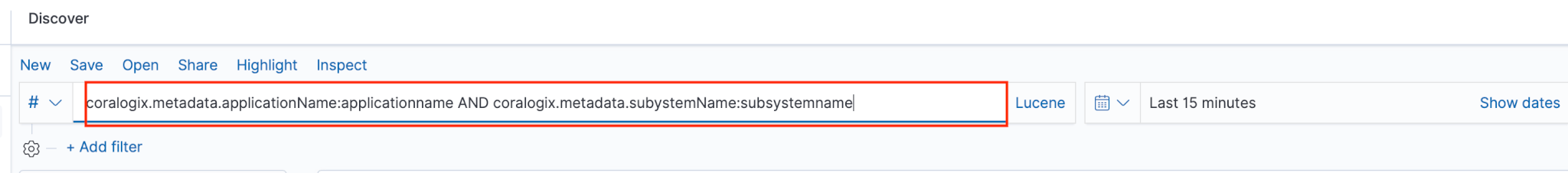

Query different applications in Kibana

Even though Kibana doesn’t have the Coralogix left filter for Applications/Subsystems, you may limit your search to logs from a specific application and subsystem by applying the following filters to your search on Kibana search bar:

  • coralogix.metadata.applicationName:application
  • coralogix.metadata.subystemName:subsystem

Additional Kibana Tutorials

Search: https://www.elastic.co/guide/en/kibana/current/discover.html

Visualize: https://www.elastic.co/guide/en/kibana/current/visualize.html

Timelion (time series data visualizations): https://www.elastic.co/guide/en/kibana/current/timelion.html
