OpenTelemetry using ECS Fargate

This tutorial demonstrates how to install and configure OpenTelemetry (OTel) Collector to send your traces on ECS Fargate to Coralogix.

Installation & Configuration

1. In your AWS Console, go to AWS Systems Manager under Application Management.

2. Click on Parameter Store.

3. Create parameter. Specify the name of the new parameter Coralogix-otel-col-config.

4. Paste the OTel Collector configuration in the value.

extensions:
  health_check:
receivers:
  awsxray:
    endpoint: 0.0.0.0:2000
    transport: udp
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint:
processors:
  batch/traces:
    timeout: 5s
    send_batch_size: 256
  resourcedetection:
    detectors: [env, ec2, ecs]
    timeout: 5s
    override: true
exporters:
  otlp/traces:
   endpoint: <CXOtelEndpoint>
   headers:
      Authorization: Bearer <CXPrivateKey>
      ApplicationName: "<CXApplicationName>"
      ApiName: "<CXSubsystem>"
      CX-Application-Name: "<CXApplicationName>"
      CX-Subsystem-Name: "<CXSubsystem>"
service:
  extensions: [health_check]
  pipelines:
    traces:
      receivers: [awsxray,otlp]
      processors: [resourcedetection,batch/traces]
      exporters: [otlp/traces]

5. Input the following environment variables:

• CXDomain: Coralogix domain associated with your account
• CXApplicationName & CXSubsystem: ApplicationName and subsystem names
• CXPrivateKey: Coralogix private key
• CXOtelEndpoint: OpenTelemetry endpoint associated with your Coralogix domain

6. Click Create Parameter.

7. In your AWS Console , go to CloudFormation.

8. Click Create Stack.

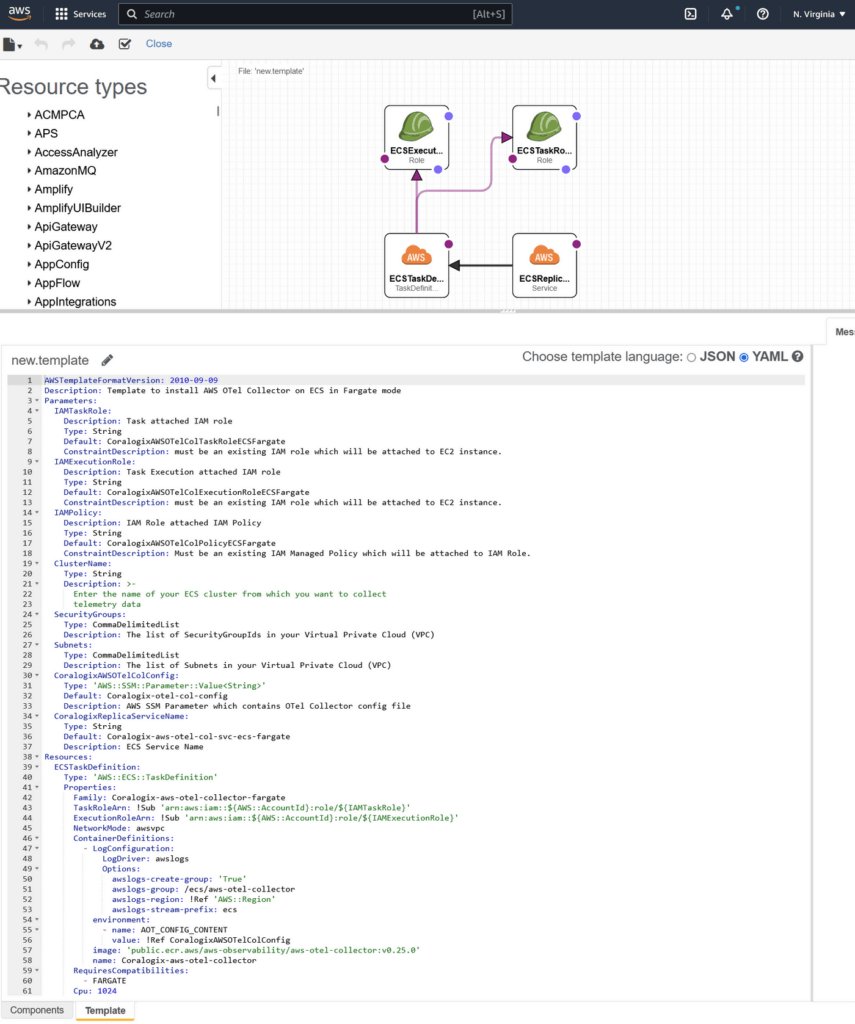

9. Copy the following CloudFormation template to CloudFromation Designer. It installs the OTel Collector and defines the ECS task.

AWSTemplateFormatVersion: 2010-09-09
Description: 'Template to install AWS OTel Collector on ECS in Fargate mode'
Parameters:
  IAMTaskRole:
    Description: Task attached IAM role
    Type: String
    Default: CoralogixAWSOTelColTaskRoleECSFargate
    ConstraintDescription: must be an existing IAM role which will be attached to EC2 instance.
  IAMExecutionRole:
    Description: Task Execution attached IAM role
    Type: String
    Default: CoralogixAWSOTelColExecutionRoleECSFargate
    ConstraintDescription: must be an existing IAM role which will be attached to EC2 instance.
  IAMPolicy:
    Description: IAM Role attached IAM Policy
    Type: String
    Default: CoralogixAWSOTelColPolicyECSFargate
    ConstraintDescription: Must be an existing IAM Managed Policy which will be attached to IAM Role.
  ClusterName:
    Type: String
    Description: Enter the name of your ECS cluster from which you want to collect telemetry data
  SecurityGroups:
    Type: CommaDelimitedList
    Description: The list of SecurityGroupIds in your Virtual Private Cloud (VPC)
  Subnets:
    Type: CommaDelimitedList
    Description: The list of Subnets in your Virtual Private Cloud (VPC)
  CoralogixAWSOTelColConfig:
    Type: AWS::SSM::Parameter::Value<String>
    Default: Coralogix-otel-col-config
    Description: AWS SSM Parameter which contains OTel Collector config file
  CoralogixReplicaServiceName:
    Type: String
    Default: Coralogix-aws-otel-col-svc-ecs-fargate
    Description: ECS Service Name
Resources:
  ECSTaskDefinition:
    Type: 'AWS::ECS::TaskDefinition'
    Properties:
      Family: Coralogix-aws-otel-collector-fargate
      TaskRoleArn: !Sub 'arn:aws:iam::${AWS::AccountId}:role/${IAMTaskRole}'
      ExecutionRoleArn: !Sub 'arn:aws:iam::${AWS::AccountId}:role/${IAMExecutionRole}'
      NetworkMode: awsvpc
      ContainerDefinitions:
        - Name: Coralogix-aws-otel-collector
          Image: public.ecr.aws/aws-observability/aws-otel-collector:v0.25.0
          LogConfiguration:
            LogDriver: awslogs
            Options:
              awslogs-create-group: 'True'
              awslogs-group: /ecs/aws-otel-collector
              awslogs-region: !Ref 'AWS::Region'
              awslogs-stream-prefix: ecs
          Environment:
            - Name: AOT_CONFIG_CONTENT
              Value: !Ref CoralogixAWSOTelColConfig
      RequiresCompatibilities:
        - FARGATE
      Cpu: 1024
      Memory: 2048
    DependsOn:
      - ECSTaskRole
      - ECSExecutionRole
  ECSReplicaService:
    Type: 'AWS::ECS::Service'
    Properties:
      TaskDefinition: !Ref ECSTaskDefinition
      Cluster: !Ref ClusterName
      LaunchType: FARGATE
      SchedulingStrategy: REPLICA
      DesiredCount: 1
      ServiceName: !Ref CoralogixReplicaServiceName
      NetworkConfiguration:
        AwsvpcConfiguration:
          AssignPublicIp: ENABLED
          SecurityGroups: !Ref SecurityGroups
          Subnets: !Ref Subnets
  ECSTaskRole:
    Type: 'AWS::IAM::Role'
    Properties:
      Description: Allows ECS tasks to call AWS services on your behalf.
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: ecs-tasks.amazonaws.com
            Action: 'sts:AssumeRole'
      Policies:
        - PolicyName: !Ref IAMPolicy
          PolicyDocument:
            Version: 2012-10-17
            Statement:
              - Effect: Allow
                Action:
                  - 'logs:PutLogEvents'
                  - 'logs:CreateLogGroup'
                  - 'logs:CreateLogStream'
                  - 'logs:DescribeLogStreams'
                  - 'logs:DescribeLogGroups'
                  - 'xray:PutTraceSegments'
                  - 'xray:PutTelemetryRecords'
                  - 'xray:GetSamplingRules'
                  - 'xray:GetSamplingTargets'
                  - 'xray:GetSamplingStatisticSummaries'
                  - 'ssm:GetParameters'
                Resource: '*'
      RoleName: !Ref IAMTaskRole
  ECSExecutionRole:
    Type: 'AWS::IAM::Role'
    Properties:
      Description: >-
        Allows ECS container agent makes calls to the Amazon ECS API on your
        behalf.
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Sid: ''
            Effect: Allow
            Principal:
              Service: ecs-tasks.amazonaws.com
            Action: 'sts:AssumeRole'
      ManagedPolicyArns:
        - 'arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy'
        - 'arn:aws:iam::aws:policy/CloudWatchLogsFullAccess'
        - 'arn:aws:iam::aws:policy/AmazonSSMReadOnlyAccess'
      RoleName: !Ref IAMExecutionRole

10. Click Create Stack.

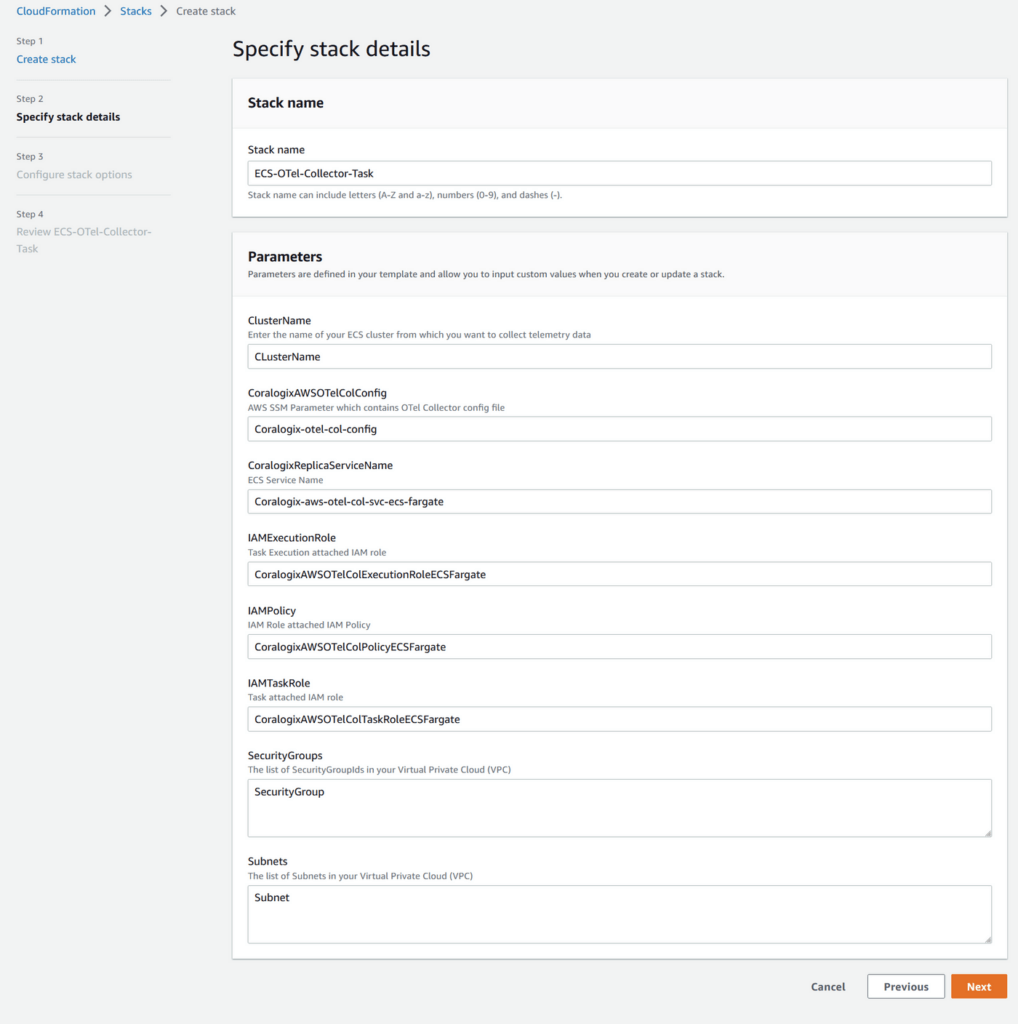

11. Update ECS Cluster Name, Security Group Ids, Subnets in your VPC.

12. Click Next.

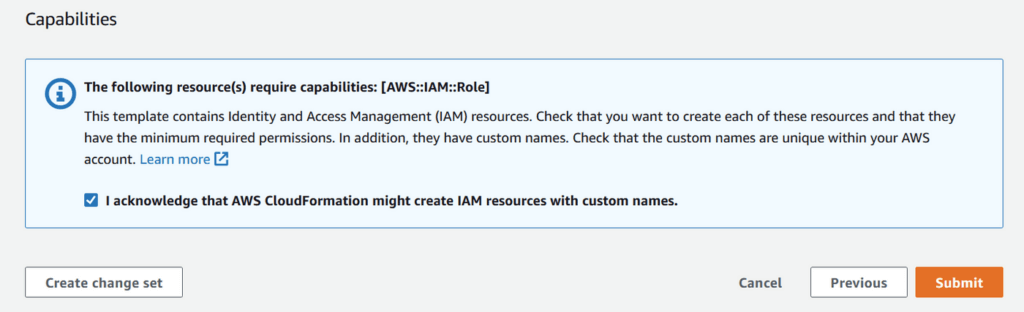

12. Tick ‘I acknowledge that AWS…’ and click Submit.

Validation

1. To validate that your stack was deployed, go to the CloudFormation Stacks console and check if the ECS-OTel-Collector-Task stack status is CREATE_COMPLETE.

2. To validate that your deployment is properly running, go to the ECS Console, select the proper region, and select the cluster you used to deploy the AWS OpenTelemetry Collector. Navigate to the Tasks tab and check if the task is running.

3. To use OTEL to ship traces, click on the task and expand the Containers list. In the Network > Private IP or Public IP sections, send telemetry data to these addresses on port 4317.
