Send Logs using AWS Kinesis Data Firehose Send Logs using AWS Kinesis Data Firehose

Last Updated: Feb. 29, 2024

Amazon Kinesis Data Firehose delivers real-time streaming data to destinations like Amazon Simple Storage Service (Amazon S3), Amazon Redshift, or Amazon OpenSearch Service (successor to Amazon Elasticsearch Service), and now supports delivering streaming data to Coralogix. There is no limit on the number of delivery streams, so it can be used for retrieving data from multiple AWS services.

Coralogix is an AWS Partner Network (APN) Advanced Technology Partner with AWS  Competencies in DevOps. The platform enables you to easily explore and analyze logs to gain deeper insights into the state of your applications and AWS infrastructure. Analyze all of your AWS service logs while storing only those you need. Generate metrics from aggregated logs to uncover and alert on trends in your AWS services.

Setup Options

  • Automated Integration Package (Recommended). Streamline ingesting and analyzing logs from your AWS resources using our automated integration packages.
  • Manual Integration. Alternatively, use our manual integration below.
  • Terraform. Install and manage the Firehose Logs integration with AWS services as modules in your infrastructure code.
  • CloudFormation. Install our AWS Kinesis Firehose Logs with CloudFormation Template and incorporate the configurations and settings via CloudFormation to automate your Firehose logs collection setup and management.

Automated Integration Packages

Streamline your setup process using our automated integration depending on the integration type (e.g. CloudWatch, WAF). The selected package lets you preconfigure and deploy a template, replicating the manual setup

Integration Options

Choose one of the integration types based on the format of the logs that are being sent:

  • AWS CloudWatch (JSON) – CloudWatch logs store records of events and data generated by various AWS resources, applications, and services. These logs provide insights into system behavior, errors, and operational performance.
  • AWS CloudTrail (CloudWatch) – CloudTrail provides comprehensive records of actions performed within your Amazon Web Services (AWS) account. This includes API calls, configuration changes, and user activities.
  • Web Application Firewall (WAF) – WAF logs are detailed records of web traffic and security events generated by AWS Web Application Firewall. These logs contain critical information about incoming requests, such as IP addresses, request types, response codes, and potential security threats or attacks.
  • Amazon Elastic Kubernetes Service (EKS) Fargate – EKS Fargate logs are the records of events, activities, and information generated by containers running within the EKS Fargate environment. These logs provide essential insights into the operation and performance of your containerized applications.
  • Generic Logs – This integration provides a wider array of data sources, including Default and RawText types. Its generic nature allows you to select the source of your logs flexibly. You can also define the application and subsystem names as dynamic extractions during the setup, accommodating various AWS resources and services.

Configuration

STEP 1. From your Coralogix toolbar, navigate to Data Flow > Integrations.

STEP 2. In the Integrations section, search “Firehose” and select one of the following:

  • AWS CloudWatch Logs via Firehose
  • AWS CloudTrail Logs via Firehose
  • AWS EKS Fargate Logs via Firehose
  • AWS WAF Logs via Firehose
  • AWS Generic Logs via Firehose

STEP 3. Click ADD NEW.

STEP 4. Input your integration details.

  • Integration Name. Enter a name for your integration. This will be used as a stack name in CloudFormation.
  • API Key. Enter your Send-Your-Data API key or click CREATE A NEW KEY to create a new API key for the integration.
  • Application Name. Enter an application name. The default name is AWS.
  • Subsystem Name. Enter a subsystem name. The default name
  • Kineses Stream ARN. [Optional] Enter the ARN of the Kinesis stream if using Amazon Kinesis Data Streams as a source for logs.
  • Input Source [for Generic Logs Integration]. The data source in AWS Kinesis Data Firehose determines the integrationType parameter value. For extracting the applicationName and subsystemName values dynamically, an explanation is in the Manual Setup: Step 4 and a reference table in the Dynamic Values Table section of this document.
  • AWS Region. Select your AWS region from the dropdown menu.
  • AWS PrivateLink (Advanced Settings). [Optional] Enabling AWS PrivateLink is recommended to ensure a secure and private connection between your VPCs and AWS services. Find out more here.

STEP 6. Click NEXT.

STEP 7. Review the instructions for your integration. Click CREATE CLOUDFORMATION.

STEP 8. You will be rerouted to the AWS website. Verify that all of the auto pre-populated values are correct. Click Create Stack.

STEP 9. Return to the Coralogix application, where you will find instructions on configuring the log delivery from the selected input source to AWS Kinesis Data Firehose (if relevant).

Notes:

If you provide a Kinesis Stream ARN, Coralogix assumes that the data is in the stream and does not provide any additional instructions. It is the user’s responsibility to deliver data to the stream. In place of the instructions, you will see a message that prompts the user to confirm the integration.

STEP 10. Click COMPLETE to close the module.

STEP 11. [Optional] Deploy the extension package of your choice to complement your integration needs. We offer the following extensions for data originating from CloudTrail and WAF:

  • AWS CloudTrail
  • AWS WAF

STEP 12. View the logs by navigating to Explore > Logs in your Coralogix toolbar. Find out more here.

Manual Setup

Configuration

STEP 1. Navigate to the Kinesis Data Firehose console and choose ‘Create delivery stream’.

STEP 2. Under ‘Choose source and destination’:

  • Source: Choose Direct PUT
  • Destination: Choose Coralogix
  • Delivery stream name: Fill in the desired stream name.

STEP 3. Scroll down to ‘Destination settings’:

STEP 4. Scroll down to ‘Parameters’. This section allows you to add and configure additional parameters surrounding the Coralogix platform.

The following parameters are available:

ParameterDescription
applicationNameA comma-separated list of application name sources
applicationNameDefaultDeprecated
subsystemNameA comma-separated list of subsystem name sources
subsystemNameDefaultDeprecated
integrationTypeData structure:
– CloudWatch_JSON: Data from CloudWatch log groups
– WAF: CloudWatch_CloudTrail
– EksFargate
– Default
– RawText: Use for VPC flow logs
dynamicMetadataDeprecated

A name source can be a literal string (something), a quoted string (“something”), or a field reference (e.g. ${logGroup}). Sources in a list are evaluated in order, variables without a value are skipped. For example, ${applicationName}, MyApp for a Default integration will use applicationName field if available, otherwise it will default to MyApp.

The Dynamic Values Table section in this document serves as a reference for setting the applicationName and subsystemName dynamically.

Notes:

  • By default, your delivery stream name will be used as ‘applicationName’ and ARN as ‘subsystemName’.
  • To override the associated ‘applicationName’ or ‘subsystemName’, add a new parameter with the desired value.
    • Key: ‘applicationName’ , value – ‘new-app-name’
    • Key: ‘subsystemName’ , value – ‘new-subsystem-name’
  • The source of the data in Firehose determines the ‘integrationType’ parameter value:
    • For CloudWatch logs, use CloudWatch_JSON.
    • For CloudTrail logs in CloudWatch, use CloudWatch_CloudTrail.
    • For logs coming from EKS Fargate using our guide, use EksFargate.
    • For data sources matching the Coralogix log ingestion format, use Default .
    • For other data sources, use RawText. This moves all the text to text field of log, adds severity of Info, and generates a current timestamp. All further parsing of these logs should be done using parsing rules.

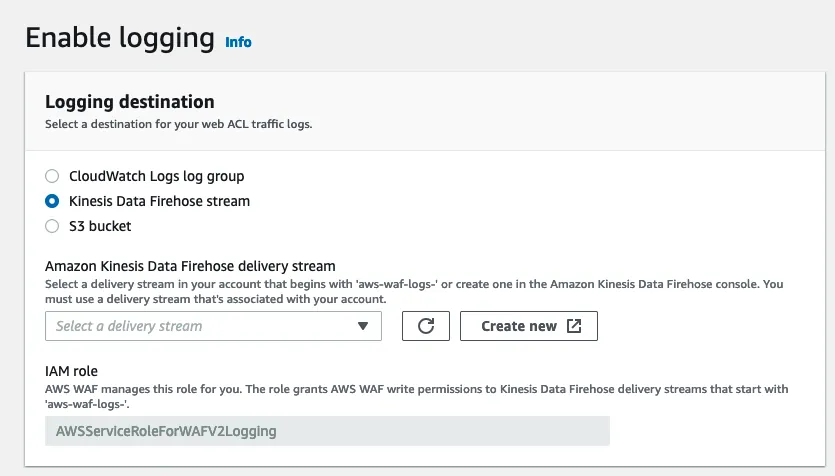

    • For logs coming from AWS WAF, use WAF. This requires configuration on WAF as follows:
  • Without adding the ‘integrationType’ parameter, the Default integration type is selected.
  • For integration of type Default, the logs should be structured according to our REST API rules.

STEP 5. Set up a recovery bucket (recommended). Enabling source data backup ensures that the data can be recovered if the record processing transformation does not produce the desired results.

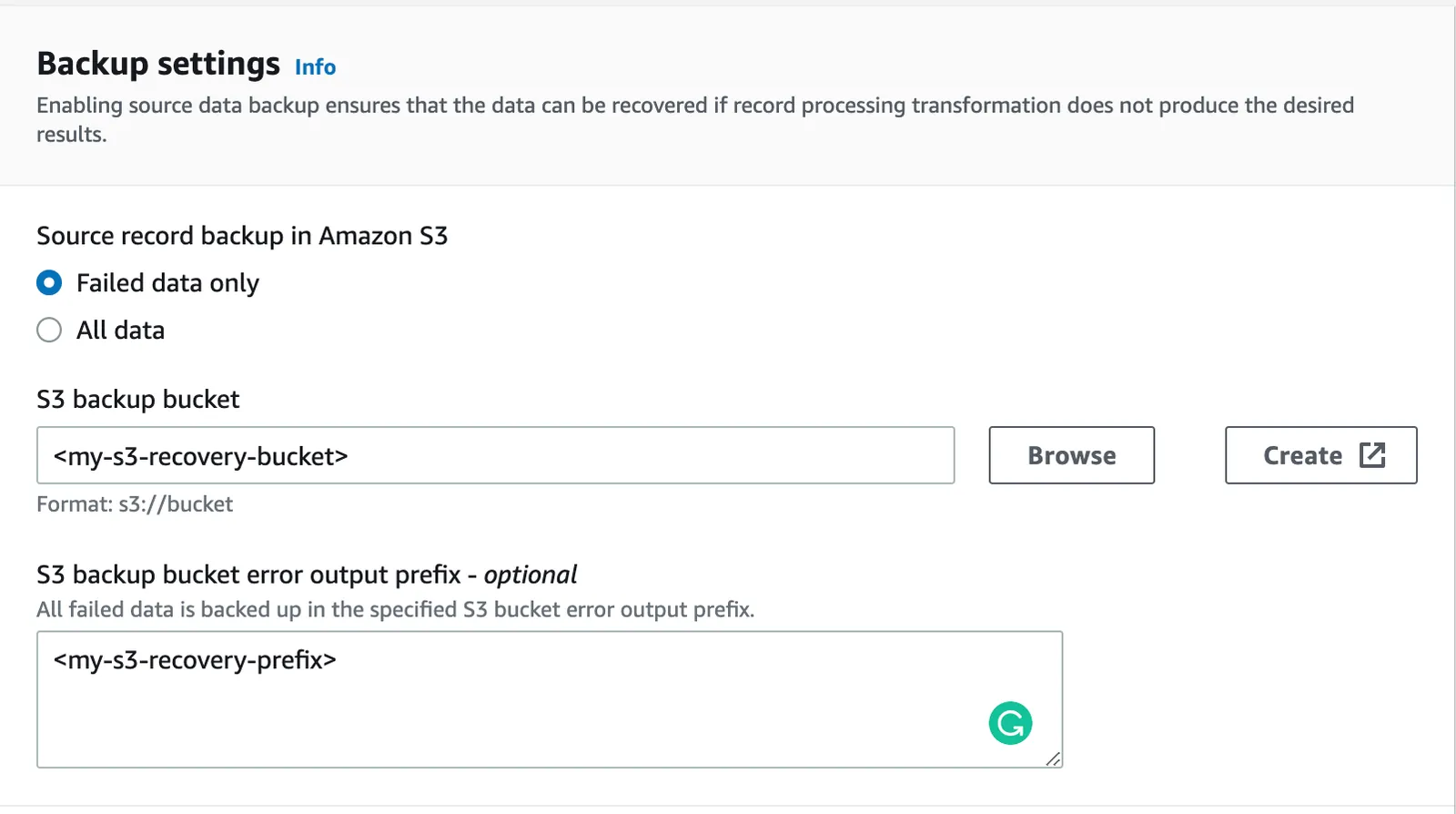

STEP 6. Scroll down to ‘Backup settings’:

  • Source record backup in Amazon S3: We suggest selecting Failed data only.
  • S3 backup bucket: Choose an existing bucket or create a new one.
  • Buffer hints, compression, encryption: Leave these fields as is.

STEP 7. Review your settings and select Create delivery stream.

Logs subscribed to your delivery stream will be immediately sent and available for analysis within Coralogix.

Data Source Configuration

Below are a couple of ways to connect your data source to Firehose.

CloudWatch Logs

To send your logs to Coralogix, create a subscription filter inside your CloudWatch log group.

First, create a new role in IAM for your Cloudwatch log group to allow sending data to Firehose.

Go to the IAM console and choose ‘Roles’ under ‘Access management’.

Click on ‘Create role’ on the right.

Under ‘Trusted entity type’ choose ‘Custom trust policy’ and insert this policy.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Service": "logs.<region_code>.amazonaws.com"
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

Note: Change <region_code> into your AWS region. e.g us-east-1

In ‘Add permissions’, click ‘Create policy’.

On the opened window, click on the ‘JSON’ tab and insert this policy:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "firehose:PutRecord",
                "firehose:PutRecordBatch"
            ],
            "Resource": [
                "<firehose_ARN>"
            ]
        }
    ]
}

Note: Change <firehose_ARN> to your Firehose Amazon Resource Name (ARN).

After creating the policy, go back to the role creation page and click on the refresh button.

Pick the newly created policy.

Give your role a name and create it.

After creating the role, go to the Cloudwatch console and choose ‘Logs groups’ under the ‘Logs’ side menu.

Create a new subscription filter for the relevant log group – <Your_log_group> -> ‘Subscription filters’ -> ‘Create Kinesis Firehose subscription filter’.

Under ‘Choose destination’:

  • For ‘Destination account’ choose ‘Current account’
  • For ‘Kinesis Firehose delivery stream’ choose the created firehose delivery stream

Scroll down to ‘Grant permission’:

  • For ‘Select an existing role’ choose the role created above

Scroll down and click on ‘Start streaming’.

Logs coming to your Cloudwatch log group will also be directed to Firehose.

Note: Use the correct integration type inside your Firehose configuration.

Kinesis Data Stream

To start sending your Kinesis data stream logs to Coralogix, connect the Data stream to Firehose.

Go to the Kinesis Data Stream console and choose ‘Create data stream’.

Under ‘Data stream configuration’:

  • Data stream name: Enter the name of the data stream

Scroll down to ‘Data stream capacity’:

  • Capacity mode: Choose ‘On-demand’

After that scroll down and click on ‘Create data stream’.

Note: to connect a kinesis data stream to a firehose delivery stream the delivery stream must use Amazon kinesis data streams as its source instead of Direct PUT .

Terraform Module Setup

Using Coralogix Terraform modules, you can easily install and manage Coralogix integrations with AWS services as modules in your infrastructure code. Our open-source modules are available on our GitHub and in the Terraform Registry. Visit our full AWS Kinesis Firehose Terraform Module documentation for more info.

For logs, install AWS Kinesis Data Firehose by adding this declaration to your Terraform project:

module "cloudwatch_firehose_coralogix_logs" {
  source                         = "coralogix/aws/coralogix//modules/firehose-logs"
  private_key                    = "XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXX"
  firehose_stream                = "coralogix-firehose-logs"
  coralogix_region               = "Europe"
  integration_type_logs          = "Default"
  source_type_logs               = "DirectPut"
}

Dynamic Values Table

For application name and/or subsystem name to be set dynamically in relation to their integrationType‘s resource fields (e.g. CloudWatch_JSON’s loggroup name, EksFargate’s k8s namespace). The source’s variable can be mapped as a string literal with pre-defined values:

FieldSource VarExpected ParameterIntegration TypeNotes
applicationName field in logsapplicationName${applicationName}DefaultNeeds to be supplied in the log to be used
subsystemName field in logssubsystemName${subsystemName}DefaultNeeds to be supplied in the log to be used
CloudWatch LogGroup namelogGroup${logGroup}CloudWatch_JSONCloudWatch_CloudTrailSupplied by AWS
kubernetes.namespace_name fieldkubernetesNamespaceName${kubernetesNamespaceName}EksFargateSupplied by the default configuration
kubernetes.container_name fieldkubernetesContainerName${kubernetesContainerName}EksFargateSupplied by the default configuration
name part of the log.webaclId fieldwebAclName${webAclName}WAFSupplied by AWS

The expected parameter for the field must be exact with no extra characters. Characters may, however, be exchanged – for instance, subsystemName parameter with value ${applicationName} or )

NoteRawText integrationType does not support dynamic values.
