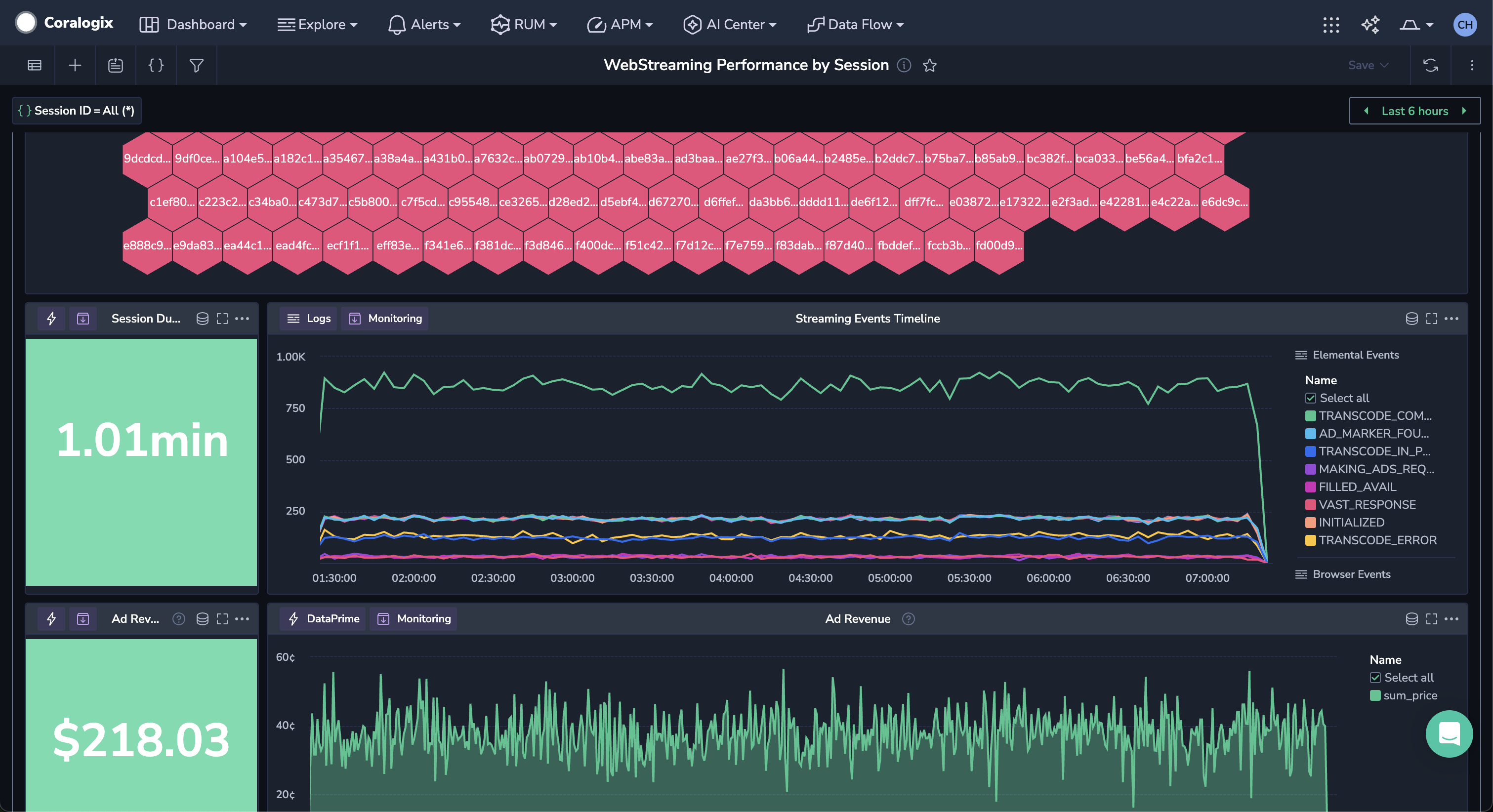

Custom Dashboards

Coralogix Custom Dashboards give you a flexible, high-performance workspace to visualize logs, metrics, and traces—together, in real time.

Whether you're monitoring a critical release, investigating latency, or trying to understand system behavior, Custom Dashboards give you the power to ask complex questions and see immediate, visual answers.

Data sources

Coralogix brings logs, metrics, and traces together in a single dashboard interface. While each widget focuses on a specific data type, dashboards can seamlessly combine visualizations from all three—making it easier to correlate and act on your data.

Queries: Turn raw data into answers

Behind every widget is a powerful query. Coralogix supports:

DataPrime for complex, cross-source, data-transformative queries.

PromQL for metric queries.

Lucene for log and span queries.

Queries allow you to define what data you’re visualizing. Use the out-of-the-box Query Builder to effortlessly construct the most complex queries, whether you're counting errors, tracking throughput, or correlating latency spikes.

Variables and filters let you reuse and refine these queries dynamically—so dashboards become interactive tools, not static reports.

Custom widgets

Each query feeds into a widget—a visual representation of your data. Coralogix offers a rich variety of widget types to help you explore patterns, spot anomalies, and track key metrics.

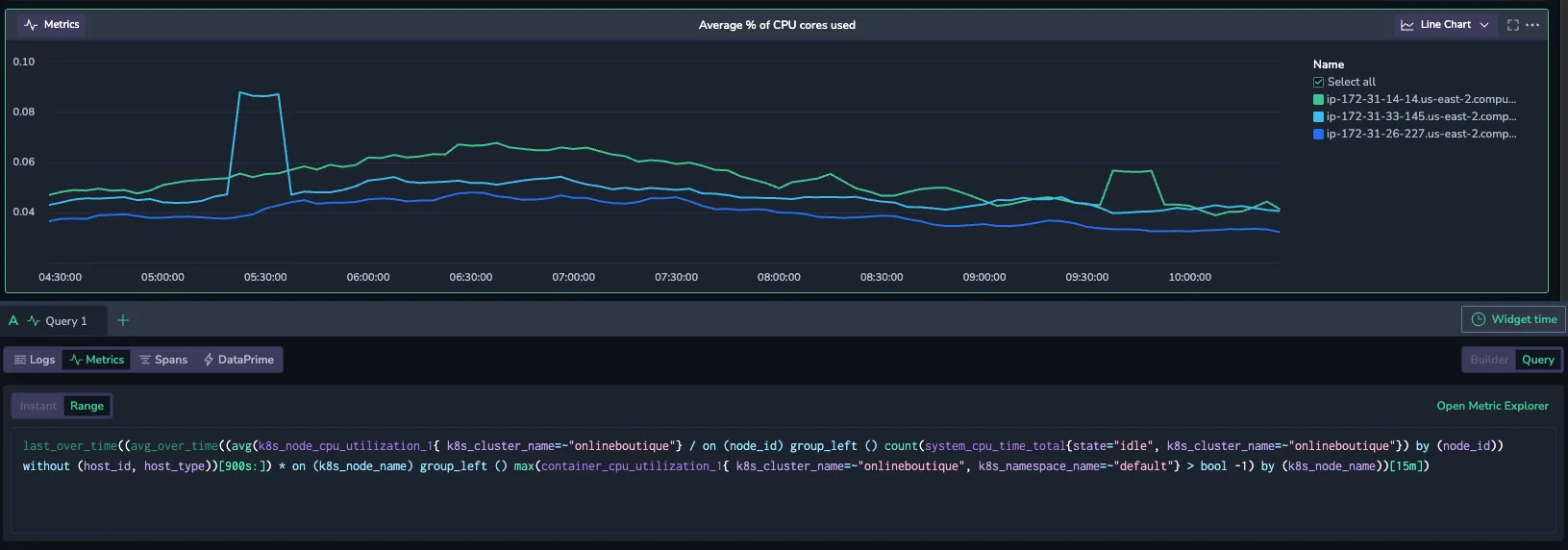

Time series: Visualize trends over time with line charts. Ideal for performance metrics and alerts.

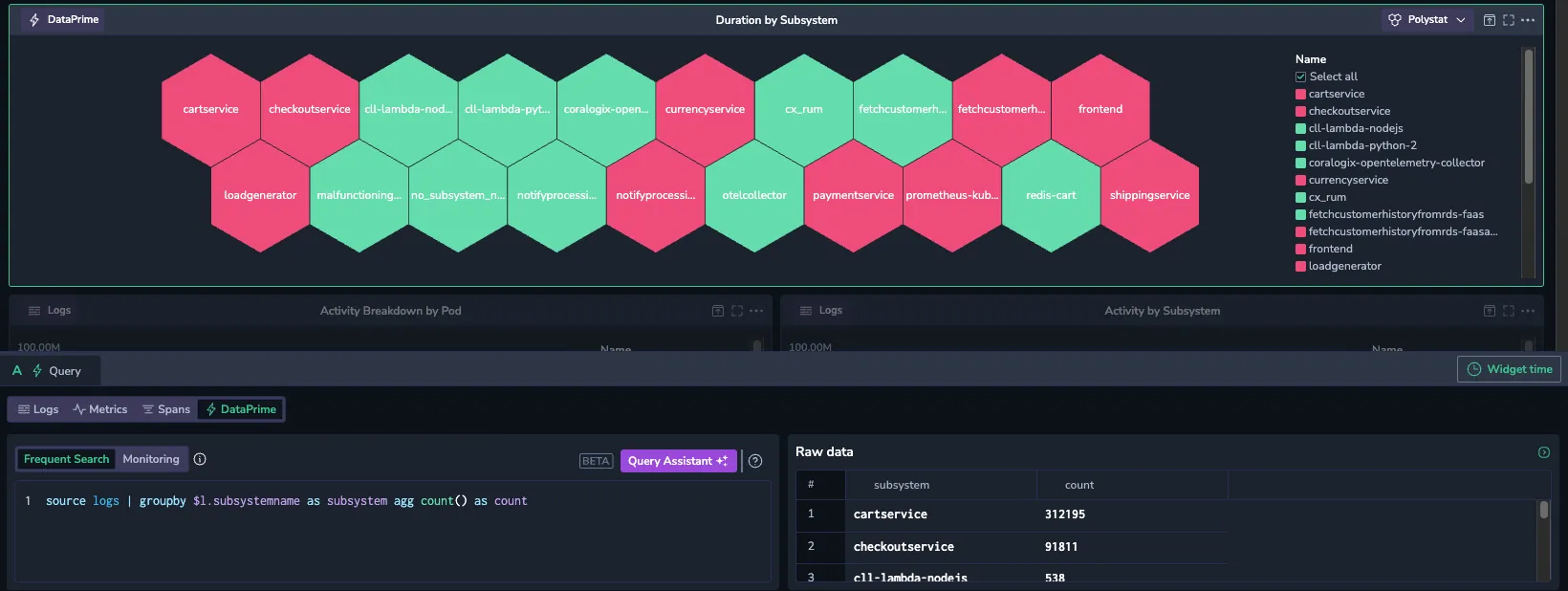

Metrics: Gauges and polystats highlight current values, thresholds, and statuses at a glance.
Tables: Display structured data for detailed side-by-side metric inspection.

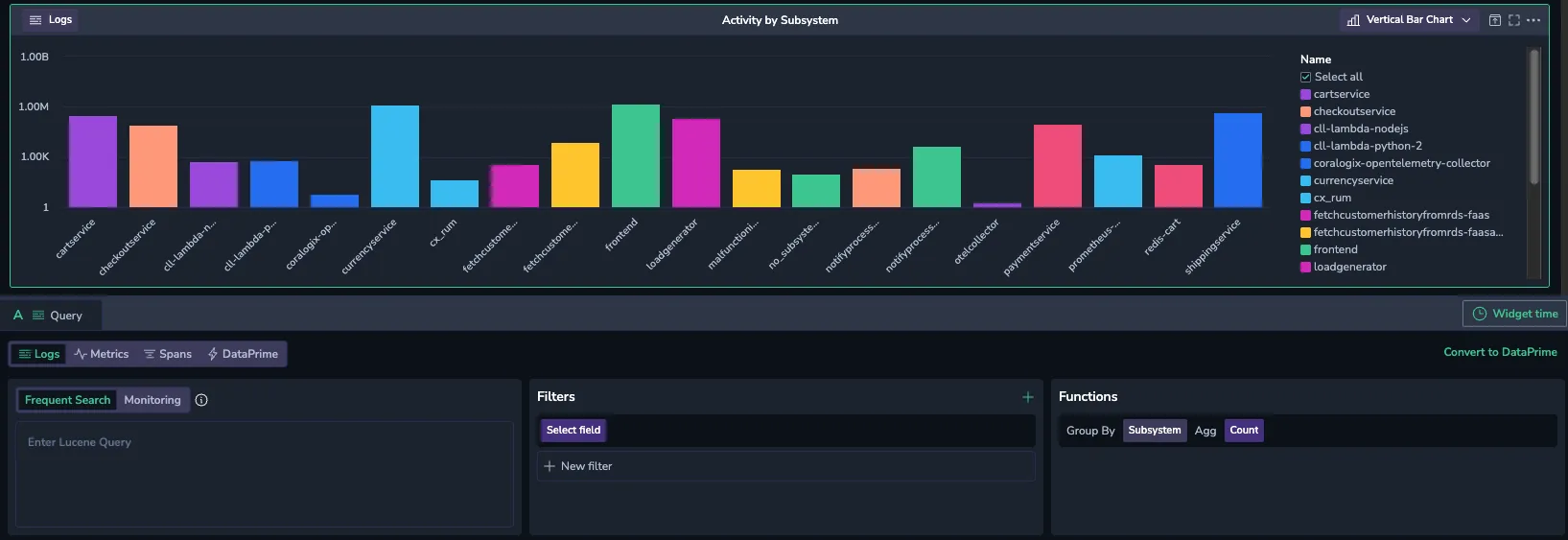

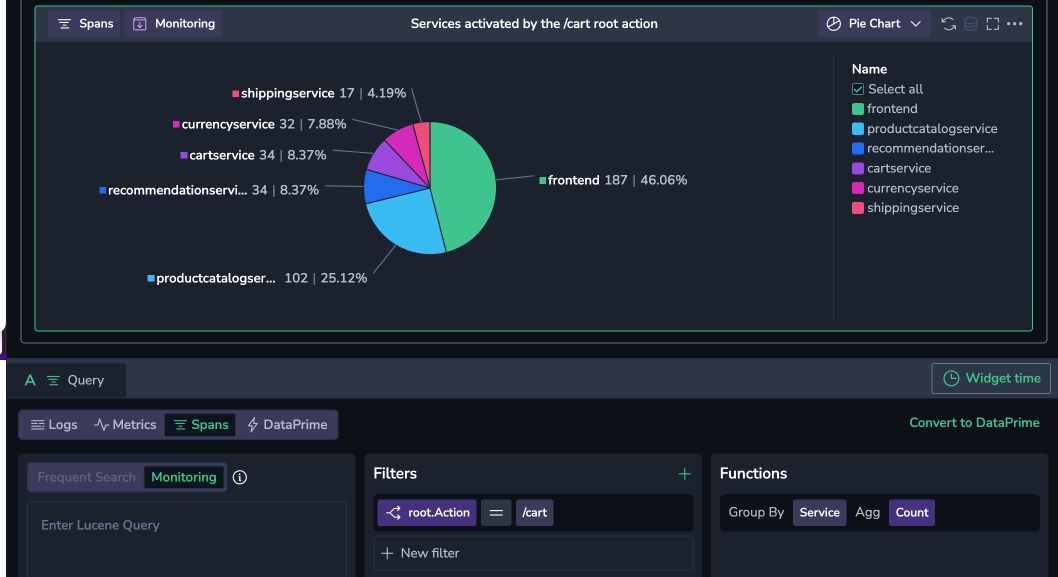

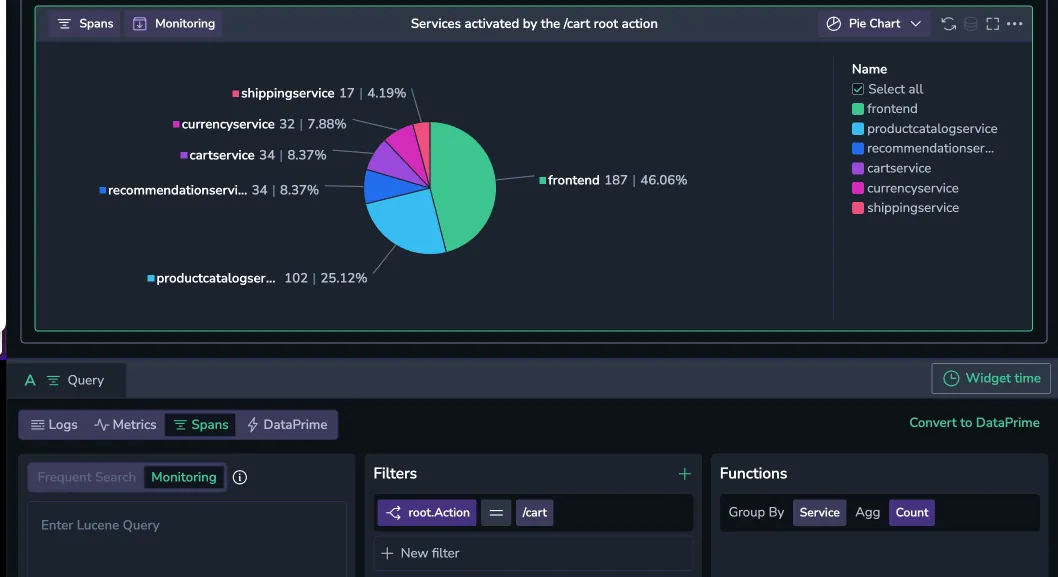

Charts: Use bar and pie charts for proportional breakdowns of value.
Text widgets: Add markdown-based explanations, headers, or contextual notes directly. within the dashboard.

By combining these widget types, you can build focused, interactive dashboards, tailored to your observability and monitoring needs.

Feature overview

Custom Dashboards help you to go from high-level monitoring to granular investigation in just a few clicks.

Add custom actions to jump from a chart in one custom dashboard to another with the same filters.
Use custom annotations to mark deployments or incidents.
Create variables once and reuse them across your widgets.
Auto-refresh dashboards for live, streaming updates.
Share, export, or duplicate dashboards to scale your workflows across teams.

Additional resources

Introduction to Coralogix Custom Dashboards

General Overview of Custom Dashboards

Grafana Plugin
