Multi-Gauges

Create a customized multiple-gauge visualization in Custom Dashboards.

Overview

A gauge is a visual tool that displays a single value within a specified range, often resembling a speedometer or dial, and is typically used to represent key metrics and performance indicators at a glance. Gauges incorporate thresholds which allow you to change the appearance of the visualization when certain values are met or exceeded. When you group a data set by a specific parameter, you create a multi-gauge, where each gauge represents a subset of the data. This enables simultaneous comparison of multiple metrics across different categories or groups, providing a broader view of performance.

Getting started

In a custom dashboard, click the + icon to add a widget. To get started, drag and drop the Gauge widget from your left-hand sidebar.

Select a data source

In the lower screen panel, select logs, metrics, or spans as your data source.

Build a query

Enter a PromQL query as the basis of your widget in the lower Query panel.

If you want to query metrics, specify the metric in the panel. Use free text to search for a metric of your choice. As you do so, all relevant metrics will appear. Hover over any metric to view its metadata labels. Hover over a label to see its values.

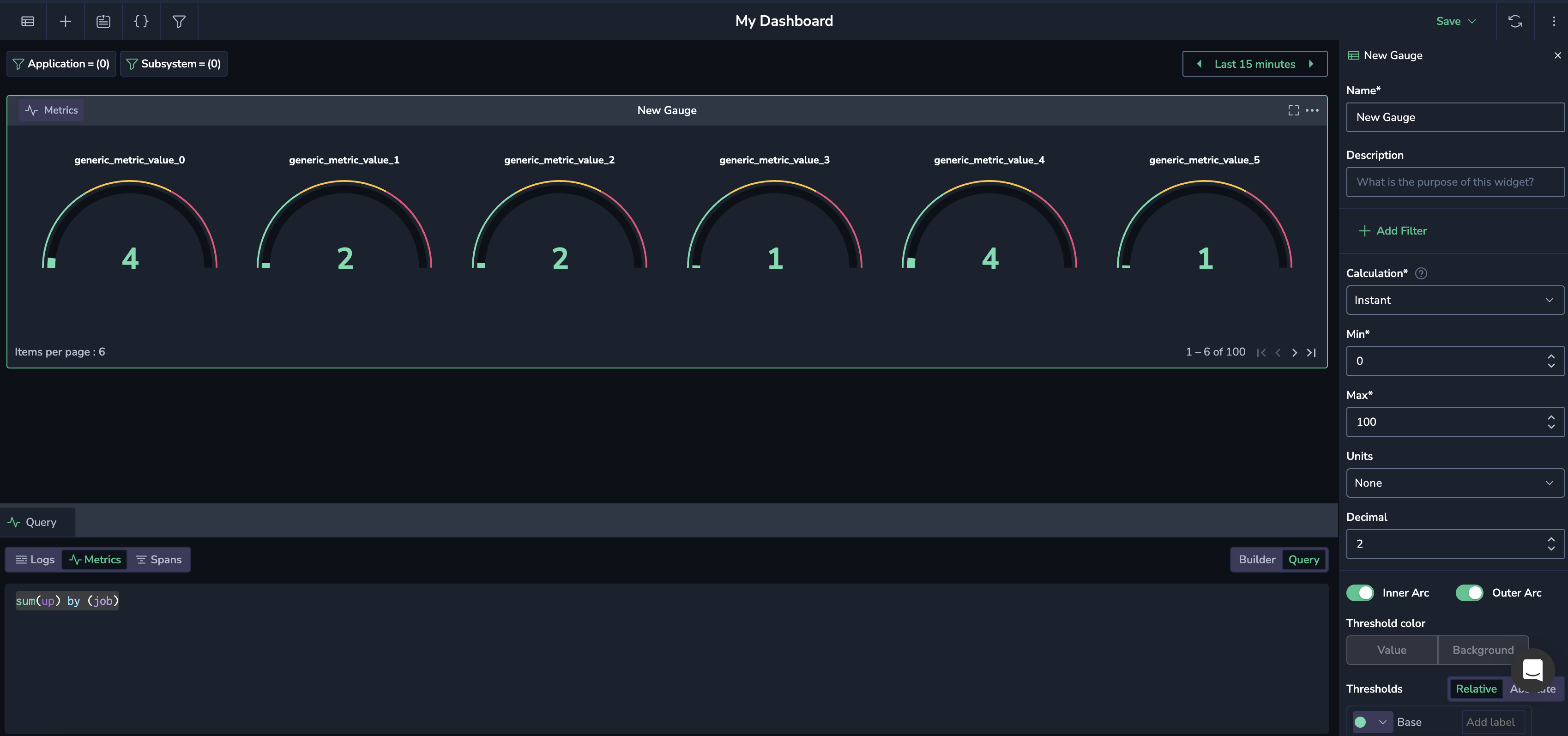

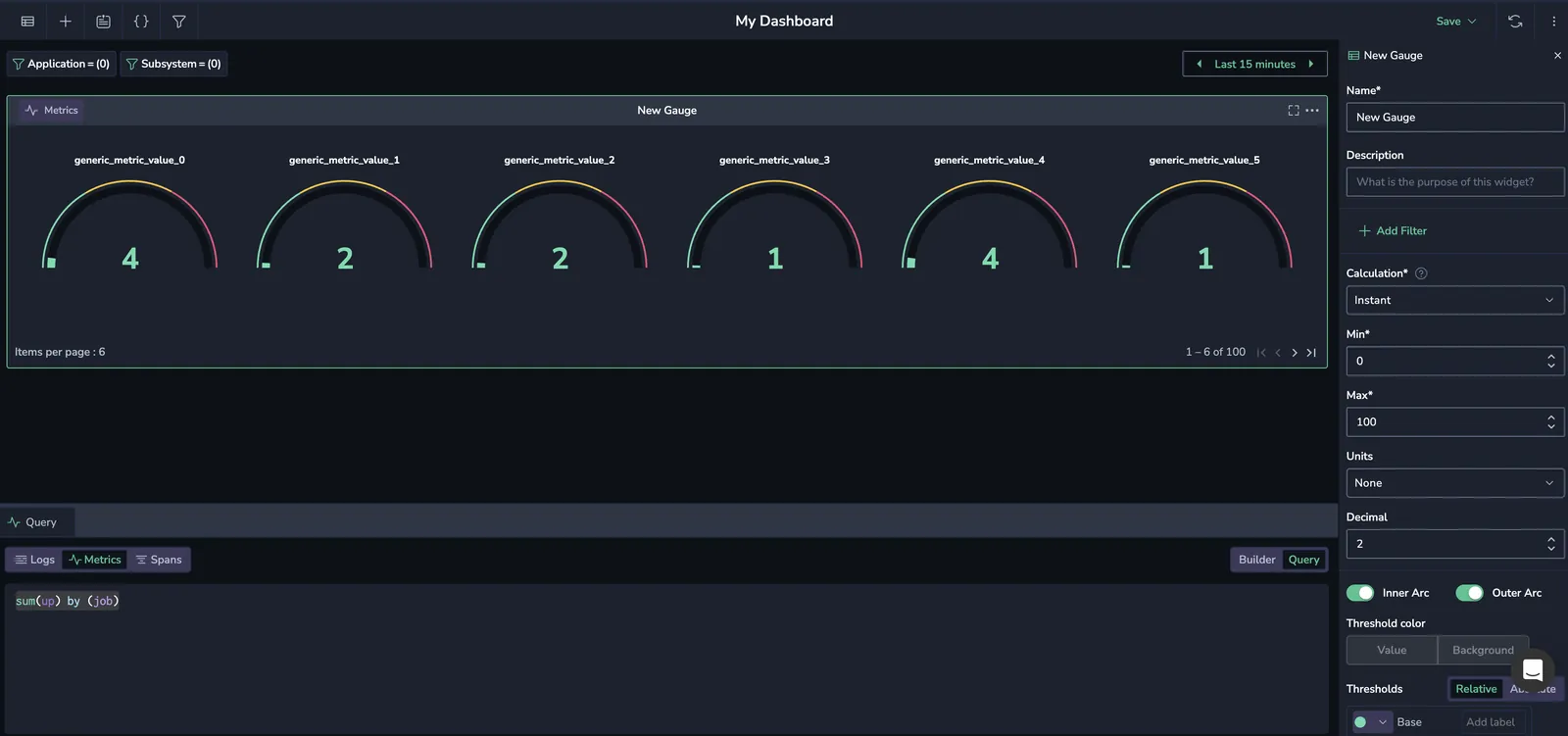

To generate multiple gauges, incorporate the group by functionality in your query.

Select a data pipeline

Select whether to load data from Frequent Search or Monitoring pipelines. Find out more here.

Define your gauge parameters

Define the parameters for your gauge in the right-hand sidebar.

Name

Text entered in this field appears at the top of your panel in the panel editor and above the widget in the dashboard.

Description

Text entered in this field appears in a tooltip in the upper-left corner of the panel. Add a description to a panel to share important information with your team, such as its purpose.

Choose filter

[Optional] Add a filter specific to the widget to narrow down the data displayed in your gauge. Select a label and its corresponding value. Note that filters applied at the widget level work alongside dashboard filters. If conflicts exist, the dashboard filters take precedence over widget filters.

Data management

Aggregation. If you have chosen logs or spans as your data source, show an aggregated value using one of the following functions.

Calculation. If you have chosen metrics as your data source, show a calculated value using one of the following functions.

Legend type

Use the Legend by toggle to select legend type:

• Group - Legend based on the Group By values.
• Threshold - Legend based on thresholds.

Units management

• Min/Max. Set the minimum and maximum values used in percentage threshold calculations. You may choose to enter a static range of numbers or a range between 0-1 or 0-100.
• Units. Choose one of the unit types or create a custom unit. Custom units are not added to a list of units, but are saved with the specific widget.
• Decimal. Specify the number of decimals displayed in the calculated value, from 0 - 15.

Visual management

• Enable or disable the Inner arc and Outer arc. The inner arc displays the actual value for your query. The outer arc displays thresholds defined. If you choose not to enable either arc, the numerical result of your query will appear as a STAT widget without additional visualizations. In this case, you may determine whether the threshold color will be applied to the value or background.
• Threshold color. Set the color/s for the values and background in your visualization.

Thresholds

A threshold is a value you set for a number that, when met or exceeded, changes the visualization's appearance based on the query results. Choose the base Thresholds – that is, when the gauge should appear green and red. Add additional thresholds if necessary. You may choose between percentage or absolute numbers.

Set the following options:

• Value. This is the value that triggers the threshold. You can assign a specific color to this value.
• Labels. Add labels to each threshold. For example, you may choose the label "good" for the base green threshold.
• Threshold type. Choose between Absolute and Percentage.
  • Absolute: Defined by a specific number
  • Percentage: Relative to the minimum or maximum value (e.g., 80 percent)

Legend settings

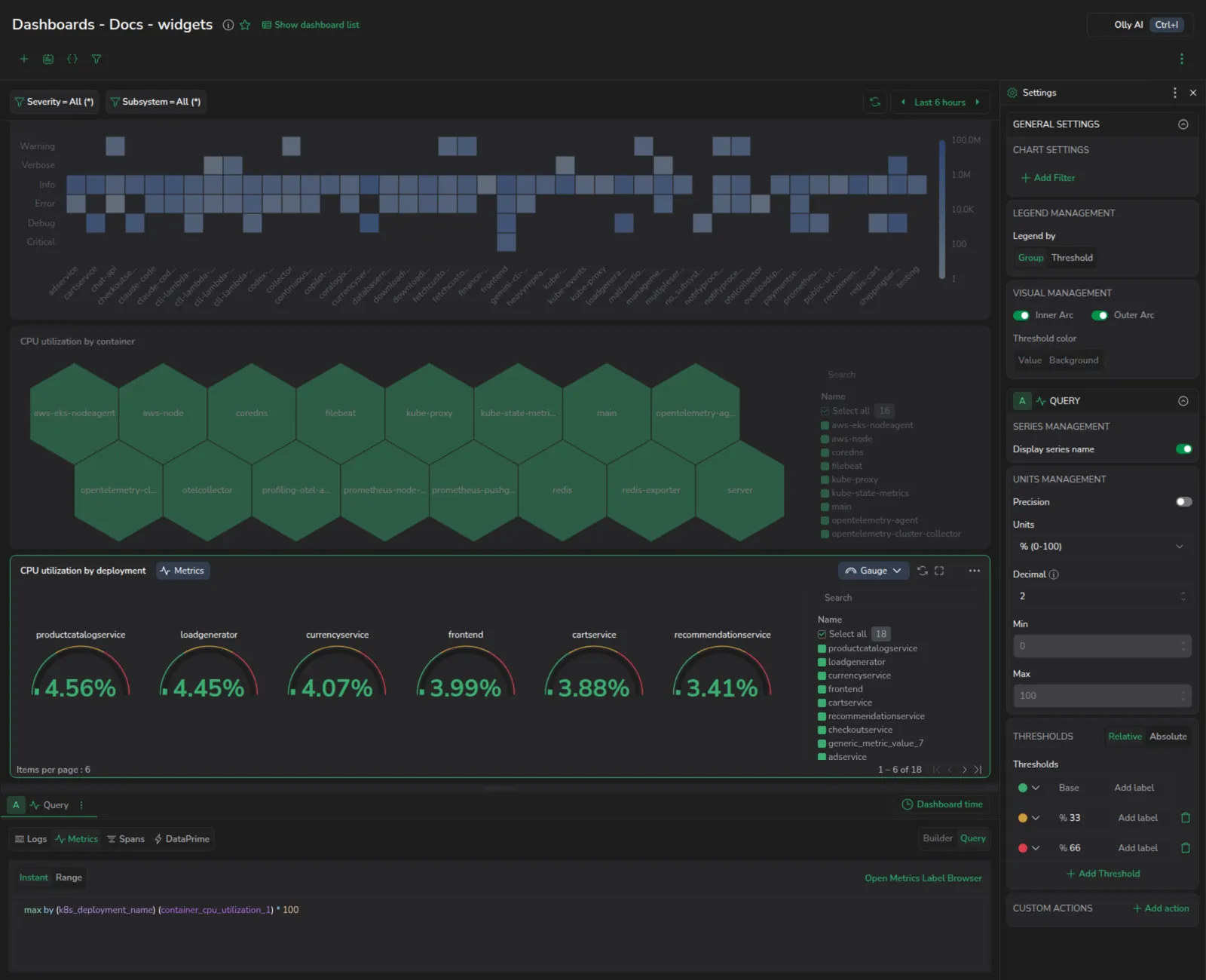

Configure legends to appear at the bottom or on the side of your widget, choose to show or hide a widget legend and define its columns.

1. Click on the ellipsis (…) at the top right corner of your dashboard and select Legend Settings.

2. Select the legend location (Side, Bottom), or hide it. Alternatively, set it to Auto to allow the UI to automatically determine the best legend placement. For smaller displays, the legend will appear at the bottom of the widget, while it will be positioned to the side for larger screens.



3. For side legends, you can define which value columns to display (Min, Max, Sum, Avg or Last).



Hide/show data series

In complex charts or graphs with multiple data series, you can remove unnecessary entries to achieve a cleaner and more focused dashboard.

1. In your widget legend, select a data series to display it or unselect it to hide. When hidden, the data series is removed from the view, but not from the underlying data.

2. Choose Select all to display all series or unselect it to hide all of them.
