Polystat Widget

The Polystat widget presents time series data in a hexagonal grid, where each hexagon represents an individual value sourced from logs, metrics, or spans. It enables grouping multiple values into a single, consolidated view, allowing you to display values simultaneously. For example, a user may configure the widget to track CPU usage across all pods in a system and set thresholds for what is critical, acceptable, or optimal.

A key feature of the Polystat widget is its threshold definition, which applies uniformly across all displayed values. These thresholds are specific values that, once met, trigger a color change in the hexagon, serving as an immediate visual alert for potential issues. For example, hexagons turning yellow or red highlight areas needing attention, helping users swiftly detect and address system performance concerns.

When dealing with high-cardinality data, where the number of values is especially large, opt for the Polystat over the Multi-Gauge widget.

Getting started

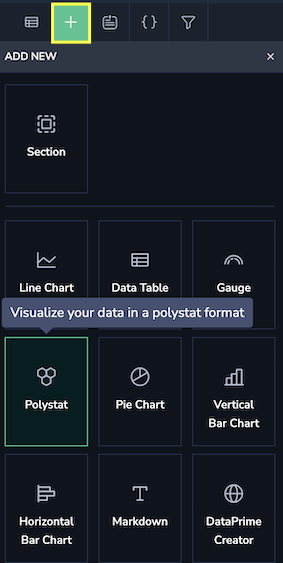

To add a widget to a custom dashboard, click the + icon. Then, drag and drop the Polystat widget from your left-hand sidebar.

Use the Query Builder to create a query

In the bottom panel, build your query using Query Builder.

Define your Polystat parameters

Define the parameters for your polystat widget in the right-hand sidebar.

Name

Text entered in this field appears at the top of your panel in the panel editor and above the widget in the dashboard.

Description

Text entered in this field appears in a tooltip in the upper-left corner of the panel. Add a description to a panel to share important information with your team, such as its purpose.

Group by

Group query results by a label or field value.

Legend by

Use the Legend by toggle to select legend type:

• Group - Legend based on the Group By values.
• Threshold - Legend based on thresholds.

Calculation

If you have chosen metrics as your data source, show a calculated value using one of the following functions.

Data management

• Min/Max. Set the minimum and maximum values used in percentage threshold calculations.
• Units. Choose one of the unit types or create a custom unit. Custom units are not added to a list of units, but are saved with the specific widget.
• Decimal. Specify the number of decimals displayed in the calculated value, from 0 - 15.

Thresholds

A threshold is a value you set for a number that, when met or exceeded, changes the visualization's appearance based on the query results. Choose the base Thresholds – that is, when the hexagons making up the widget should appear green and red. Add additional thresholds if necessary. You may choose between percentage or absolute numbers.

Set the following options:

• Value. This is the value that triggers the threshold. You can assign a specific color to this value.
• Labels. Add labels to each threshold. For example, you may choose the label “good” for the base green threshold.
• Threshold type. Choose between Absolute and Percentage.
  • Absolute: Defined by a specific number
  • Percentage: Relative to the minimum or maximum value (e.g., 80 percent)

Legend settings

Configure legends to appear at the bottom or on the side of your widget, choose to show or hide a widget legend and define its columns.

1. Click on the ellipsis (…) at the top right corner of your dashboard and select Legend Settings.

2. Select the legend location (Side, Bottom), or hide it. Alternatively, set it to Auto to allow the UI to automatically determine the best legend placement. For smaller displays, the legend will appear at the bottom of the widget, while it will be positioned to the side for larger screens.



3. For side legends, you can define which value columns to display (Min, Max, Sum, Avg or Last).



Hide/show data series

In complex charts or graphs with multiple data series, you can remove unnecessary entries to achieve a cleaner and more focused dashboard.

1. In your widget legend, select a data series to display it or unselect it to hide. When hidden, the data series is removed from the view, but not from the underlying data.

2. Choose Select all to display all series or unselect it to hide all of them.



Visualization

Hover over any hexagon in your Polystat to view the threshold label, value name, and query output.

Zoom in and out as needed.

Example use-case

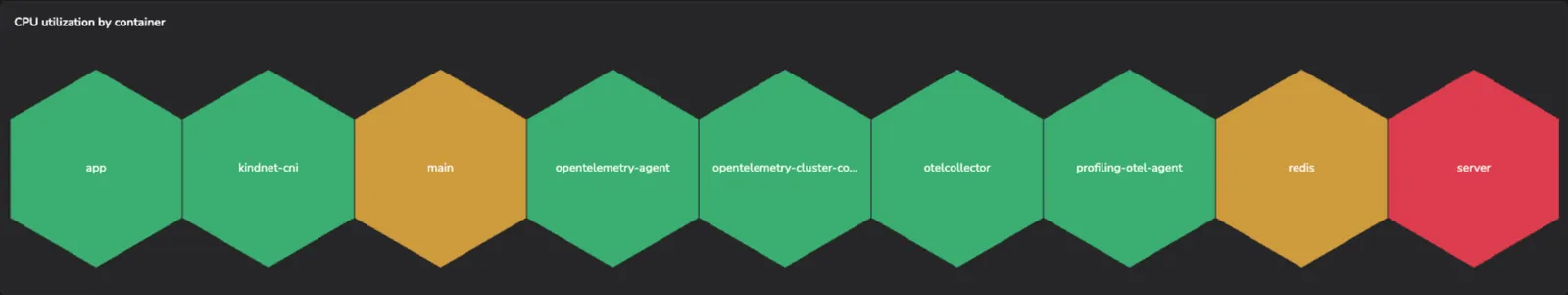

In this use-case, we’ll create a Polystat widget to monitor CPU utilization across Kubernetes containers, with each container’s CPU usage displayed in its own hexagon for an immediate snapshot of system health.

Why is CPU a good polystat candidate?

Polystat’s design is perfect for monitoring CPU usage because it displays each container’s CPU utilization in an individual, color-coded hexagon, providing instant visual insights across your system. This layout allows you to quickly identify overused or underutilized containers through configurable thresholds, making it easy to spot issues at a glance.

Polystat works best with high-cardinality metrics. It allows you to break down CPU usage by many labels (like namespace or pod), adding the context needed to monitor performance at scale in Kubernetes environments.

Monitoring CPU

Let’s create a CPU utilization polystat widget that gives a real-time view of how each container is performing.

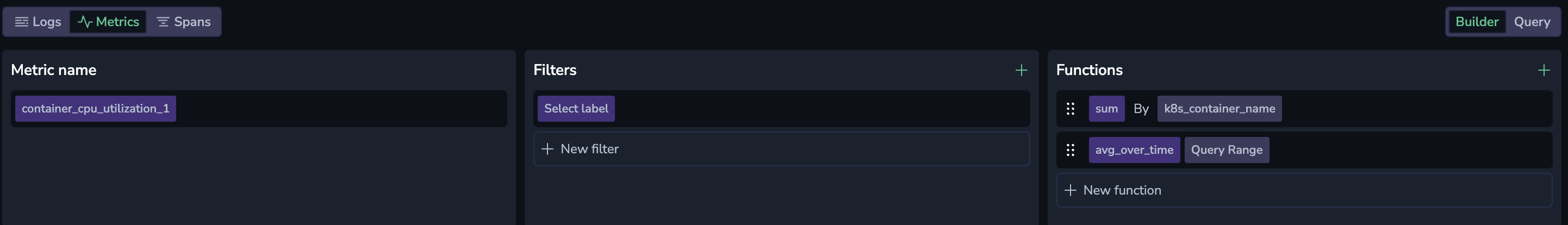

Step 1: Build Your Query

Start by adding the Polystat widget to your dashboard.

Once it’s in place, it’s time to build a query to pull in the CPU utilization data. For this, we’ll use Query Builder to fetch the relevant metrics.

Here’s a breakdown of how the query works:

1. Metric Source: We’re pulling data from container_cpu_utilization_1, which gives the CPU utilization percentage for each container.
2. sum by k8s_container_name: To make this data useful at the container level, we group by k8s_container_name and use sum. This lets us see the total CPU usage per container, not just per core or thread. By combining metrics this way, we get an easy-to-interpret view of how each container is performing in real time.
3. avg_over_time (Query Range): Using avg_over_time smooths out short-term spikes by averaging CPU usage over a specific time range. This way, instead of seeing a jagged, fluctuating number, you get a more stable view of how much CPU each container is actually using, which can reveal patterns or sustained high usage.

Of course, if you are interested in fluctuations in CPU, even short-lived ones, then average is not the best choice, and you should consider a quantile instead.

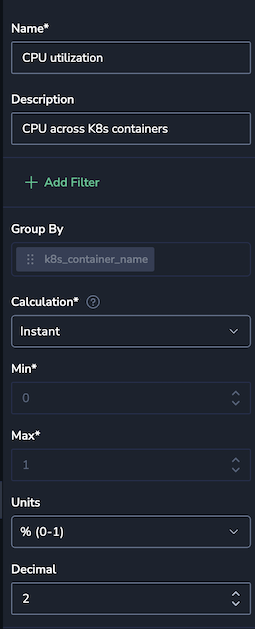

Step 2: Configure Widget Parameters

Once the query is set, you’re ready to define the widget parameters. This step ensures that your Polystat widget displays data in a useful and meaningful way.

Here’s what each parameter does:

• Group By: Grouping by k8s_container_name means each hexagon will represent CPU usage for a specific container. This setup gives you a color-coded breakdown of CPU utilization for each container at a glance.
• Calculation: Set to instant, so the widget pulls in the most recent data point for each container. This way, you’re seeing exactly what’s happening in real-time, which is ideal for spotting any container that’s currently under heavy load.
• Min and Max / Units: Setting the min to 0 and max to 1 (for 0% to 100% CPU utilization) defines the widget’s display range. Percentages are displayed with two decimal places, so you get an accurate view (e.g., 73.58%) without clutter.

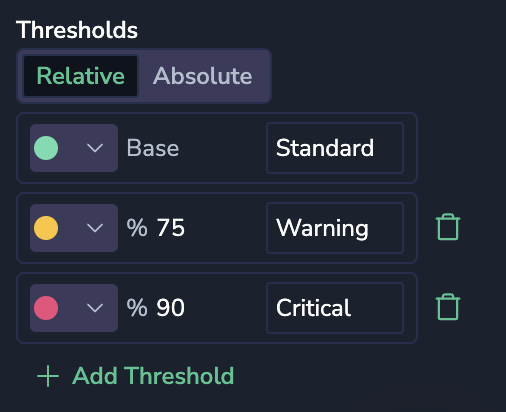

Step 3: Set Thresholds for real-time alerts

A core feature of Polystat is the ability to apply thresholds for any metric, log, or span value. Here we apply this feature to our mission of visualizing CPU utilization by color-coding based on CPU load, so you can instantly see if a container’s utilization is in the safe zone, trending high, or at a critical level.

Here’s how we’ll set it up:

• Green (Base): Below the first threshold, hexagons will be green, indicating CPU utilization is at a normal level.
• Yellow (Warning): Set to turn yellow at 75%, signaling a moderate CPU load.
• Red (Critical): At 90% or higher, hexagons turn red, flagging containers under high load that may need attention. At this level, the container is under high CPU load and may soon become bottlenecked. If containers hit this level frequently, they might need additional resources, or the workload may need to be redistributed.

This color-coding makes it easy to spot issues. You don’t have to sift through numbers; instead, a glance at the dashboard tells you where to focus.

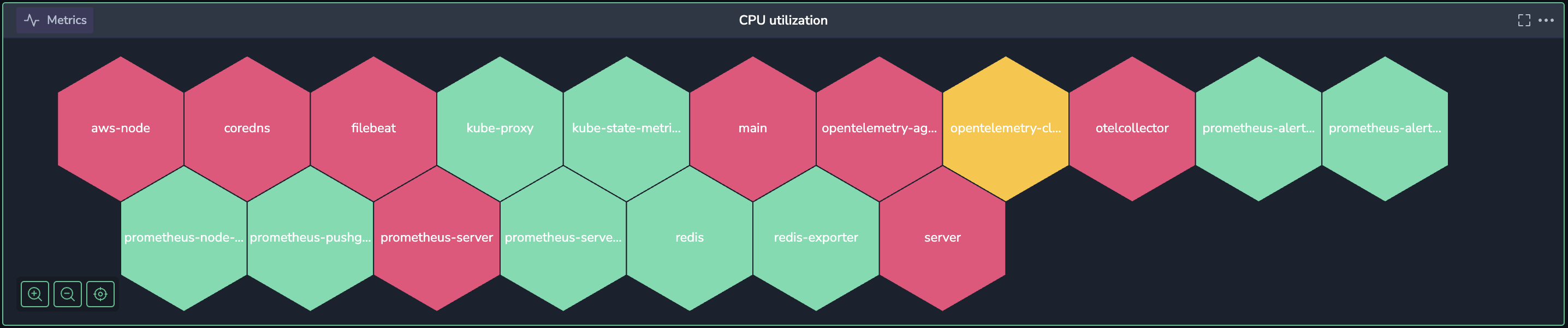

Step 4: Monitor and respond in real-time

With everything set up, your CPU Utilization Polystat widget is ready to roll! When you start seeing traffic spikes, you’ll get a real-time, color-coded view of CPU usage across your Kubernetes containers. Hovering over a hexagon reveals the exact CPU utilization for each container and the container’s name. For instance, if prometheus-server is showing a CPU usage of around 95% and is marked in red, you know it’s time to investigate or scale up.

With this dashboard, you can make quick, informed decisions, like:

• Scaling up resources for any container in the red zone to handle increased demand.
• Redistributing workloads across other containers to balance the load.
• Proactively monitoring yellow-labeled containers to catch potential issues before they reach critical levels.

Beyond day-to-day monitoring, you can analyze patterns over time. If certain containers, like filebeat or prometheus-server, consistently hit high CPU during peak periods, it might be worth exploring optimizations. Maybe that’s adjusting configurations, or maybe it’s refactoring code to make the container more efficient.

Wrapping up

With this Polystat widget, you’ve created a powerful tool that gives you a clear, real-time view of CPU usage across all your Kubernetes containers. No more guessing which containers might be under strain—you can see it all at a glance.

Whether you’re responding to sudden traffic spikes or analyzing trends for long-term optimizations, this setup helps your team keep applications running smoothly and efficiently, even under heavy load.
