Stat Widget

Display a single numeric or string value as a compact, standalone indicator on a Custom Dashboard. Use the Stat widget to surface the most important value from a query, a selected field, or a dashboard variable—without requiring a chart or gauge.

Each Stat widget presents a primary value and can optionally include a title and a label derived from value mappings. Color formatting applied to the value text or the widget background makes it easy to spot issues at a glance.

When a query returns multiple results, the widget displays each result as an independent stat element arranged in a row, with pagination controls to navigate large result sets.

What you need

• Access to Custom Dashboards in Coralogix.
• A query that returns at least one numeric or string value.

Set up

To add a Stat widget to a Custom Dashboard:

1. In Custom Dashboards, select Add widget.
2. Drag and drop the Stat widget from the sidebar into your dashboard.

Use the Query Builder to create a query

In the bottom panel, build your query using the Query Builder.

Define the widget parameters

Configure the widget in the settings panel.

General settings

Custom actions. Add custom actions to link to external resources or trigger workflows. Select + New action to configure.

Query parameters

Group by. Group query results by one or more label or field values. Each unique group is displayed as a separate stat element.

Units management. Control how values are displayed.

• Precision. Toggle on to display the raw, unrounded value returned by the query. When toggled off, the value is shortened and rounded based on the Decimal setting.

• Units. Select a unit type, such as ms, %, or bytes, or leave as None. Select Datetime ISO to convert a Unix timestamp or string value into a human-readable ISO 8601 date-time string. See Datetime ISO unit for supported input formats. Custom units are saved with the widget and are not added to the global unit list.

• Decimal. Set the number of decimal places to display, from 0 to 15.

Mapping and thresholds

Use mapping and thresholds to convert raw values into labels and to trigger visual formatting based on value ranges.

Auto min max from data. When enabled, the widget automatically detects the minimum and maximum values from your query results and uses them as the threshold baseline. Disable to set Min and Max manually.

Threshold type. Select how threshold values are interpreted:

• Relative: Thresholds are evaluated as percentages of the min-max range.
• Absolute: Thresholds are evaluated as exact numeric values.

Thresholds. Define color levels that trigger based on the query value:

1. Select + Add Threshold.
2. Enter the value or percentage that activates the threshold.
3. Optionally, enter a label for this level (for example, Good, Warning, or Critical).
4. Select a color to represent this level.

Mapping type. Translate raw values into human-readable labels or apply color overrides based on a specific pattern. Select the mapping type that matches your data:

• Range: Matches numeric values within a defined range. Useful for continuous metrics such as CPU usage or latency.

  Range	Label	Color
  0-30	Healthy	Green
  30-70	Warning	Yellow
  70-100	Critical	Red

• Value: Matches a specific exact value. Useful for categorical data such as severity levels or status codes.

  Value	Label	Color
  ERROR	Critical	Red
  WARN	Warning	Yellow
  INFO	Healthy	Green

• Regex: Matches values using a regular expression. Useful when values follow a structured naming convention.

  Pattern	Label	Color
  .*error.*	Error	Red
  .*warn.*	Warning	Yellow

For each mapping rule, assign a label and a color. The label appears as the label element in the widget when a match is found.

Color options

Select how the mapped color is applied to the widget:

• Value: Applies the color to the primary value text. Use this when multiple Stat widgets appear together and you want a subtle visual indicator.
• Background: Fills the entire widget background with the color. Use this when the widget functions as a status tile and you want the color to be immediately visible.
• Row: Applies the color to the entire row of stat elements. Use this when displaying grouped results and you want to highlight the row rather than individual values.

Stat visual management

Control what the widget displays and where each value comes from.

Primary value. Select the query field or aggregation result to display as the main value. Optionally, enter a Display name to override the field name shown in the widget.

Examples of primary value sources:

• {{count_0}}: the count returned by the first count() aggregation in the query (zero-based index)
• {{$m.severity}}: the severity metadata field from the query result
• ${pod.name}: the value of the pod.name dashboard variable

Title. Toggle on to display a title above the primary value. Select the source:

• Field or aggregation: Select a query field or aggregation result, and optionally enter a Display name to override the label.
• Mapped value: Uses the label from the mapping rule that matched the primary value. If no rule matches, the raw primary value is shown. To always show a mapped label, add a .* regex rule as a catch-all fallback.

Titles are useful for providing context, such as severity level, service name, or environment name.

Label. Toggle on to display a label below the primary value. Select the source:

• Field or aggregation: Select a query field or aggregation result, and optionally enter a Display name.
• Mapped value: Uses the label from the mapping rule that matched the primary value. If no rule matches, the raw primary value is shown. To always show a mapped label, add a .* regex rule as a catch-all fallback.

Multi-value display

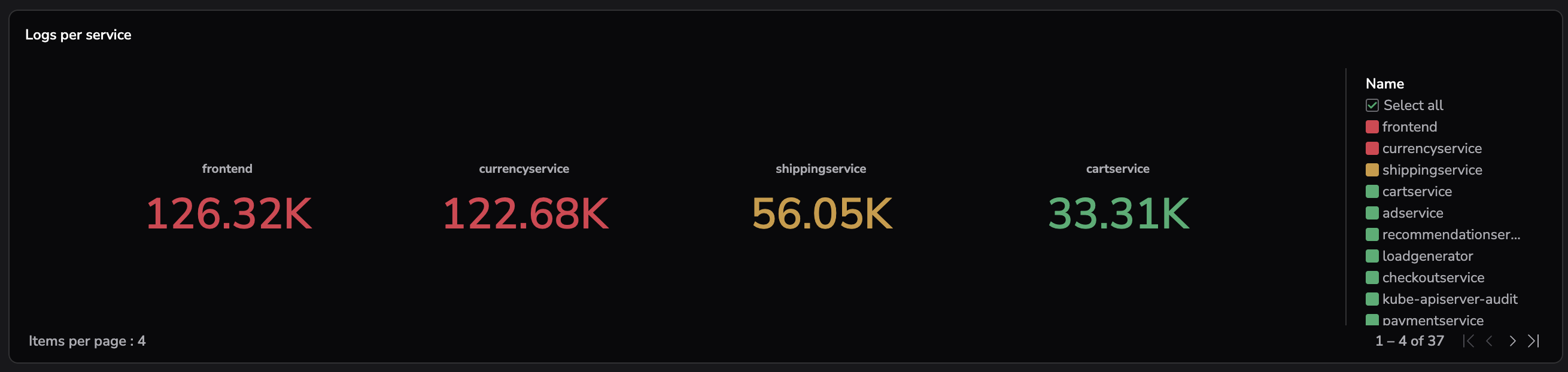

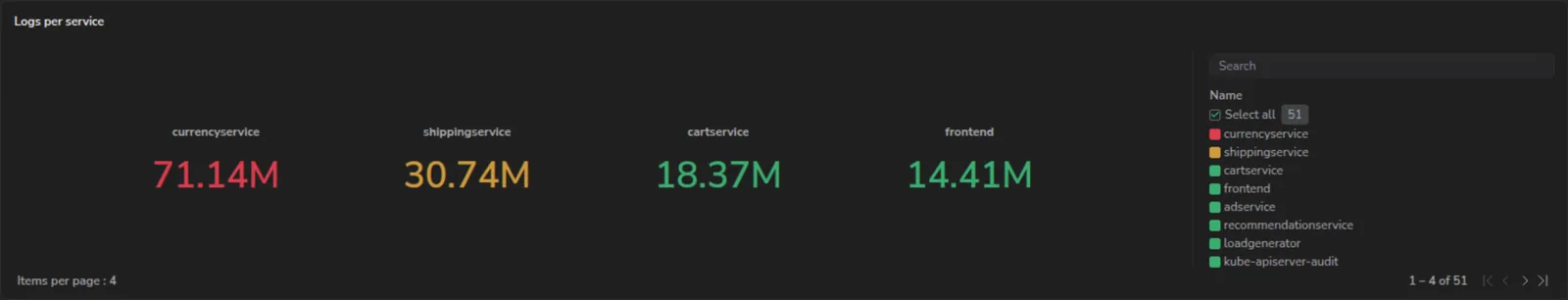

When your query returns multiple rows—for example, 1 result per pod or 1 result per service—the Stat widget displays each result as a separate stat element arranged in a row, with pagination to navigate across all results.

In this mode:

• Each stat element displays its own primary value.
• Title and label appear per element if configured.
• Color formatting is not applied to maintain visual consistency across elements.

To control how many stat elements appear per row, resize the widget horizontally.

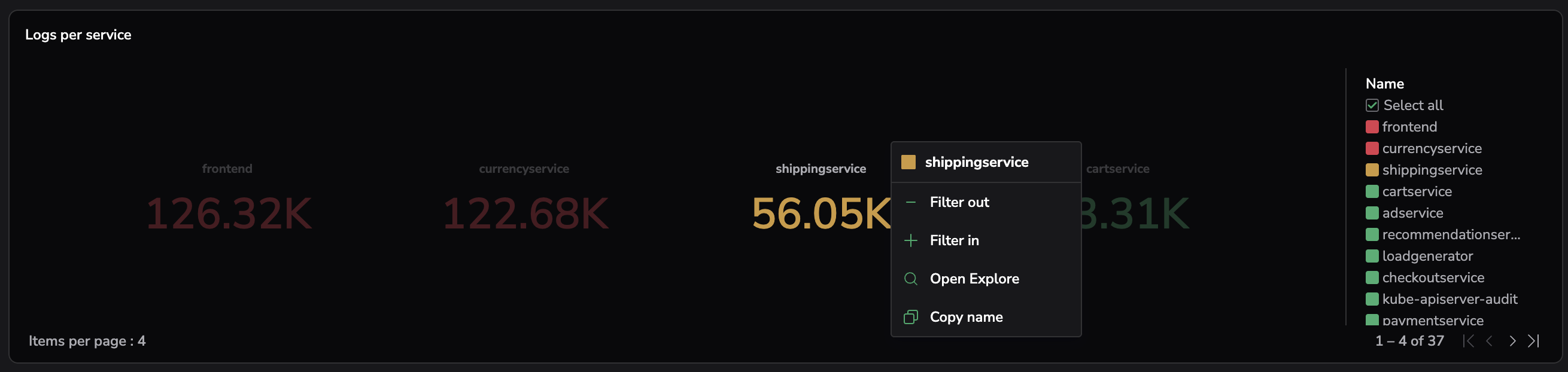

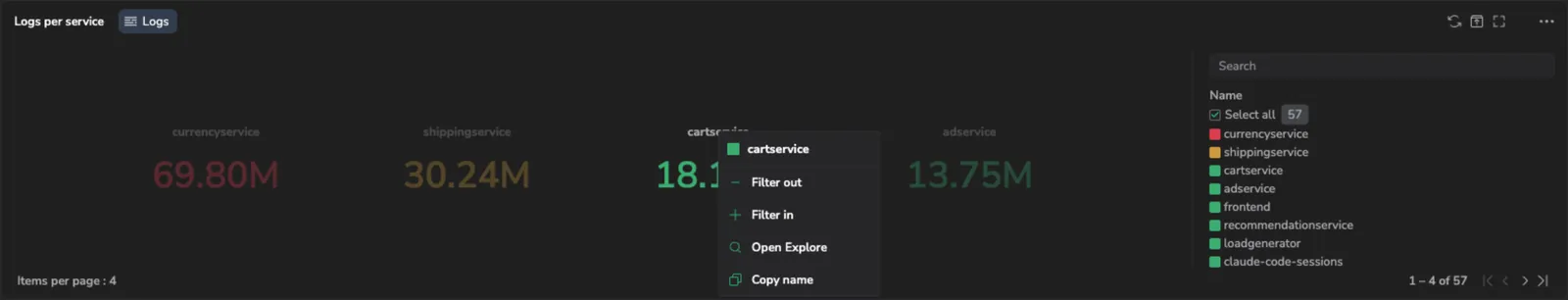

Selecting a stat element opens a context menu with the following options:

• Filter out: Excludes the selected value from the dashboard filter.
• Filter in: Restricts the dashboard to show only the selected value.
• Open Explore: Opens the value in Explore for deeper investigation.
• Copy name: Copies the element name to the clipboard.

Datetime ISO unit

The Datetime ISO unit converts a raw value into a human-readable ISO 8601 date-time string (for example, 2026-03-18T08:51:08.000Z). Select it from the Units dropdown under the DATETIME category.

The Datetime ISO unit accepts the following input formats:

Form	Example	Notes
Milliseconds	1710720000000	Since Unix epoch (Jan 1, 1970 UTC)
ISO 8601 string	"2024-03-18T12:00:00Z"	Preferred string format
RFC 2822 / informal string	"Mar 18, 2024"	Implementation-dependent; avoid

Coralogix recommends using Unix epoch milliseconds or ISO 8601 strings as inputs. RFC 2822 and informal date strings are implementation-dependent and might produce inconsistent results.

Example use case

The following example creates a Stat widget that monitors critical log volume in real time.

Step 1: Build the query

Add a Stat widget to your dashboard and build a query in the Query Builder to count critical severity logs:

source logs
| filter $m.severity == CRITICAL
| stats count()

The query returns a single count value: the number of critical log events in the selected time range.

Step 2: Configure the parameters

In the settings panel:

• Leave Group by empty, or add a field label to see counts per application.
• In Units management, set Units to None and Decimal to 0.

Step 3: Add a value mapping

In the Mapping tab, select Range and define the following rules:

Range	Label	Color
0-0	Healthy	Green
1-100	Elevated	Yellow
101+	Critical	Red

Step 4: Set the color mode

Under Color options, select Background so the widget background changes color based on the threshold.

Step 5: Configure the display

Under Stat visual management:

• Set Primary value to {{count_0}}.
• Toggle on Title and set it to {{$m.severity}} to show the severity level.
• Toggle on Label to display the mapped label (for example, Healthy, Elevated, or Critical).

The widget now displays the current count of critical logs with a color-coded background that immediately signals system health.
