Get started with Explore spans

This quickstart walks you through a complete investigation flow for spans and traces—from choosing a tab and time range to filtering, aggregating, and drilling into a single span. Use this guide when you need to find the span or trace responsible for a latency spike, error, or unexpected behavior in your system. Follow the steps in order to get familiar with the key features.

What you'll find

This article set includes:

• Explore common components
• Spans, Traces, and Flows
• Query builder for spans

Step 1: Open Explore

Navigate to Explore from the Coralogix main menu.

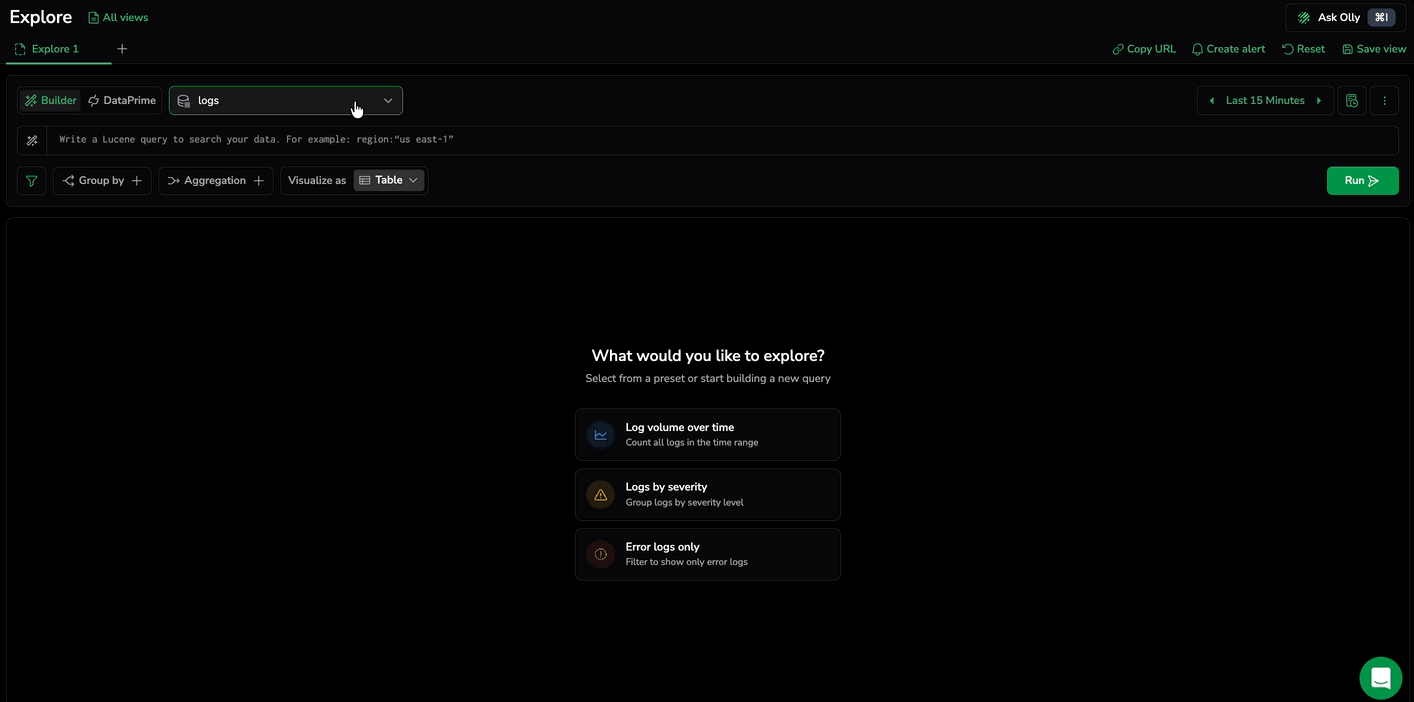

Explore opens on an empty state where you choose the view and dataset you want to start with.

Step 2: Select your data source

Use the dataset selector at the top of the screen to choose the dataset you want to query.

• Select logs to query your ingested log data.
• Select spans to query distributed tracing data.
• Select a system dataset to query Coralogix-managed metadata.

For this quickstart, keep the default spans dataset selected.

Step 3: Choose a tab — Spans vs. Traces vs. Flows

Use the tab bar at the top of the screen to decide which view fits your question.

• Spans (default): individual operations. Start here to find the specific span that explains a symptom.
• Traces: end-to-end requests. If you want to see the full request lifecycle, start with Traces. Use this tab to compare durations, error status, or service coverage across requests.
• Flows: service-to-service interactions as a map. Start here to understand how requests travel across your services.

For this quickstart, keep the default Spans tab selected.

Step 4: Set the time range

Use the time range control to set the window for your search.

1. Select the time range control in the top-right area of the screen.
2. Choose a preset such as Last 1 hour, or enter a custom range.
3. Confirm your selection.

The graph above the results table, the table itself, and the query builder all update to reflect the selected time range.

Step 5: Run a search

Use the search bar to filter the spans you want to investigate.

1. Select the search bar.
2. Type a Lucene query. For example: tags.error:"true".
3. Use the autocomplete suggestions to select fields and values without typing the full path.
4. Select Run.

Results appear in the spans table below.

Step 6: Filter with the side bar

Use the side filter bar on the left to narrow your results.

1. Open the side bar.
2. Find a field you want to filter on—for example, Service.
3. Expand the field to see its value distribution.
4. Select a value to add it as a filter.
5. Select Run to apply.

The filter appears in the query bar. The side bar and query bar stay in sync—changes in either place are reflected in the other.

Core filters at the top of the side bar include Service, Application, Subsystem, Operation name, and Span kind. Below Core, the side bar lists span fields grouped by OpenTelemetry semantic convention—HTTP, database, messaging, Gen AI, and more.

Step 7: Group and aggregate results

Use the query builder to move from raw spans to grouped summaries. Grouping is useful when you want to compare error rates or request counts across services without reading individual rows.

1. Select Group by and choose a field—for example, Service.
2. Select Aggregation, pick a field, and choose a function—count for any field, or avg, sum, min, max, or a percentile for numeric fields.
3. Select Run.

The results change from individual span rows to grouped rows with a count per service. Add Order by, Limit, or Having to refine the grouped view.

Use the Errors toggle and the Duration filter in the query builder to narrow grouped results to failing or slow operations.

Step 8: Read the count graph

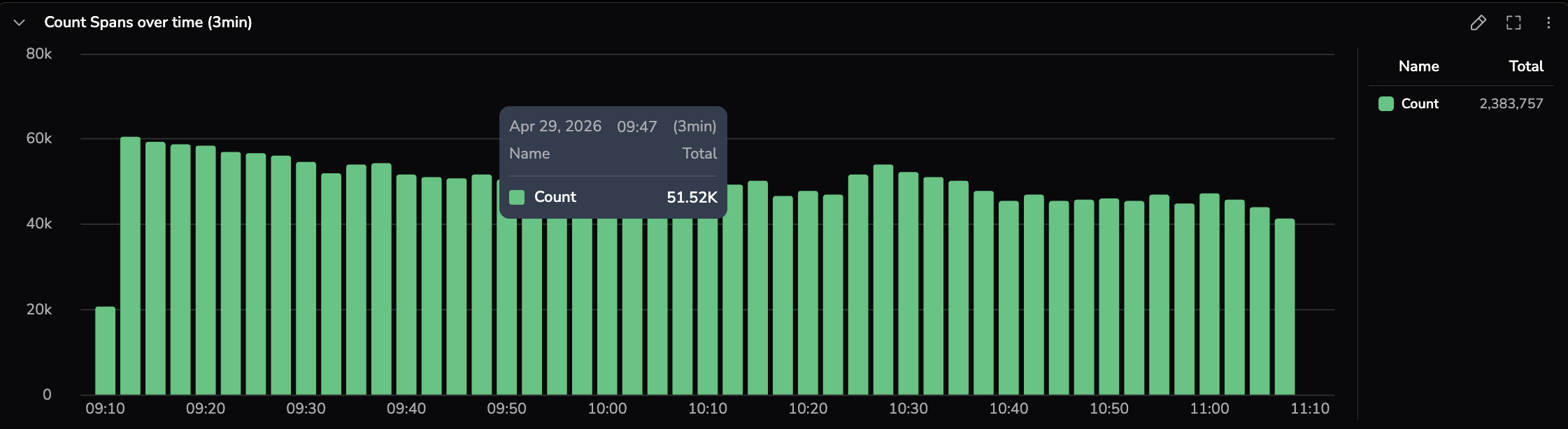

A Count Spans over time chart sits above the results table and updates with the active query and time range. Each bar shows the number of spans in a time bucket so you can spot volume trends before drilling into individual spans.

Hover any bar to inspect the count for that bucket, drag across a time window to zoom, or select a data point to include or exclude the value in the query and to open the drilldown drawer on a representative span.

Step 9: Inspect a span

Select any row in the spans table to open the drilldown drawer.

1. In the results table, select a span of interest.
2. The drilldown drawer opens on the right.

From the drawer you can:

• Review all fields and tags for the selected span.
• Switch between the Dependencies, Gantt, and Flame views to see how the span fits within its trace.
• Use field-level actions to include or exclude values in the query.
• Pivot to related data—logs, events, profiling, infrastructure, and AI sessions—while preserving the span's context and timeframe.

For the full reference, see Investigate with the span drilldown.

Common query examples

Try these queries to explore more.

Show only spans with errors:

tags.error:"true"

Filter by service:

coralogix.metadata.serviceName:"checkout-service"

Find spans longer than 100 ms in DataPrime:

source spans
| filter $m.duration > 100000000

Combine a service and an error filter:

coralogix.metadata.serviceName:"checkout-service" AND tags.error:"true"

Navigate back

Use the browser back button or the main menu to navigate away from Explore. Your current tab configuration is not saved automatically—select Save view from the action bar before navigating away if you want to return to this configuration.

Next steps

Get familiar with the shared building blocks of the Explore spans page in Explore common components.
