OpenTelemetry Lambda Auto Instrumentation

Coralogix offers coralogix-*-wrapper-and-exporter-* Lambda layers enable you to generate logs, metrics, and traces, providing insights into triggers, invocation times, and interconnections. These features work out-of-the-box, without requiring any modification of the monitored Lambda functions’ code. Once the configuration is complete, view your data using our cutting-edge Serverless Monitoring feature.

Notes:

This integration is one of two options – complete and basic – for monitoring Lambda, a requirement for enjoying Serverless Monitoring. This tutorial demonstrates how to set up Lambda monitoring to get complete telemetry, including traces.

To set up Lambda monitoring to get only basic telemetry, including logs, you are only required to set up the Coralogix AWS Lambda Telemetry Exporter. View the relevant documentation here.

Overview

The Lambda instrumentation layers (coralogix-*-wrapper-and-exporter-*) contain modified versions of OpenTelemetry Lambda auto instrumentation wrappers, bundled together with the Coralogix AWS Lambda Telemetry Exporter.

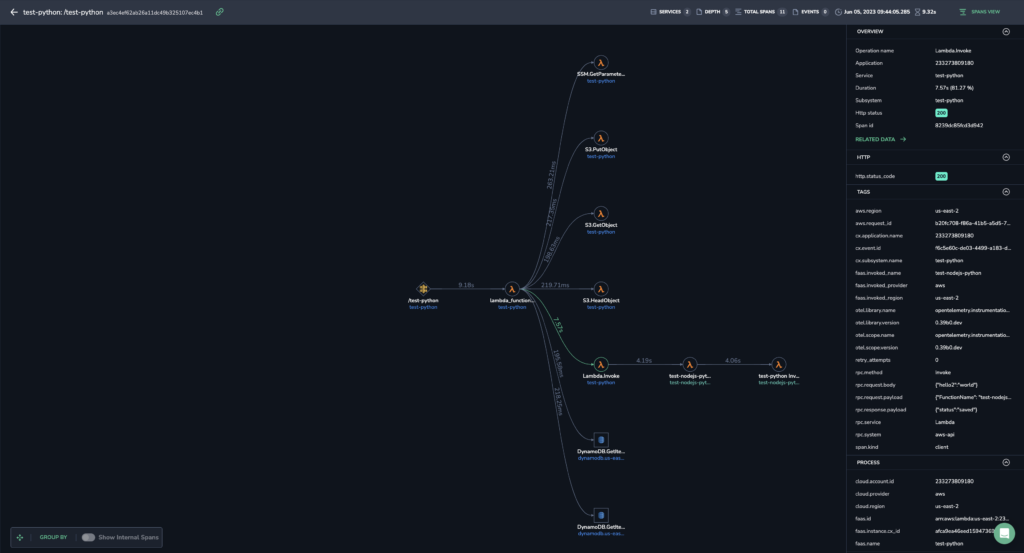

OpenTelemetry Lambda auto instrumentation wrappers instrument the handler function, AWS SDK, and other client libraries to produce traces out-of-the-box. They also provide a configured Otel SDK through which the function code can produce custom spans and metrics.

The telemetry produced by the auto instrumentation wrapper is forwarded to the Coralogix AWS Lambda Telemetry Exporter, which supplements it with information obtained from the Lambda Telemetry API and sends it all to Coralogix. Once fully set up, the auto instrumentation will produce traces, as shown below. The traces will help you discover:

• What invoked/triggered the lambda function
• What Lambda functions and other AWS services were called by the function
• How long did different parts of the invocation take

Set Up Lambda Monitoring

Follow these steps in order to monitor AWS Lambda functions with Coralogix.

STEP 1. Set up the Coralogix AWS resource metadata collection.

STEP 2. Set up the OpenTelemetry Lambda auto instrumentation, as described in this tutorial. This is available for Node.js and Python (v3.8 or newer). For other runtimes, opt for the Coralogix AWS Lambda Telemetry Exporter setup to view basic telemetry.

Amazon Resource Name

To deploy or update the Coralogix OpenTelemetry wrapper, select the Amazon Resource Name (ARN) corresponding to your AWS region, Lambda runtime and Architecture from the following lists.

Python x86_64

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-south-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-4:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-central-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-south-2:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:me-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7
arn:aws:lambda:il-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-x86_64:7

Notes:

• Python v3.8 and higher is supported. We recommend migrating away from Python 3.7 as it is scheduled for deprecation by AWS in November 2023.

Python arm64

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-python-wrapper-and-exporter-arm64:7

Notes:

• Python v3.8 and higher is supported. We recommend migrating away from Python 3.7 as it is scheduled for deprecation by AWS in November 2023.

Node.js x86_64

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-south-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:ap-southeast-4:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-central-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:eu-south-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:me-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7
arn:aws:lambda:il-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-x86_64:7

Node.js arm64

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-nodejs-wrapper-and-exporter-arm64:7

Java x86_64 (Beta)

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-south-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:ap-southeast-4:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-central-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:eu-south-2:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:me-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2
arn:aws:lambda:il-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-x86_64:2

Java arm64 (Beta)

arn:aws:lambda:ap-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-north-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-west-3:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-west-2:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-west-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-northeast-3:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-northeast-2:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-northeast-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ca-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:sa-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-southeast-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-southeast-2:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-central-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:us-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:us-east-2:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:us-west-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:us-west-2:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:af-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-east-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:ap-southeast-3:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:eu-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2
arn:aws:lambda:me-south-1:625240141681:layer:coralogix-java-wrapper-and-exporter-arm64:2

Configuration

In your AWS Management console, navigate to AWS Lambda.

STEP 1. Access the Lambda function that you would like to monitor. Check the list of Layers. If you already have a coralogix-aws-lambda-telemetry-exporter-* layer added, remove it. In the following steps, you will install a coralogix-*-wrapper-and-exporter-* layer that already contains the telemetry exporter.

STEP 2. Access the Lambda function that you would like to monitor. Select Layers > Add a layer

STEP 3. Specify an ARN by pasting one from the list above > Add

STEP 4. Access the Lambda function that you would like to monitor and configure the environment variables: Configuration > Environment variables

• Set AWS_LAMBDA_EXEC_WRAPPER = /opt/otel-handler to enable the auto-instrumentation wrapper.
• Set CX_DOMAIN to the Coralogix domain within which you’ve set up your account. For example coralogix.us (do NOT add protocol, port, team name etc. to the domain).
• Set CX_API_KEY to the Coralogix Send-Your-Data API key.
• Set CX_REPORTING_STRATEGY = REPORT_AFTER_INVOCATION
  • If the function is invoked frequently consider setting it to LOW_OVERHEAD instead.
  • See AWS Lambda Telemetry Exporter documentation to learn more about reporting strategies.

STEP 5. [Optional] Fine-tune the telemetry-exporter to match your preferences. See all available configuration options here.

Validation

Assuming you’ve already configured the Coralogix AWS resource metadata collection, you’re ready to take advantage of the Serverless Monitoring feature. Validate that your setup works.

STEP 1. Invoke the function.

STEP 2. In your Coralogix navigation pane, click APM. Select the Serverless tab. Click on the function of interest.

STEP 3. View Lambda invocations in the INVOCATIONS table.

Note: It may take up to 1 minute for your telemetry to be fully processed.

STEP 4. Click on an invocation to drill down using our Spans View.

Additional Resources

Support

Need help?

Our world-class customer success team is available 24/7 to walk you through your setup and answer any questions that may come up.

Feel free to reach out to us via our in-app chat or by sending us an email at [email protected].
