Back to All Docs

SSO with SAML SSO with SAML

Last Updated: Mar. 18, 2024

Coralogix provides full SAML 2.0 support so you can integrate with your chosen IdP and manage your Coralogix users’ SSO login in a centralized way. Here you can find the walkthrough process for integrating with the common IdP’s in the market, don’t hesitate to contact us via the chat bubble within our web app if you have any questions or comments.

Notes:

  • If you intend to follow this integration with a SCIM one please add the users through SCIM and make sure that any existing users are deleted before undertaking the SCIM integration. If necessary, you may leave one admin user.
  • Upon completion of the SCIM integration, recreate all users through SCIM.

Common IdP’s for SAML Integration:

  1. Google
  2. OneLogin
  3. Okta
  4. Azure
  5. JumpCloud

Integrate with Google as a SAML IdP

View dedicated Google instructions here.

Integrate with OneLogin as a SAML IdP

EU1 Region

These instructions apply only to EU1 region-based users. Integration instructions for all other regions can be found in the following section.
Navigate to your administration panel and navigate to applications. Click on Add App button and choose Coralogix:

coralogix one login saml

Choose a name to display (default is Coralogix), add a description if you’d like, and Save.

coralogix one login saml display

Coralogix also supports IdP initiated flow so you will be able to connect to Coralogix directly from your Onelogin App portal. To enable, once our connector is saved, go to Configuration and insert your Coralogix account company Id (in your Coralogix account, go to settings –> send your data) into the RelayState dialog box. Click Save:

coralogix one login saml relay state config

Download the SAML Metadata XML file:

coralogix one login saml download xml metadata

Upload the metadata file to our web app -> Settings -> Configure SAML:

Upload xml metadata in Coralogix

Non-EU1 Region Users

Navigate to Applications and select Add App.

Search for and select SAML Test Connector (IdP).

Navigate to Configuration and input the details as in the following example. This particular example is for an EU2-based team.

Click SAVE. The newly prepared XML configuration may be uploaded to the relevant Coralogix team.

Integrate with Okta as a SAML IdP

Note! We strongly recommend setting up your Okta SSO using SCIM rather than SAML.

Enter your Okta admin panel –> Applications –> Add application. Search for ‘Coralogix’ app and click ‘add’:

searching coralogix as saml app in okta

Go to General Settings and click done:

adding coralogix as a saml app

Click on ‘view setup instructions’ and follow the manual to finish the setup:

okta manual to finish set coralogix as okta saml app

Coralogix also supports IdP initiated flow so you can connect to Coralogix directly from your Okta apps dashboard. To set this, click on the Edit button and add your Coralogix team Company Id (You can retrieve it from the settings –> ‘send your data’ tab on the top left) into the Default Relay State box. Click Save.

Edit coralogix SAML app in OKTA to enable Idp initiated flow
Adding relay state to coralogix SAML app in OKTA to enable Idp initiated flow

Default Relay State is the company ID which you can find under settings>send your data.

Coralogix account company id

Integrate with Azure as a SAML IdP

STEP 1. Enter https://portal.azure.com/.

STEP 2. After logging into Azure, go to ‘Azure Active Directory’ tab.

STEP 3. Select ‘Enterprise applications’ service.

STEP 4. Choose ‘New application’.

STEP 5. Choose ‘Non-gallery application’.

STEP 6. Name it (for example, CoralogixSSO) and click ‘Add’.

STEP 7. Go to ‘Configure single sign-on’.

STEP 8. Select ‘SAML-based Sign-on’ as the SSO mode
saml_based_sign_on azure config

STEP 9. Next, you will need to add Coralogix service provider details to the configuration in Azure as follows:
From our web app -> Settings -> Configure SAML:
    * Service Provider Entity ID/Audience

    * Assertion Consumer Service URL

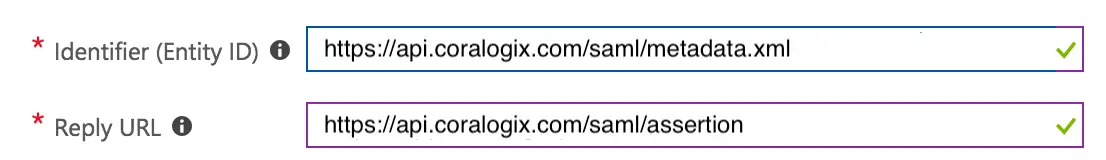

In the Azure portal (example paths):
set_sso_values_azure

STEP 10. If you would like to log in to a specific Coralogix team or account from your Azure SSO app directly, add the Coralogix team name to the Relay State option, as part of your basic SSO configuration.

STEP 11. Choose ‘user.mail’ as the value for ‘User Identifier’
user_identifier_sso_config

STEP 12. At the bottom of the page on step 5 click on ‘Configure CoralogixSSO’

STEP 13. Scroll down to step 3 of the ‘Configure CoralogixSSO’ for SSO section, and download the file named ‘SAML XML Metadata’

STEP 14. Scroll up to the top of the ‘SSO Configuration section’ and click on ‘Save’

STEP 15. Upload the metadata file to our web app -> Settings -> Configure SAML:

Upload xml metadata in Coralogix

STEP 16. Click on the “Multiple teams” button to create a unique ID for the team.

Integrate with JumpCloud as a SAML IdP

JumpCloud supports both SP and IdP initiated flows. Here’s the procedure to configure the integration:

Locate the Coralogix Service Provider configuration:

  1. Log in to your Coralogix team. Navigate to Account settings.
  1. Go to “Configure SAML” tab:
    1. Download the Service Provider Metadata file from the  URL and save it to your PC
    2. Copy the values of following parameters:
      1. SP / Entity-Id (Multiple Teams)
      2. Assertion Consumer Service (ACS) URL
  1. Go to “Send your data” tab:
    1. Copy the Company id

JumpCloud configuration:

  1. On your JumpCloud account. Navigate to User Authentication -> SSO
  2. Create a new custom SAML App
  1. On the “General Info” tab, for the Display Label enter “Coralogix
  1. Go to the “SSO” tab. Enter the following parameters that were previously obtained from your Coralogix team (step 2 and 3):
    1. Service Provider metadata file
    2. SP Entity-Id
    3. ACS url
    4. RelayState (Coralogix Company-Id)
  1. Still on the “SSO” tab:
    1. For the IdP Entity ID, enter the value “JumpCloud
    2. For the SAMLSubject NameID Format, select the value “urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
  1. Go to the “User Group” tab and enable the app for All users. Activate the App.
  1. Select the Coralogix SSO app. Export the IdP metadata file.

Coralogix configuration:

  1. Upload the IdP metadata file (exported in step 10) to Coralogix
  1. Activate SAML

Login with SAML

After SAML has been activated for your account you may access it using SSO. Here is how it is done.

Enter Coralogix.com –> Login and insert your team name:

In the next window choose SSO login (for example, SIGN IN WITH GOOGLE) and you will be logged as a user.

If the username you used to login was used with Coralogix in the past (for example the administrator wanted to block the access and removed the username) then it will be required by the administrator to approve it. In that case a request was sent to your administrator, wait for his invitation email:

Join request received by the administrator:

coralogix sso request sent to admin

Administrator panel view after receiving join request from a user, click on ‘approve’ to send an invitation to the user:

coralogix admin panel receiving invite request

Invitation sent to you:

coralogix sso join request to user

Congrats, now you can enter Coralogix with SAML SSO:
